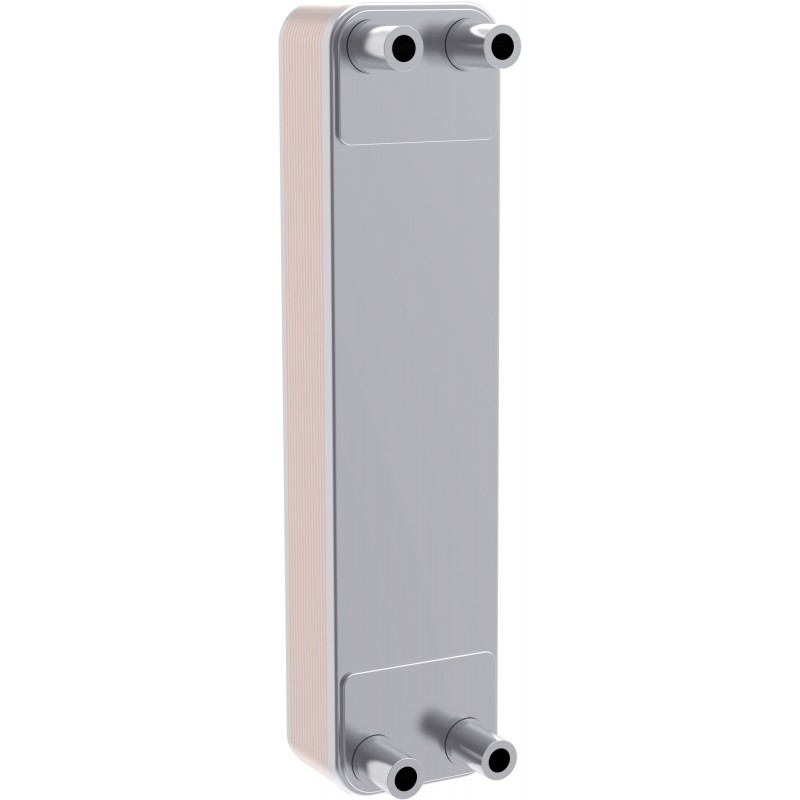

021H1200 DANFOSS REFRIGERATION Micro Plate heat exchanger
Reference: 021H1200
Manufacturer: DANFOSS REFRIGERATION
Description:
Micro Plate heat exchanger
Micro Plate heat exchanger, MPHE H22L-C
Categories:
- DANFOSS REFRIGERATION
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION
- More Info
- Reviews
* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.
Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.
LAST VIEWED
MORE INFO
Function: Condenser, Max working pressure [psi]: 696, Number of plates: 20, Brazing material: Copper brazing
Product details
| Gross weight | 1.854 Kg |
| Net weight | 1.645 Kg |
| Volume | 4.851 Liter |
| EAN | 5702425124815 |
| Gross weight | 1.854 Kg |
| Net weight | 1.645 Kg |
| Volume | 4.851 Liter |
| EAN | 5702425124815 |
| Application | Heat pump application |
| Approval | EAC LLC CDC EURO-TYSK |
| Brazing material | Copper brazing |
| Design temperature range [°C] [max] | 200 °C |
| Design temperature range [°C] [min] | -196 °C |
| Design temperature range [°F] [max] | 320 °F |
| Design temperature range [°F] [min] | -390 °F |
| EU RoHS compliance | Yes |
| Function | Condenser |
| H1 conn. size | R1 1/2 |
| In scope of WEEE and contain batteries | No |
| Max working pressure [psi] | 696 psi |
| Max. Working Pressure [bar] | 48 bar |
| Model no. | 22 |
| Number of plates | 20 |
| Packing format | Single pack |
| Plate material no. | AISI 316L |
| Plate material no. | AISI 316L |
| Plate pattern | Symmetric pattern, type M |
| Product group | Heat exchangers |
| Product Name Description | Micro Plate heat exchanger |
| Q1 conn. size range | G3/4 |
| Q1 conn. type | G External thread connection |
| Q2 conn. size range | G3/4 |
| Q2 conn. type | G External thread connection |
| Q3 conn. size range | 3/8 in |
| Q3 conn. type | Solder connection |
| Q4 conn. size range | 1/2 in |
| Q4 conn. type | Solder connection |
| Quantity per packing format | 1 pc |
| REACH Candidate List substances | No |
| Refrigerants | R1233zd can't be used R1233ze can't be used R1270 R1336mzz(Z) R134a R22 R290 R290A can't be used R32 R404A R407A R407C R407F R410A R422B R422D R438A R444B R448A R449A R449B R450A R452A R454A R454B R454C R513A R513B R515A R600a |
| Type | MPHE H22L-C |
| Type designation | H22L-C |
| Application | Heat pump application |
| Approval | EAC LLC CDC EURO-TYSK |
| Brazing material | Copper brazing |
| Design temperature range [°C] [max] | 200 °C |
| Design temperature range [°C] [min] | -196 °C |
| Design temperature range [°F] [max] | 320 °F |
| Design temperature range [°F] [min] | -390 °F |
| EU RoHS compliance | Yes |
| Function | Condenser |
| H1 conn. size | R1 1/2 |
| In scope of WEEE and contain batteries | No |
| Max working pressure [psi] | 696 psi |
| Max. Working Pressure [bar] | 48 bar |
| Model no. | 22 |
| Number of plates | 20 |
| Packing format | Single pack |
| Plate material no. | AISI 316L |
| Plate material no. | AISI 316L |
| Plate pattern | Symmetric pattern, type M |
| Product group | Heat exchangers |
| Product Name Description | Micro Plate heat exchanger |
| Q1 conn. size range | G3/4 |
| Q1 conn. type | G External thread connection |
| Q2 conn. size range | G3/4 |
| Q2 conn. type | G External thread connection |
| Q3 conn. size range | 3/8 in |
| Q3 conn. type | Solder connection |
| Q4 conn. size range | 1/2 in |
| Q4 conn. type | Solder connection |
| Quantity per packing format | 1 pc |
| REACH Candidate List substances | No |
| Refrigerants | R1233zd can't be used R1233ze can't be used R1270 R1336mzz(Z) R134a R22 R290 R290A can't be used R32 R404A R407A R407C R407F R410A R422B R422D R438A R444B R448A R449A R449B R450A R452A R454A R454B R454C R513A R513B R515A R600a |
| Type | MPHE H22L-C |
| Type designation | H22L-C |
