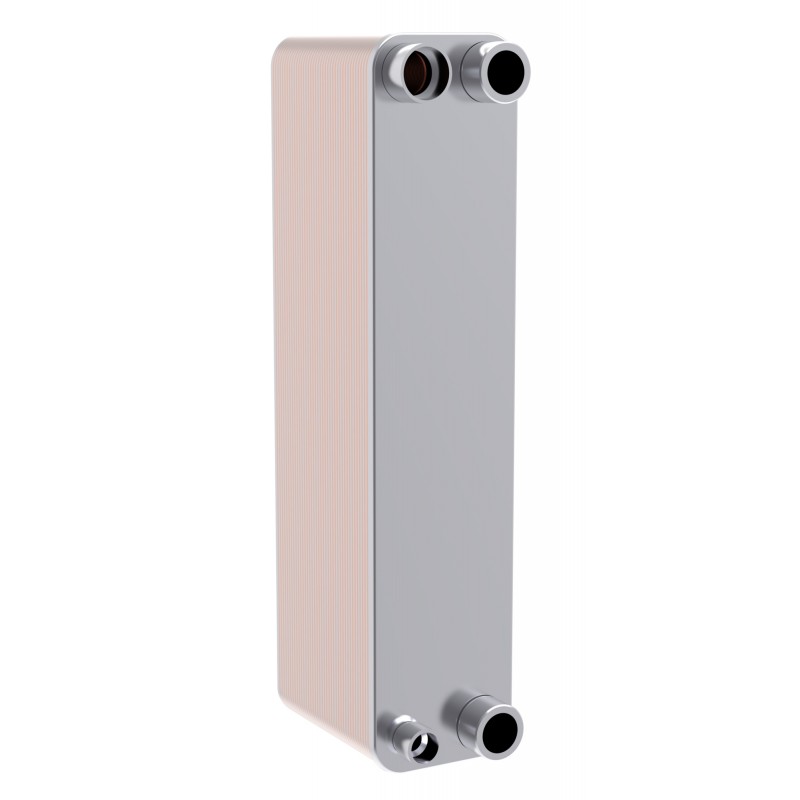

021H0887 DANFOSS REFRIGERATION Micro Plate heat exchanger D62-26 (STDPG)
021H0887
DANFOSS REFRIGERATION
Micro Plate heat exchanger D62-26 (STDPG)
Micro Plate heat exchanger, MPHE D62
Home > DANFOSS REFRIGERATION
* Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION
More info
▲Function: Universal, Max working pressure [psi]: 435, Number of plates: 26, Brazing material: Copper brazing
Product details
| Gross weight | 7.677 Kg |
| Net weight | 6.69 Kg |
| Volume | 14.7 Liter |
| EAN | 5702424273606 |
| Gross weight | 7.677 Kg |
| Net weight | 6.69 Kg |
| Volume | 14.7 Liter |
| EAN | 5702424273606 |
| Application | Universal |
| Approval | EAC UL AS CRN KRAIA PED RoHS UA UKCA |
| Brazing material | Copper brazing |
| Design temperature range [°C] [max] | 200 °C |
| Design temperature range [°C] [min] | -196 °C |
| Design temperature range [°F] [max] | 320 °F |
| Design temperature range [°F] [min] | -390 °F |
| Equipment | Stud |
| EU RoHS compliance | Yes |
| Function | Universal |
| In scope of WEEE and contain batteries | No |
| Max working pressure [psi] | 435 psi |
| Max. Working Pressure [bar] | 30 bar |
| Model No. | 62 |
| Number of plates | 26 |
| Packing format | Single pack |
| Plate material no. | AISI 316L |
| Plate material no. | AISI 316L |
| Plate pattern | M |
| Product group | Heat exchangers |
| Product Name Description | Micro Plate heat exchanger |
| Q1 conn. size range | G1 1/4 - 1 1/8 in |
| Q1 conn. type | External thread connection |
| Q2 conn. size range | G1 1/4 - 1 1/8 in |
| Q2 conn. type | External connection |
| Q3 conn. size range | G1 1/4 - 1 1/8 in |
| Q3 conn. type | External connection |
| Q4 conn. size range | G1 1/4 - 1 1/8 in |
| Q4 conn. type | G External thread connection |
| Quantity per packing format | 1 pc |
| REACH Candidate List substances | No |
| Refrigerants | R11 R113 R114 R12 R123 R1233zd(E) R1234yf R124 R134a R152a R22 R227ea R245fa R401A R402A R402B R404A R407A R407B R407C R407F R408A R409A R412A R413A R417A R422D R444B R448A R449A R450A R452A R454C R455A R500 R502 R507A R513A R515B R600a R508B R1233ze can't be used |
| Type | MPHE D62 |
| Type designation | D62 |
| Application | Universal |
| Approval | EAC UL AS CRN KRAIA PED RoHS UA UKCA |
| Brazing material | Copper brazing |
| Design temperature range [°C] [max] | 200 °C |
| Design temperature range [°C] [min] | -196 °C |
| Design temperature range [°F] [max] | 320 °F |
| Design temperature range [°F] [min] | -390 °F |
| Equipment | Stud |
| EU RoHS compliance | Yes |
| Function | Universal |
| In scope of WEEE and contain batteries | No |
| Max working pressure [psi] | 435 psi |
| Max. Working Pressure [bar] | 30 bar |
| Model No. | 62 |
| Number of plates | 26 |
| Packing format | Single pack |
| Plate material no. | AISI 316L |
| Plate material no. | AISI 316L |
| Plate pattern | M |
| Product group | Heat exchangers |
| Product Name Description | Micro Plate heat exchanger |
| Q1 conn. size range | G1 1/4 - 1 1/8 in |
| Q1 conn. type | External thread connection |
| Q2 conn. size range | G1 1/4 - 1 1/8 in |
| Q2 conn. type | External connection |
| Q3 conn. size range | G1 1/4 - 1 1/8 in |
| Q3 conn. type | External connection |
| Q4 conn. size range | G1 1/4 - 1 1/8 in |
| Q4 conn. type | G External thread connection |
| Quantity per packing format | 1 pc |
| REACH Candidate List substances | No |
| Refrigerants | R11 R113 R114 R12 R123 R1233zd(E) R1234yf R124 R134a R152a R22 R227ea R245fa R401A R402A R402B R404A R407A R407B R407C R407F R408A R409A R412A R413A R417A R422D R444B R448A R449A R450A R452A R454C R455A R500 R502 R507A R513A R515B R600a R508B R1233ze can't be used |
| Type | MPHE D62 |
| Type designation | D62 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| 021H0887 021H0887 ES_021H0882.pdf | 923 Kbytes |
 |
