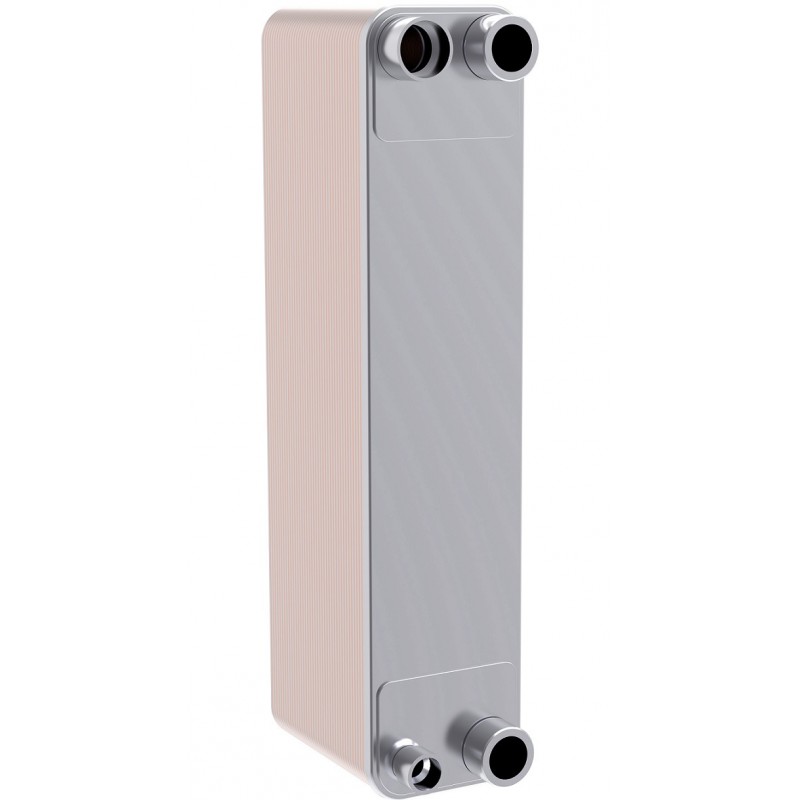

DANFOSS REFRIGERATION 021H0845 021H0845 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

021H0845 DANFOSS REFRIGERATION Micro Plate heat exchanger D62L-E-40 (STDPG)

Name: 021H0845 DANFOSS REFRIGERATION Micro Plate heat exchanger D62L-E-40 (STDPG)
Brand: DANFOSS REFRIGERATION
SKU: DAO021H0845
Price: 937.88 USD
Availability: OutOfStock

Reference: 021H0845

Manufacturer: DANFOSS REFRIGERATION

Description:

Micro Plate heat exchanger D62L-E-40 (STDPG)

Heat Exchanger D62L-E-40 (STDPG)

Micro Plate heat exchanger, MPHE D62L-E, Number of plates: 40

Categories:

DANFOSS REFRIGERATION

Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION

More Info
PDF
Reviews

Guarantee, repair and return.

Unit Price: 837,83 €

This price is per unit and is the net value (not including taxes if applicable).

Special discounts for registered customers.Login or register and prices will be updated.

Calculate price by quantity

Quantity	Price

Standard lead time: 4-5 days.

These delivery times are an estimate any may vary when the item order has been processed.
You will be notified of any change to delivery times once the order has been processed.
To this delivery time you have to add the time of transport from our logistics centre to your company.

MORE INFO

Max. Working Pressure [bar]: 45, Universal, Function: Evaporator, Brazing material: Copper brazing

Product details

Gross weight	10.108 Kilogram
Net weight	9.15 Kilogram
Volume	25.402 Liter
EAN	5702424274016

Type	MPHE D62L-E
Product group	Heat exchangers
Product Name Description	Micro Plate heat exchanger

Gross weight	10.108 Kilogram
Net weight	9.15 Kilogram
Volume	25.402 Liter
EAN	5702424274016
Type	MPHE D62L-E
Product group	Heat exchangers
Product Name Description	Micro Plate heat exchanger

Application	Universal
Approval	AS CRN EAC KRAIA PED RoHS UA UL
Brazing material	Copper brazing
China RoHS compliance	Yes
Contains batteries	No
Design temperature range [°C] [max]	200 °C
Design temperature range [°C] [min]	-196 °C
Design temperature range [°F] [max]	320 °F
Design temperature range [°F] [min]	-390 °F
Equipment	Stud
EU RoHS compliance	Yes
EU RoHS exemption clause	No
Function	Evaporator
Function note	With distributor
H1 conn. size	Null
H1 conn. type	Null
H2 conn. size	Null
H2 conn. type	Null
H3 conn. size	Null
H3 conn. type	Null
H4 conn. size	Null
H4 conn. type	Null
H5 conn. size	Null
H5 conn. type	Null
H6 conn. size	Null
H6 conn. type	Null
In scope of WEEE	No

Max working pressure [psi]	653 psi
Max. Working Pressure [bar]	45 bar
Model No.	62
Number of plates	40
Packing format	Single pack
PED category	II
Plate material no.	AISI 316L
Plate material no.	AISI 316L
Plate pattern	EM
Q1 conn. size range	1 1/4 - 1 1/8 in
Q1 conn. type	External thread connection
Q2 conn. size range	1 1/4 - 1 1/8 in
Q2 conn. type	External connection
Q3 conn. size range	1/2 in-12.15 mm
Q3 conn. type	Solder connection
Q4 conn. size range	3/4 in-18.15 mm
Q4 conn. type	Solder connection
Q5 conn. size range	Null
Q5 conn. type	Null
Q6 conn. size range	Null
Q6 conn. type	Null
Quantity per packing format	1 pc
REACH Candidate List substances	No
Refrigerants	R1233zd(E) R1234yf R134a R22 R245fa R290 R404A R407C R410A R444B R448A R449A R450A R452B R454B R454C R455A R507A R513A R515B R1234ze R454A
Type designation	D62L-E
UL mark	Yes

Application	Universal
Approval	AS CRN EAC KRAIA PED RoHS UA UL
Brazing material	Copper brazing
China RoHS compliance	Yes
Contains batteries	No
Design temperature range [°C] [max]	200 °C
Design temperature range [°C] [min]	-196 °C
Design temperature range [°F] [max]	320 °F
Design temperature range [°F] [min]	-390 °F
Equipment	Stud
EU RoHS compliance	Yes
EU RoHS exemption clause	No
Function	Evaporator
Function note	With distributor
H1 conn. size	Null
H1 conn. type	Null
H2 conn. size	Null
H2 conn. type	Null
H3 conn. size	Null
H3 conn. type	Null
H4 conn. size	Null
H4 conn. type	Null
H5 conn. size	Null
H5 conn. type	Null
H6 conn. size	Null
H6 conn. type	Null
In scope of WEEE	No
Max working pressure [psi]	653 psi
Max. Working Pressure [bar]	45 bar
Model No.	62
Number of plates	40
Packing format	Single pack
PED category	II
Plate material no.	AISI 316L
Plate material no.	AISI 316L
Plate pattern	EM
Q1 conn. size range	1 1/4 - 1 1/8 in
Q1 conn. type	External thread connection
Q2 conn. size range	1 1/4 - 1 1/8 in
Q2 conn. type	External connection
Q3 conn. size range	1/2 in-12.15 mm
Q3 conn. type	Solder connection
Q4 conn. size range	3/4 in-18.15 mm
Q4 conn. type	Solder connection
Q5 conn. size range	Null
Q5 conn. type	Null
Q6 conn. size range	Null
Q6 conn. type	Null
Quantity per packing format	1 pc
REACH Candidate List substances	No
Refrigerants	R1233zd(E) R1234yf R134a R22 R245fa R290 R404A R407C R410A R444B R448A R449A R450A R452B R454B R454C R455A R507A R513A R515B R1234ze R454A
Type designation	D62L-E
UL mark	Yes

DATASHEET - PDF

Title

Size

Type

021H0845 021H0845 ES_021H0882.pdf

790 Kbytes

PDF CATALOGUE DANFOSS REFRIGERATION AND AIRCONDITIONING EN

11 Mbytes
