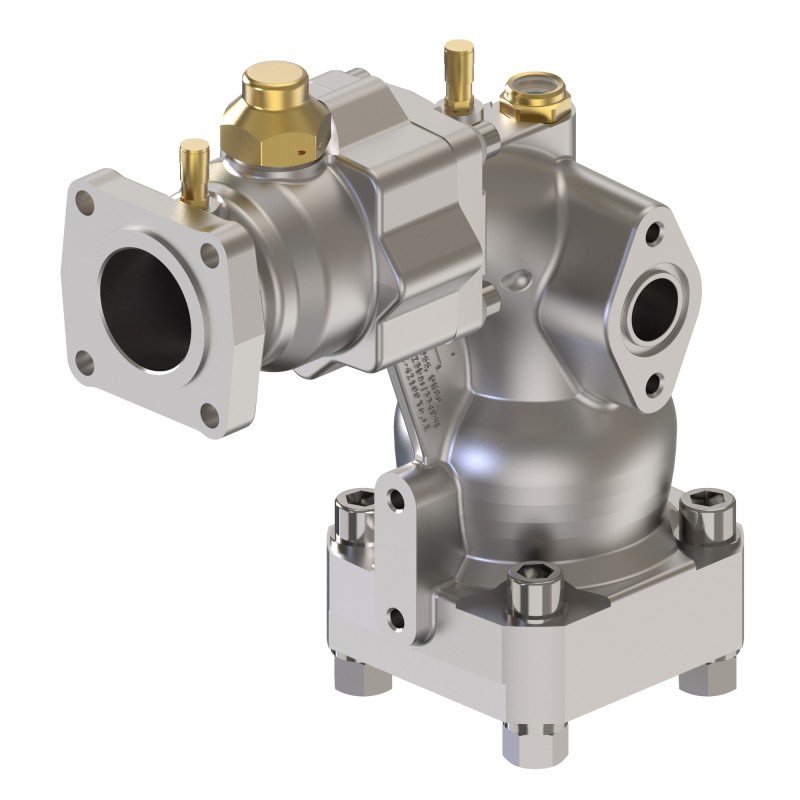

DANFOSS REFRIGERATION 020C5424 020C5424 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

020C5424 DANFOSS REFRIGERATION Check valve, OFC 80BC

Name: 020C5424 DANFOSS REFRIGERATION Check valve, OFC 80BC
Brand: DANFOSS REFRIGERATION
SKU: DAO020C5424
Price: 2609.88 USD
Availability: OutOfStock

Reference: 020C5424

Manufacturer: DANFOSS REFRIGERATION

Description:

Check valve, OFC 80BC

Categories:

DANFOSS REFRIGERATION

Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION

More Info
Reviews

Guarantee, repair and return.

Unit Price: 2.200,91 €

This price is per unit and is the net value (not including taxes if applicable).

Special discounts for registered customers.Login or register and prices will be updated.

Calculate price by quantity

Quantity	Price

Standard lead time: 4-5 days.

These delivery times are an estimate any may vary when the item order has been processed.
You will be notified of any change to delivery times once the order has been processed.
To this delivery time you have to add the time of transport from our logistics centre to your company.

LAST VIEWED

MORE INFO

Connection material: Aluminium, Direction: Angleway, Inlet connection type: Flange, Max. Working Pressure [bar]: 23, Used for product: TTH375; TTS350; TTS300; TGS230; TGH285; TGS310

Product details

Gross weight	16 Kilogram
Net weight	12.297 Kilogram
Volume	40.996 Liter
EAN	5715255026532

Type	OFC 80BC
Product group	Check valves
Product Name Description	Check valve

Gross weight	16 Kilogram
Net weight	12.297 Kilogram
Volume	40.996 Liter
EAN	5715255026532
Type	OFC 80BC
Product group	Check valves
Product Name Description	Check valve

Approval	CE cURus recognized
Ball valve ° (seen from elbow)	0°
Body material	Aluminium
China RoHS compliance	Yes with exemptions
China RoHS exemption clause	7.3
Connection material	Aluminium
Contains batteries	No
Cv value [gal/min]	312 gal/min
Design	Piston
Direction	Angleway
EU RoHS compliance	Yes with exemptions
EU RoHS exemption clause	6(c)
Flow direction	Single-flow
Flow direction indicator	Embossed 1-way arrow
Fluid Group	2
Ignition source assessment	No
Inlet connection type	Flange
Inlet size [in]	2 1/8 in
Inlet size [mm]	54 mm
Kv value [m³/h]	270 m³/h
Lubricants compatibility	Oilfree applications
Max. Working Pressure [bar]	23 bar
Max. Working Pressure [psig]	334 psig
Min. Pressure drop [bar]	0.005 bar

Min. Pressure drop [psi]	0.07 psi
Oil free refrigerants	R1234ze(E) R134a R513A R515B
Outlet connection type	Flange
Outlet size [in]	3 1/8 in
Outlet size [mm]	80 mm
Packing format	Single pack
Parts included	Flange kit
PED category	I
Product accessories	Check valve accessories
Quantity per packing format	1 pc
REACH Candidate List substances	Lead (CAS no. 7439-92-1)
Refrigerants	R1234ze(E) R134a R513A R515B
SCIP dossier no.	a7d4344b-ba97-4b6f-9f6f-78899065c5b4
SCIP dossier product name	OFC
Serviceable	Check valve spare parts
Side port quantity [pc]	2 pc
Spring color	Blue
Temperature range [°C] [max]	100 °C
Temperature range [°C] [min]	0 °C
Temperature range [°F] [max]	212 °F
Temperature range [°F] [min]	32 °F
UL approval file name	SA7200
UL approved refrigerants	R134a R513A R515B
Used for product	TGH285 TGS230 TGS310 TTH375 TTS300 TTS350

Approval	CE cURus recognized
Ball valve ° (seen from elbow)	0°
Body material	Aluminium
China RoHS compliance	Yes with exemptions
China RoHS exemption clause	7.3
Connection material	Aluminium
Contains batteries	No
Cv value [gal/min]	312 gal/min
Design	Piston
Direction	Angleway
EU RoHS compliance	Yes with exemptions
EU RoHS exemption clause	6(c)
Flow direction	Single-flow
Flow direction indicator	Embossed 1-way arrow
Fluid Group	2
Ignition source assessment	No
Inlet connection type	Flange
Inlet size [in]	2 1/8 in
Inlet size [mm]	54 mm
Kv value [m³/h]	270 m³/h
Lubricants compatibility	Oilfree applications
Max. Working Pressure [bar]	23 bar
Max. Working Pressure [psig]	334 psig
Min. Pressure drop [bar]	0.005 bar
Min. Pressure drop [psi]	0.07 psi
Oil free refrigerants	R1234ze(E) R134a R513A R515B
Outlet connection type	Flange
Outlet size [in]	3 1/8 in
Outlet size [mm]	80 mm
Packing format	Single pack
Parts included	Flange kit
PED category	I
Product accessories	Check valve accessories
Quantity per packing format	1 pc
REACH Candidate List substances	Lead (CAS no. 7439-92-1)
Refrigerants	R1234ze(E) R134a R513A R515B
SCIP dossier no.	a7d4344b-ba97-4b6f-9f6f-78899065c5b4
SCIP dossier product name	OFC
Serviceable	Check valve spare parts
Side port quantity [pc]	2 pc
Spring color	Blue
Temperature range [°C] [max]	100 °C
Temperature range [°C] [min]	0 °C
Temperature range [°F] [max]	212 °F
Temperature range [°F] [min]	32 °F
UL approval file name	SA7200
UL approved refrigerants	R134a R513A R515B
Used for product	TGH285 TGS230 TGS310 TTH375 TTS300 TTS350

DATASHEET - PDF

Title

Size

Type

PDF CATALOGUE DANFOSS REFRIGERATION AND AIRCONDITIONING EN

11 Mbytes
