![020B1054 DANFOSS REFRIGERATION Check valve, NRV 19s, Max. working pressure [bar]: 49 020B1054 Connected type..](https://www.electricautomationnetwork.com/1707871-large_default/020b1054-danfoss-refrigeration-check-valve-nrv-19s-max-working-pressure-bar-49-020b1054-connected-type.jpg "020B1054 DANFOSS REFRIGERATION Check valve, NRV 19s, Max. working pressure [bar]: 49 020B1054 Connected type..")
View larger
![020B1054 DANFOSS REFRIGERATION Check valve, NRV 19s, Max. working pressure [bar]: 49 020B1054 Connected type..](https://www.electricautomationnetwork.com/1707871-thickbox_default/020b1054-danfoss-refrigeration-check-valve-nrv-19s-max-working-pressure-bar-49-020b1054-connected-type.jpg "020B1054 DANFOSS REFRIGERATION Check valve, NRV 19s, Max. working pressure [bar]: 49 020B1054 Connected type..")

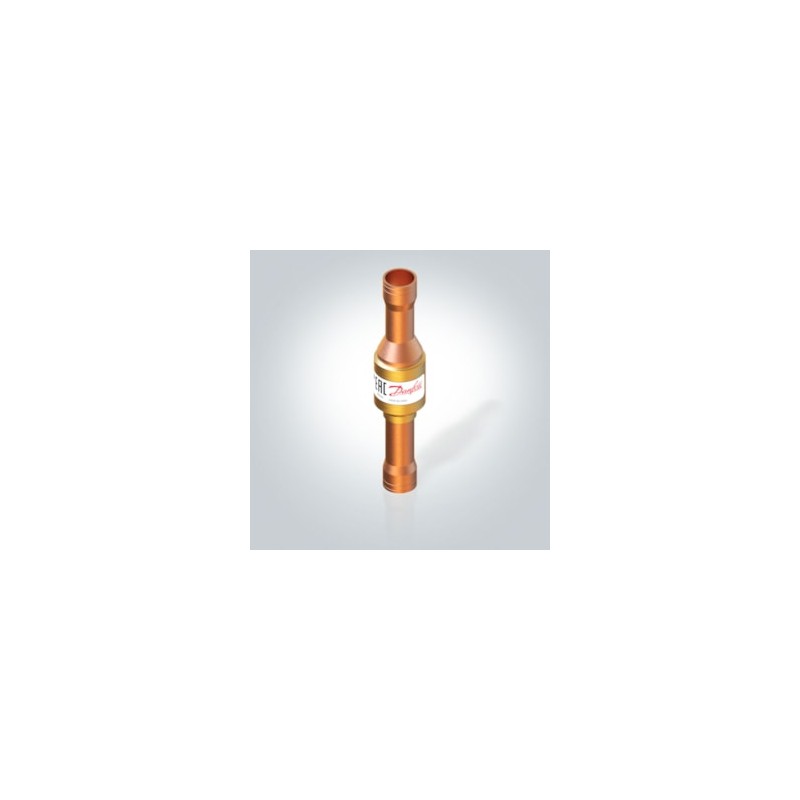

020B1054 DANFOSS REFRIGERATION Check valve, NRV 19s, Max. working pressure [bar]: 49 020B1054 Connected type..
020B1054
DANFOSS REFRIGERATION
Check valve, NRV 19s, Max. working pressure [bar]: 49 020B1054 Connected type. input: Welding, ODF, Inlet size [mm]: 22, Conex type. output: Welding, ODF, Output size [mm]: 22, Direction: Straight pitch, Packaging format: Multipack
Home > DANFOSS REFRIGERATION
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION
Best sellers
▲More info
▲Product Details
| Gross Weight | 0.292 Kilogram |
| Net Weight | 0.276 Kilogram |
| Volume | 0.277 Liter |
| EAN | 5702428572187 |
| Type | NRV 19s |
| Product Group | Check valves |
| Product Line | 01 |
| Product Name Description | Check valve |
| Gross Weight | 0.292 Kilogram |
| Net Weight | 0.276 Kilogram |
| Volume | 0.277 Liter |
| EAN | 5702428572187 |
| Type | NRV 19s |
| Product Group | Check valves |
| Product Line | 01 |
| Product Name Description | Check valve |
| UL Approved | Yes |
| Quantity per packaging format | 28 Pcs. |
| Category | Art. 4, par. 3 |
| Min. pressure drop [psi] | 0.7 psi |
| Drop Down Min. [bar] | 0.05 bar |
| EU RoHS Exemption Clause | 6(c) |
| Lubricant compatibility | Oil-free applications |
| Cond. Nominal Hot Gas Capacity [IMP] | tcond=86 °F tdisc=176 °F tevap=14 °F thotgas=140 °F tsub=9 °F |
| Cond. Rated Hot Gas Cap [SI] | tcond=30 °C tdisc=80 °C tevap=-10 °C thotgas=60 °C tsub=5K |
| Cond. nominal cap., liq. cap. [IMP] | tcond=86 °F tevap=14 °F tsub=9 °F |
| Cond. nominal cap., liq. cap. [SIP] | tcond=30 °C tevap=-10 °C tsub=5K |
| China RoHS Compliance | Yes with exemptions |
| EU RoHS Compliance | Yes with exemptions |
| Contains batteries | No |
| Address | Straight Step |
| Flow direction | Single Flow |
| Design | Piston |
| EN13463-3 Ignition Source Evaluation | Yes |
| Packaging format | Multipack |
| Fluid Group | 1 2 |
| Approval | LISTED BY C UL US EAC |
| Flow direction indicator | On product label |
| Temperature range [°C] [Max] | 155 °C |
| Temperature range [°C] [Min] | -50 °C |
| Temperature range [°F] [max.] | 311°F |
| Temperature range [°F] [min.] | -58°F |
| Connection material | Copper |
| Body Material | Brass |
| SCIP File No. | 7b42224f-9b93-4833-96e4-aafa2349a423 |
| UL Approval File Name | 53R0 COOLANT VALVE |
| Product name on SCIP dossier | NRV V2 |
| Connection observations | Oversizing |
| ODP min. [bar] | 0.02 bar |
| OPD min. [psi] | 0.29 psi |
| Max. working pressure [bar] | 49 bar |
| Max. Working Pressure [psig] | 710 psig |
| Same Product | 020B1091 |
| Coolant(s) | R1233zd(E) R1234yf R1234ze(E) R1270 R134a R170 R22/R407C R290 R32 Read moreR404A/R507A R407A R407F R407H R410A R448A R449A R449B R450A R452A R452B R454A R454B R454C R455A R513A R515B R516A R600 R600A |
| UL Listed Refrigerants | R1233zd(E) R1234yf R1234ze(E) R1270 R134a R170 R22 R290 R32 Read moreR404A R407A R407C R407F R407H R410A R448A R449A R449B R450A R452A R452B R454A R454B R454C R455A R507A R513A R515B R516A R600 R600A |
| Oil-free coolants | R1234ze(E) R134a R513A R515B R516A |
| Substances on the REACH Candidate List | Lead (CAS no. 7439-92-1) |
| Ticket size [in] | 7/8 in |
| Input size [mm] | 22 mm |
| Output Size [in] | 7/8 in |
| Output size [mm] | 22 mm |
| Connected type. Entrance | Welding, ODF |
| Connected type. Departure | Welding, ODF |
| Cv Value [gal/min] | 7.51 gal/min |
| Kv value [m³/h] | 6.5 m³/h |
| UL Approved | Yes |
| Quantity per packaging format | 28 Pcs. |
| Category | Art. 4, par. 3 |
| Min. pressure drop [psi] | 0.7 psi |
| Drop Down Min. [bar] | 0.05 bar |
| EU RoHS Exemption Clause | 6(c) |
| Lubricant compatibility | Oil-free applications |
| Cond. Nominal Hot Gas Capacity [IMP] | tcond=86 °F tdisc=176 °F tevap=14 °F thotgas=140 °F tsub=9 °F |
| Cond. Rated Hot Gas Cap [SI] | tcond=30 °C tdisc=80 °C tevap=-10 °C thotgas=60 °C tsub=5K |
| Cond. nominal cap., liq. cap. [IMP] | tcond=86 °F tevap=14 °F tsub=9 °F |
| Cond. nominal cap., liq. cap. [SIP] | tcond=30 °C tevap=-10 °C tsub=5K |
| China RoHS Compliance | Yes with exemptions |
| EU RoHS Compliance | Yes with exemptions |
| Contains batteries | No |
| Address | Straight Step |
| Flow direction | Single Flow |
| Design | Piston |
| EN13463-3 Ignition Source Evaluation | Yes |
| Packaging format | Multipack |
| Fluid Group | 1 2 |
| Approval | LISTED BY C UL US EAC |
| Flow direction indicator | On product label |
| Temperature range [°C] [Max] | 155 °C |
| Temperature range [°C] [Min] | -50 °C |
| Temperature range [°F] [max.] | 311°F |
| Temperature range [°F] [min.] | -58°F |
| Connection material | Copper |
| Body Material | Brass |
| SCIP File No. | 7b42224f-9b93-4833-96e4-aafa2349a423 |
| UL Approval File Name | 53R0 COOLANT VALVE |
| Product name on SCIP dossier | NRV V2 |
| Connection observations | Oversizing |
| ODP min. [bar] | 0.02 bar |
| OPD min. [psi] | 0.29 psi |
| Max. working pressure [bar] | 49 bar |
| Max. Working Pressure [psig] | 710 psig |
| Same Product | 020B1091 |
| Coolant(s) | R1233zd(E) R1234yf R1234ze(E) R1270 R134a R170 R22/R407C R290 R32 R404A/R507A R407A R407F R407H R410A R448A R449A R449B R450A R452A R452B R454A R454B R454C R455A R513A R515B R516A R600 R600A |
| UL Listed Refrigerants | R1233zd(E) R1234yf R1234ze(E) R1270 R134a R170 R22 R290 R32 R404A R407A R407C R407F R407H R410A R448A R449A R449B R450A R452A R452B R454A R454B R454C R455A R507A R513A R515B R516A R600 R600A |
| Oil-free coolants | R1234ze(E) R134a R513A R515B R516A |
| Substances on the REACH Candidate List | Lead (CAS no. 7439-92-1) |
| Ticket size [in] | 7/8 in |
| Input size [mm] | 22 mm |
| Output Size [in] | 7/8 in |
| Output size [mm] | 22 mm |
| Connected type. Entrance | Welding, ODF |
| Connected type. Departure | Welding, ODF |
| Cv Value [gal/min] | 7.51 gal/min |
| Kv value [m³/h] | 6.5 m³/h |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE DANFOSS REFRIGERATION AND AIRCONDITIONING EN.pdf | 11 Mbytes |
|
