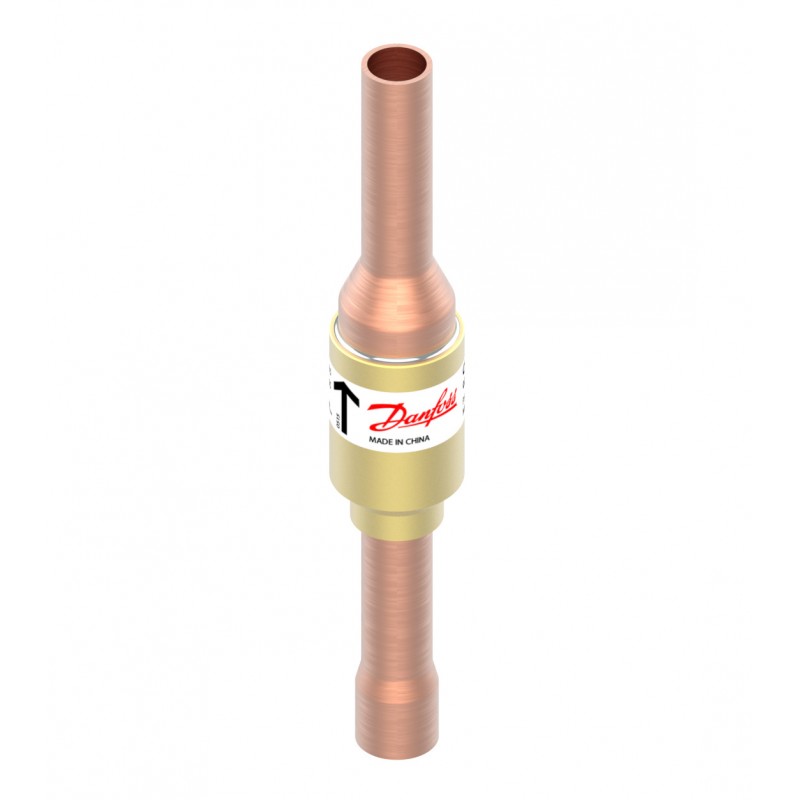

![020B0165 DANFOSS REFRIGERATION Check valve, NRV 10s, Max. Working Pressure [bar]: 49](https://www.electricautomationnetwork.com/1716857-large_default/020b0165-danfoss-refrigeration-check-valve-nrv-10s-max-working-pressure-bar-49.jpg "020B0165 DANFOSS REFRIGERATION Check valve, NRV 10s, Max. Working Pressure [bar]: 49")
View larger
![020B0165 DANFOSS REFRIGERATION Check valve, NRV 10s, Max. Working Pressure [bar]: 49](https://www.electricautomationnetwork.com/1716857-thickbox_default/020b0165-danfoss-refrigeration-check-valve-nrv-10s-max-working-pressure-bar-49.jpg "020B0165 DANFOSS REFRIGERATION Check valve, NRV 10s, Max. Working Pressure [bar]: 49")
020B0165 DANFOSS REFRIGERATION Check valve, NRV 10s, Max. Working Pressure [bar]: 49
020B0165
DANFOSS REFRIGERATION
Check valve, NRV 10s, Max. Working Pressure [bar]: 49
Home > DANFOSS REFRIGERATION
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION
Best sellers
▲More info
▲Inlet connection type: Solder, ODF, Outlet connection type: Solder, ODF, Direction: Straightway, Packing format: Industrial pack
Product details
| Gross weight | 0.063 Kilogram |
| Net weight | 0.056 Kilogram |
| Volume | 0.185 Liter |
| EAN | 5702428571722 |
| Type | NRV 10s |
| Product group | Check valves |
| Product Name Description | Check valve |
| Gross weight | 0.063 Kilogram |
| Net weight | 0.056 Kilogram |
| Volume | 0.185 Liter |
| EAN | 5702428571722 |
| Type | NRV 10s |
| Product group | Check valves |
| Product Name Description | Check valve |
| Approval | C UL US LISTED EAC |
| Body material | Brass |
| China RoHS compliance | Yes with exemptions |
| Connection material | Copper |
| Connection notes | Oversize |
| Contains batteries | No |
| Cv value [gal/min] | 1.8 gal/min |
| Design | Piston |
| Direction | Straightway |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(c) |
| Flow direction | Single-flow |
| Flow direction indicator | On product label |
| Fluid Group | 1 2 |
| Identical product | 020B1058 |
| Ignition source assessment | Yes |
| Inlet connection type | Solder, ODF |
| Inlet size [in] | 1/2 in |
| Kv value [m³/h] | 1.56 m³/h |
| Lubricants compatibility | Oilfree applications |
| Max. Working Pressure [bar] | 49 bar |
| Max. Working Pressure [psig] | 710 psig |
| Min. Pressure drop [bar] | 0.07 bar |
| Min. Pressure drop [psi] | 1 psi |
| MinODP [bar] | 0.04 bar |
| MinODP [psi] | 0.58 psi |
| Oil free refrigerants | R1234ze(E) R134a R513A R515B R516A |
| Outlet connection type | Solder, ODF |
| Outlet size [in] | 1/2 in |
| Packing format | Industrial pack |
| PED category | Art. 4, par. 3 |
| Quantity per packing format | 40 pc |
| Rated cap cond, Hot gas [IMP] | tcond=86 °F tdisc=176 °F tevap=14 °F thotgas=140 °F tsub=9 °F |
| Rated cap cond, Hot gas [SI] | tcond=30 °C tdisc=80 °C tevap=-10 °C thotgas=60 °C tsub=5K |
| Rated cap cond, Liq. cap [IMP] | tcond=86 °F tevap=14 °F tsub=9 °F |
| Rated cap cond, Liq. cap [SI] | tcond=30 °C tevap=-10 °C tsub=5K |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Refrigerants | R1233zd(E) R1234yf R1234ze(E) R1270 R134a R170 R22/R407C R290 R32 R404A/R507A R407A R407F R407H R410A R448A R449A R449B R450A R452A R452B R454A R454B R454C R455A R513A R515B R516A R600 R600a |
| SCIP dossier no. | 7b42224f-9b93-4833-96e4-aafa2349a423 |
| SCIP dossier product name | NRV V2 |
| Temperature range [°C] [max] | 155 °C |
| Temperature range [°C] [min] | -50 °C |
| Temperature range [°F] [max] | 311 °F |
| Temperature range [°F] [min] | -58 °F |
| UL approval file name | REFRIGERANT VALVE 53R0 |
| UL approved refrigerants | R1233zd(E) R1234yf R1234ze(E) R1270 R134a R170 R22 R290 R32 R404A R407A R407C R407F R407H R410A R448A R449A R449B R450A R452A R452B R454A R454B R454C R455A R507A R513A R515B R516A R600 R600a |
| UL mark | Yes |
| Approval | C UL US LISTED EAC |
| Body material | Brass |
| China RoHS compliance | Yes with exemptions |
| Connection material | Copper |
| Connection notes | Oversize |
| Contains batteries | No |
| Cv value [gal/min] | 1.8 gal/min |
| Design | Piston |
| Direction | Straightway |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(c) |
| Flow direction | Single-flow |
| Flow direction indicator | On product label |
| Fluid Group | 1 2 |
| Identical product | 020B1058 |
| Ignition source assessment | Yes |
| Inlet connection type | Solder, ODF |
| Inlet size [in] | 1/2 in |
| Kv value [m³/h] | 1.56 m³/h |
| Lubricants compatibility | Oilfree applications |
| Max. Working Pressure [bar] | 49 bar |
| Max. Working Pressure [psig] | 710 psig |
| Min. Pressure drop [bar] | 0.07 bar |
| Min. Pressure drop [psi] | 1 psi |
| MinODP [bar] | 0.04 bar |
| MinODP [psi] | 0.58 psi |
| Oil free refrigerants | R1234ze(E) R134a R513A R515B R516A |
| Outlet connection type | Solder, ODF |
| Outlet size [in] | 1/2 in |
| Packing format | Industrial pack |
| PED category | Art. 4, par. 3 |
| Quantity per packing format | 40 pc |
| Rated cap cond, Hot gas [IMP] | tcond=86 °F tdisc=176 °F tevap=14 °F thotgas=140 °F tsub=9 °F |
| Rated cap cond, Hot gas [SI] | tcond=30 °C tdisc=80 °C tevap=-10 °C thotgas=60 °C tsub=5K |
| Rated cap cond, Liq. cap [IMP] | tcond=86 °F tevap=14 °F tsub=9 °F |
| Rated cap cond, Liq. cap [SI] | tcond=30 °C tevap=-10 °C tsub=5K |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Refrigerants | R1233zd(E) R1234yf R1234ze(E) R1270 R134a R170 R22/R407C R290 R32 R404A/R507A R407A R407F R407H R410A R448A R449A R449B R450A R452A R452B R454A R454B R454C R455A R513A R515B R516A R600 R600a |
| SCIP dossier no. | 7b42224f-9b93-4833-96e4-aafa2349a423 |
| SCIP dossier product name | NRV V2 |
| Temperature range [°C] [max] | 155 °C |
| Temperature range [°C] [min] | -50 °C |
| Temperature range [°F] [max] | 311 °F |
| Temperature range [°F] [min] | -58 °F |
| UL approval file name | REFRIGERANT VALVE 53R0 |
| UL approved refrigerants | R1233zd(E) R1234yf R1234ze(E) R1270 R134a R170 R22 R290 R32 R404A R407A R407C R407F R407H R410A R448A R449A R449B R450A R452A R452B R454A R454B R454C R455A R507A R513A R515B R516A R600 R600a |
| UL mark | Yes |
