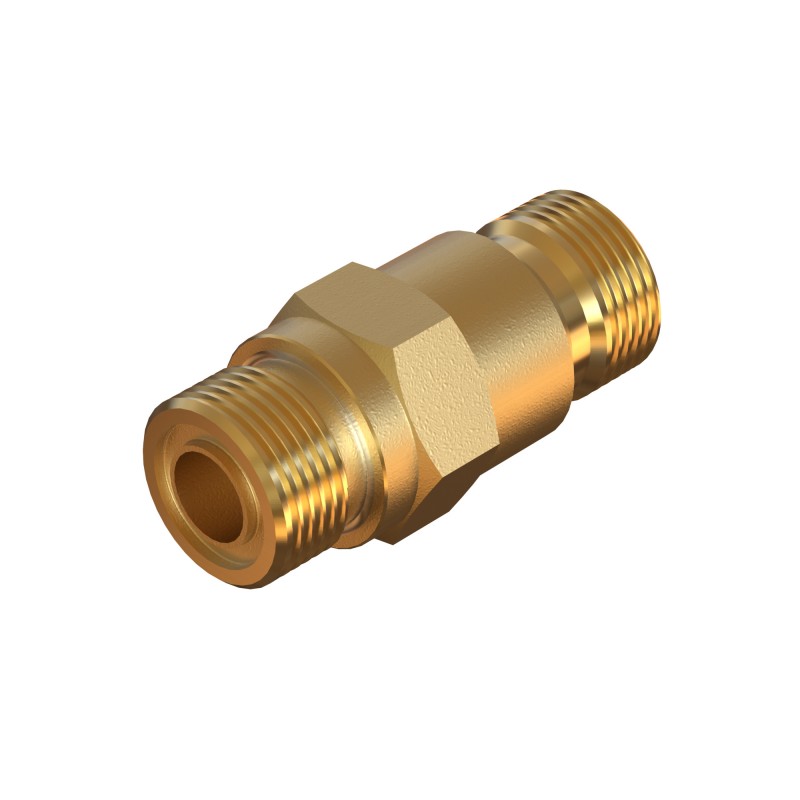

020-1118 DANFOSS REFRIGERATION Check valve, NRV 12
020-1118
DANFOSS REFRIGERATION
140
Check valve, NRV 12
Check valve, NRV 12, Max. Working Pressure [bar]: 46
Home > DANFOSS REFRIGERATION
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION
Best sellers
▲More info
▲Inlet connection type: Face seal, Outlet connection type: Face seal, Direction: Straightway, Packing format: Industrial pack
Product details
| Gross weight | 0.121 Kilogram |
| Net weight | 0.12 Kilogram |
| Volume | 0.161 Liter |
| EAN | 5702428246637 |
| Type | NRV 12 |
| Product group | Check valves |
| Product Name Description | Check valve |
| Gross weight | 0.121 Kilogram |
| Net weight | 0.12 Kilogram |
| Volume | 0.161 Liter |
| EAN | 5702428246637 |
| Type | NRV 12 |
| Product group | Check valves |
| Product Name Description | Check valve |
| Approval | C UL US LISTED EAC |
| Body material | Brass |
| China RoHS compliance | Yes with exemptions |
| Connection material | Brass |
| Contains batteries | No |
| Cv value [gal/min] | 2.37 gal/min |
| Design | Piston |
| Direction | Straightway |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(c) |
| Flow direction | Single-flow |
| Flow direction indicator | On product label |
| Fluid Group | 1 2 |
| Inlet connection type | Face seal |
| Inlet Internal/External | External |
| Inlet size [in] | 1/2 in |
| Kv value [m³/h] | 2.05 m³/h |
| Lubricants compatibility | Oilfree applications |
| Max. Working Pressure [bar] | 46 bar |
| Max. Working Pressure [psig] | 667 psig |
| Min. Pressure drop [bar] | 0.05 bar |
| Min. Pressure drop [psi] | 0.7 psi |
| Oil free refrigerants | R1234ze(E) R134a R513A R515B R516A |
| Outlet connection type | Face seal |
| Outlet Internal/External | External |
| Outlet size [in] | 1/2 in |
| Packing format | Industrial pack |
| PED category | Art. 4, par. 3 |
| Quantity per packing format | 140 pc |
| Rated cap cond, Hot gas [IMP] | tcond=86 °F tdisc=176 °F tevap=14 °F thotgas=140 °F tsub=9 °F |
| Rated cap cond, Hot gas [SI] | tcond=30 °C tdisc=80 °C tevap=-10 °C thotgas=60 °C tsub=5K |
| Rated cap cond, Liq. cap [IMP] | tcond=86 °F tevap=14 °F tsub=9 °F |
| Rated cap cond, Liq. cap [SI] | tcond=30 °C tevap=-10 °C tsub=5K |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Refrigerants | R1233zd(E) R1234yf R1234ze(E) R134a R22/R407C R32 R404A/R507A R407A R407F R407H R410A R448A R449A R449B R450A R452A R452B R454A R454B R454C R455A R513A R515B R516A |
| SCIP dossier no. | 223bfe56-40fc-428b-994d-25b5d471ec91 |
| SCIP dossier product name | NRV V1 Face seal |
| Temperature range [°C] [max] | 140 °C |
| Temperature range [°C] [min] | -50 °C |
| Temperature range [°F] [max] | 285 °F |
| Temperature range [°F] [min] | -58 °F |
| UL approval file name | REFRIGERANT VALVE 53R0 |
| UL approved refrigerants | R1233zd(E) R1234yf R1234ze(E) R134a R22 R32 R404A R407A R407C R407F R407H R410A R448A R449A R449B R450A R452A R452B R454A R454B R454C R455A R507A R513A R515B R516A |
| UL mark | Yes |
| Approval | C UL US LISTED EAC |
| Body material | Brass |
| China RoHS compliance | Yes with exemptions |
| Connection material | Brass |
| Contains batteries | No |
| Cv value [gal/min] | 2.37 gal/min |
| Design | Piston |
| Direction | Straightway |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(c) |
| Flow direction | Single-flow |
| Flow direction indicator | On product label |
| Fluid Group | 1 2 |
| Inlet connection type | Face seal |
| Inlet Internal/External | External |
| Inlet size [in] | 1/2 in |
| Kv value [m³/h] | 2.05 m³/h |
| Lubricants compatibility | Oilfree applications |
| Max. Working Pressure [bar] | 46 bar |
| Max. Working Pressure [psig] | 667 psig |
| Min. Pressure drop [bar] | 0.05 bar |
| Min. Pressure drop [psi] | 0.7 psi |
| Oil free refrigerants | R1234ze(E) R134a R513A R515B R516A |
| Outlet connection type | Face seal |
| Outlet Internal/External | External |
| Outlet size [in] | 1/2 in |
| Packing format | Industrial pack |
| PED category | Art. 4, par. 3 |
| Quantity per packing format | 140 pc |
| Rated cap cond, Hot gas [IMP] | tcond=86 °F tdisc=176 °F tevap=14 °F thotgas=140 °F tsub=9 °F |
| Rated cap cond, Hot gas [SI] | tcond=30 °C tdisc=80 °C tevap=-10 °C thotgas=60 °C tsub=5K |
| Rated cap cond, Liq. cap [IMP] | tcond=86 °F tevap=14 °F tsub=9 °F |
| Rated cap cond, Liq. cap [SI] | tcond=30 °C tevap=-10 °C tsub=5K |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Refrigerants | R1233zd(E) R1234yf R1234ze(E) R134a R22/R407C R32 R404A/R507A R407A R407F R407H R410A R448A R449A R449B R450A R452A R452B R454A R454B R454C R455A R513A R515B R516A |
| SCIP dossier no. | 223bfe56-40fc-428b-994d-25b5d471ec91 |
| SCIP dossier product name | NRV V1 Face seal |
| Temperature range [°C] [max] | 140 °C |
| Temperature range [°C] [min] | -50 °C |
| Temperature range [°F] [max] | 285 °F |
| Temperature range [°F] [min] | -58 °F |
| UL approval file name | REFRIGERANT VALVE 53R0 |
| UL approved refrigerants | R1233zd(E) R1234yf R1234ze(E) R134a R22 R32 R404A R407A R407C R407F R407H R410A R448A R449A R449B R450A R452A R452B R454A R454B R454C R455A R507A R513A R515B R516A |
| UL mark | Yes |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE DANFOSS REFRIGERATION AND AIRCONDITIONING EN.pdf | 11 Mbytes |
|
| 020-1118 020-1118 ES_020-1118.pdf | 1 Mbytes |
|
