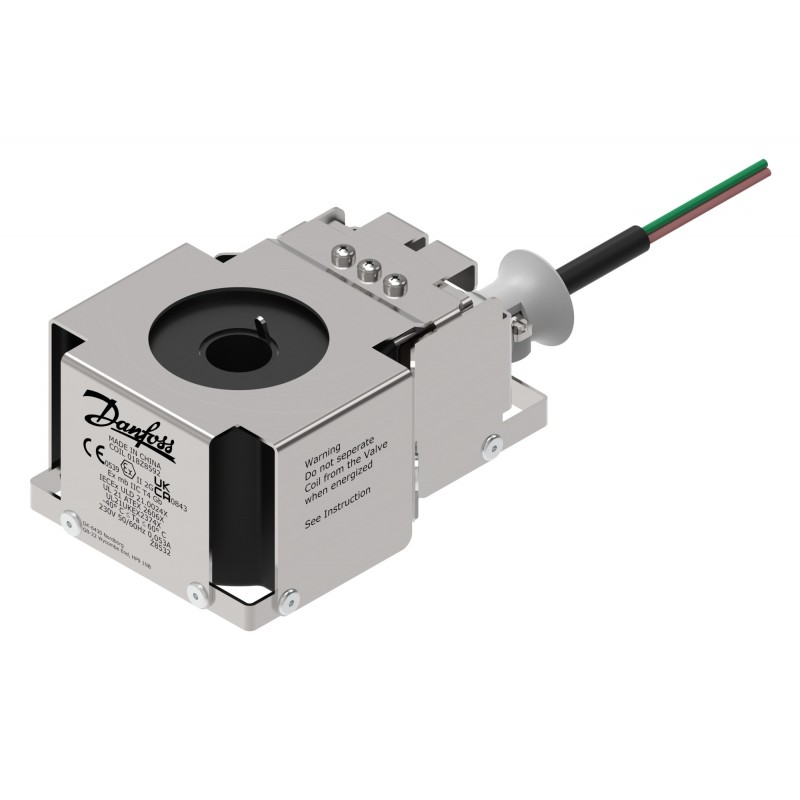

018Z8596 DANFOSS REFRIGERATION Solenoid coil, BI024D, Cable, Multi pack
018Z8596
DANFOSS REFRIGERATION
Solenoid coil, BI024D, Cable, Multi pack
Coil BI024D 24V DC 5m Cable ATEX F
Solenoid coil, BI024D, Cable, Supply voltage [V] DC: 24, Multi pack
Home > DANFOSS REFRIGERATION
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION
Best sellers
▲More info
▲Electrical connection: Cable, Supply voltage [V] DC: 24, Enclosure rating IP: IP67
Product details
| Gross weight | 1.176 Kilogram |
| Net weight | 1.095 Kilogram |
| Volume | 2.056 Liter |
| EAN | 5702424618568 |
| Type | BI024D |
| Product group | Solenoid valves |
| Product Name Description | Solenoid coil |
| Gross weight | 1.176 Kilogram |
| Net weight | 1.095 Kilogram |
| Volume | 2.056 Liter |
| EAN | 5702424618568 |
| Type | BI024D |
| Product group | Solenoid valves |
| Product Name Description | Solenoid coil |
| Actuator size | 13.5 mm |
| Ambient temperature range [°C] [max] | 40 °C |
| Ambient temperature range [°C] [min] | -40 °C |
| Ambient temperature range [°F] [max] | 104 °F |
| Ambient temperature range [°F] [min] | -40 °F |
| Approval | ATEX - Cat. 2 - Zone 1 |
| Cable length [in] | 196 in |
| Cable length [m] | 5 m |
| China RoHS compliance | Out of scope |
| China RoHS exemption clause | No |
| Coil connection | Cable |
| Coil fastening | Finger screw |
| Coil winding insulation class | Class H to IEC 85 |
| Colour | Black |
| Conductor area [mm2] | 3 x 0.75 mm2 |
| Contains batteries | No |
| Duty rating | Continuous |
| Earth connection | Ext. Terminal Green/yellow wire |
| EEE category | 5 small equipment (any external dimension < 50 cm) |
| Electrical conn. comments | Earth conn. wiring > 4 mm2 |
| Electrical connection | Cable |
| Electrical connector | 3 core cable |
| Enclosure rating IP | IP67 |
| Enclosure rating Nema (~) | 6 |
| EU RoHS compliance | Yes |
| EU RoHS exemption clause | No |
| EX Sales text | -40C<ta<+40C DEMKO 01 ATEX127938X Ex mb IIC T4 Gb IECEx ULD 21.0024X UL 21 ATEX 2606X UL21UKEX2374X |
| In scope of WEEE | Yes |
| Packing format | Multi pack |
| Parts included | IP67 seal kit |
| Parts Program name | AKV10P/PS AKV15 AKV20 AKVA EV210B 1,5 - 25 EV210BW 1,5 - 25 EV220B 6 - 100 EV220BW 15 -50 EV221BW 6 - 22 EV222B 15 - 50 EV250B 6 - 22 EV250BW 6 - 22 EV251B 10 - 22 EVM EVM NO and NC EVR NC 2 - 40 EVR NO 3 - 40 EVRA(T) 3 - 40 EVRB EVRF EVRP EVRS(T) 3 - 20 ICF 15-65 VDH 2 - 120 VDHT xx VPH 15 |
| Power consumption [W] DC | 12 W |
| Product accessories | Solenoid coil accessories |
| Quantity per packing format | 10 pc |
| REACH Candidate List substances | No |
| Rel. Humidity [% RH] [max] | 97 % |
| Rel. Humidity [% RH] [min] | 0 % |
| Serviceable | No |
| Supply voltage [V] DC | 24 V |
| Type designation | BI024D |
| Actuator size | 13.5 mm |
| Ambient temperature range [°C] [max] | 40 °C |
| Ambient temperature range [°C] [min] | -40 °C |
| Ambient temperature range [°F] [max] | 104 °F |
| Ambient temperature range [°F] [min] | -40 °F |
| Approval | ATEX - Cat. 2 - Zone 1 |
| Cable length [in] | 196 in |
| Cable length [m] | 5 m |
| China RoHS compliance | Out of scope |
| China RoHS exemption clause | No |
| Coil connection | Cable |
| Coil fastening | Finger screw |
| Coil winding insulation class | Class H to IEC 85 |
| Colour | Black |
| Conductor area [mm2] | 3 x 0.75 mm2 |
| Contains batteries | No |
| Duty rating | Continuous |
| Earth connection | Ext. Terminal Green/yellow wire |
| EEE category | 5 small equipment (any external dimension < 50 cm) |
| Electrical conn. comments | Earth conn. wiring > 4 mm2 |
| Electrical connection | Cable |
| Electrical connector | 3 core cable |
| Enclosure rating IP | IP67 |
| Enclosure rating Nema (~) | 6 |
| EU RoHS compliance | Yes |
| EU RoHS exemption clause | No |
| EX Sales text | -40C<ta<+40C DEMKO 01 ATEX127938X Ex mb IIC T4 Gb IECEx ULD 21.0024X UL 21 ATEX 2606X UL21UKEX2374X |
| In scope of WEEE | Yes |
| Packing format | Multi pack |
| Parts included | IP67 seal kit |
| Parts Program name | AKV10P/PS AKV15 AKV20 AKVA EV210B 1,5 - 25 EV210BW 1,5 - 25 EV220B 6 - 100 EV220BW 15 -50 EV221BW 6 - 22 EV222B 15 - 50 EV250B 6 - 22 EV250BW 6 - 22 EV251B 10 - 22 EVM EVM NO and NC EVR NC 2 - 40 EVR NO 3 - 40 EVRA(T) 3 - 40 EVRB EVRF EVRP EVRS(T) 3 - 20 ICF 15-65 VDH 2 - 120 VDHT xx VPH 15 |
| Power consumption [W] DC | 12 W |
| Product accessories | Solenoid coil accessories |
| Quantity per packing format | 10 pc |
| REACH Candidate List substances | No |
| Rel. Humidity [% RH] [max] | 97 % |
| Rel. Humidity [% RH] [min] | 0 % |
| Serviceable | No |
| Supply voltage [V] DC | 24 V |
| Type designation | BI024D |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE DANFOSS REFRIGERATION AND AIRCONDITIONING EN.pdf | 11 Mbytes |
|
| 018Z8596 ES_018Z8596.pdf | 537 Kbytes |
|
