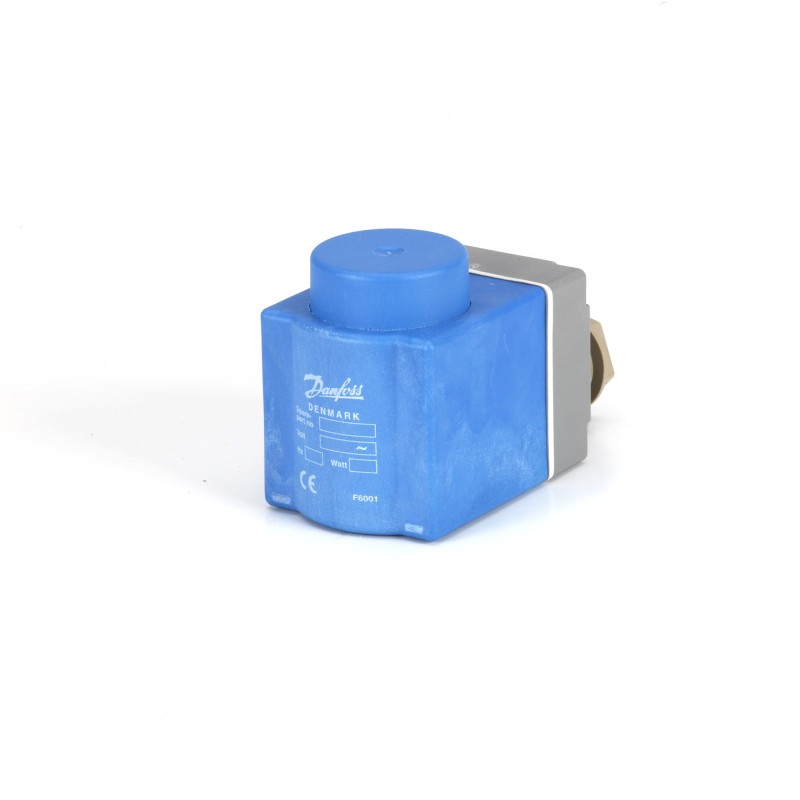

018F7925 DANFOSS REFRIGERATION Solenoid coil, BE220BS
018F7925
DANFOSS REFRIGERATION
Solenoid coil, BE220BS
Magnetic coils, BE220BS
Home > DANFOSS REFRIGERATION
* Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION
More info
▲Electrical connection: DIN Spade, Supply voltage [V] AC: 220, Enclosure rating IP: IP20
Product details
| Gross weight | 0.34 Kg |
| Net weight | 0.315 Kg |
| Volume | 0.319 Liter |
| EAN | 5702428074445 |
| Gross weight | 0.34 Kg |
| Net weight | 0.315 Kg |
| Volume | 0.319 Liter |
| EAN | 5702428074445 |
| Actuator size [mm] | 13.5 mm |
| Ambient temperature range [°C] | 80 °C |
| Ambient temperature range [°F] | 175 °F |
| Approval | LLC CDC TYSK |
| Coil connection | DIN Spade + cap |
| Coil design standard | VDE 0580 |
| Coil fastening | Clip-on |
| Coil winding insulation class | Class H to IEC 85 |
| Color | Blue |
| Colour | Blue |
| Compliance | EN 60730-1 |
| Description | Coil BE220BS 220V 60Hz Box |
| Duty rating | Continuous |
| Electrical connection | DIN Spade |
| Electrical connection size | 6.3 mm x 0.8 mm |
| Electrical connection standard | EN175301-803 |
| Electrical connector | 3 x spades |
| Enclosure rating IP | IP20 |
| Frequency [Hz] | 60 Hz |
| In scope of WEEE and contain batteries | No |
| Packing format | Multi pack |
| Parts included | Cap |
| Parts Program name | EV210B EV212B EV220B 15 - 50 EV220B 6 - 22 EV220B 65 - 100 EV222B EV224B EV227B EV250B EV251B |
| Power consumption 60Hz [VA] | 23 VA |
| Power consumption [W] 60Hz | 13 W |
| Product accessories | Solenoid coil accessories |
| Product description | Magnetic coils |
| Product group | Accessory |
| Quantity per packing format | 50 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Rel. Humidity [% RH] [min] | 0 % |
| Rel. Humidity conditions | Non-condensation |
| SCIP dossier no. | 23785618-b379-4da7-a913-ecd40c8fae6d |
| SCIP dossier product name | Solenoid coils |
| Serviceable | No |
| Supply voltage 60Hz Max [V] | 220 V |
| Supply voltage [V] AC | 220 V |
| Type | Magnetic coil |
| Type designation | BE220BS |
| Actuator size [mm] | 13.5 mm |
| Ambient temperature range [°C] | 80 °C |
| Ambient temperature range [°F] | 175 °F |
| Approval | LLC CDC TYSK |
| Coil connection | DIN Spade + cap |
| Coil design standard | VDE 0580 |
| Coil fastening | Clip-on |
| Coil winding insulation class | Class H to IEC 85 |
| Color | Blue |
| Colour | Blue |
| Compliance | EN 60730-1 |
| Description | Coil BE220BS 220V 60Hz Box |
| Duty rating | Continuous |
| Electrical connection | DIN Spade |
| Electrical connection size | 6.3 mm x 0.8 mm |
| Electrical connection standard | EN175301-803 |
| Electrical connector | 3 x spades |
| Enclosure rating IP | IP20 |
| Frequency [Hz] | 60 Hz |
| In scope of WEEE and contain batteries | No |
| Packing format | Multi pack |
| Parts included | Cap |
| Parts Program name | EV210B EV212B EV220B 15 - 50 EV220B 6 - 22 EV220B 65 - 100 EV222B EV224B EV227B EV250B EV251B |
| Power consumption 60Hz [VA] | 23 VA |
| Power consumption [W] 60Hz | 13 W |
| Product accessories | Solenoid coil accessories |
| Product description | Magnetic coils |
| Product group | Accessory |
| Quantity per packing format | 50 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Rel. Humidity [% RH] [min] | 0 % |
| Rel. Humidity conditions | Non-condensation |
| SCIP dossier no. | 23785618-b379-4da7-a913-ecd40c8fae6d |
| SCIP dossier product name | Solenoid coils |
| Serviceable | No |
| Supply voltage 60Hz Max [V] | 220 V |
| Supply voltage [V] AC | 220 V |
| Type | Magnetic coil |
| Type designation | BE220BS |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| 018F7925 018F7925 ES_018F7925.pdf | 448 Kbytes |
 |
