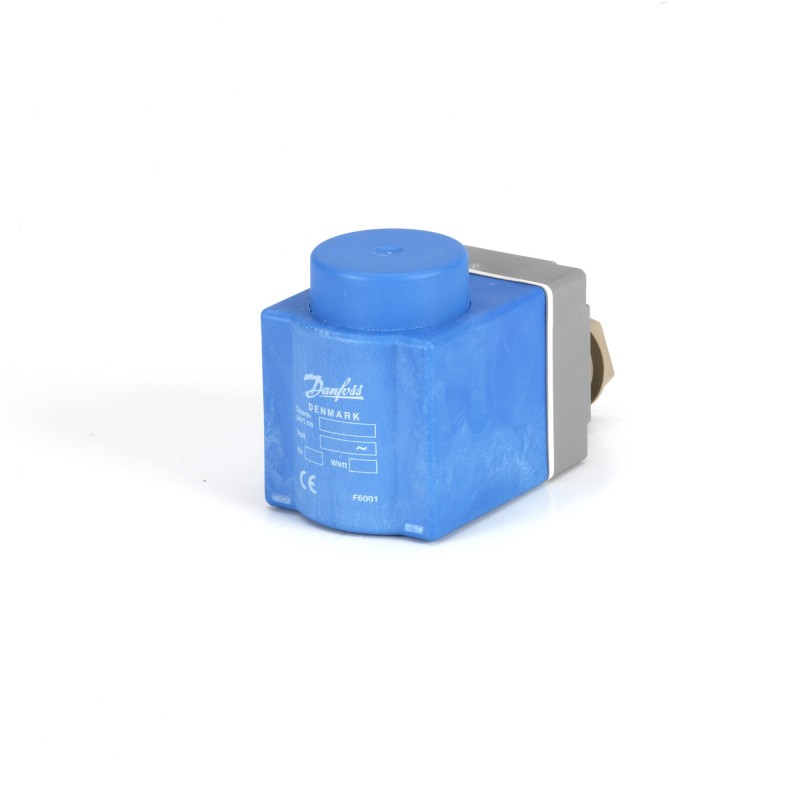

018F7914 DANFOSS REFRIGERATION Solenoid coil, BE024DS
018F7914
DANFOSS REFRIGERATION
Solenoid coil, BE024DS
Magnetic coils, BE024DS
Home > DANFOSS REFRIGERATION
* Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION
Best sellers
▲More info
▲Electrical connection: Terminal box, Supply voltage [V] DC: 24, Enclosure rating IP: IP67
Product details
| Gross weight | 0.352 Kg |
| Net weight | 0.327 Kg |
| Volume | 0.308 Liter |
| EAN | 5702428170918 |
| Gross weight | 0.352 Kg |
| Net weight | 0.327 Kg |
| Volume | 0.308 Liter |
| EAN | 5702428170918 |
| Actuator size [mm] | 13.5 mm |
| Ambient temperature range [°C] | 50 °C |
| Ambient temperature range [°F] | 120 °F |
| Approval | LLC CDC TYSK |
| Cable diameter [mm] | 6 mm |
| Coil connection | Connection Box |
| Coil design standard | VDE 0580 |
| Coil fastening | Clip-on |
| Coil winding insulation class | Class H to IEC 85 |
| Color | Blue |
| Colour | Blue |
| Compliance | EN 60730-1 |
| Conductor area [mm2] | 0.75 - 1.5 mm2 |
| Description | Coil BE024DS 24V DC Box |
| Duty rating | Continuous |
| Electrical connection | Terminal box |
| Electrical connection size | Pg 13.5 |
| Enclosure rating IP | IP67 |
| Frequency [Hz] | DC |
| In scope of WEEE and contain batteries | No |
| Packing format | Multi pack |
| Parts Program name | EV210B EV212B EV220B 15 - 50 EV220B 6 - 22 EV220B 65 - 100 EV222B EV224B EV227B EV250B EV251B EV258B |
| Power consumption [W] DC | 16 W |
| Product accessories | Solenoid coil accessories |
| Product description | Magnetic coils |
| Product group | Accessory |
| Quantity per packing format | 32 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Rel. Humidity [% RH] [min] | 0 % |
| SCIP dossier no. | 23785618-b379-4da7-a913-ecd40c8fae6d |
| SCIP dossier product name | Solenoid coils |
| Serviceable | No |
| Supply voltage [V] DC | 24 V |
| Type | Magnetic coil |
| Type designation | BE024DS |
| Actuator size [mm] | 13.5 mm |
| Ambient temperature range [°C] | 50 °C |
| Ambient temperature range [°F] | 120 °F |
| Approval | LLC CDC TYSK |
| Cable diameter [mm] | 6 mm |
| Coil connection | Connection Box |
| Coil design standard | VDE 0580 |
| Coil fastening | Clip-on |
| Coil winding insulation class | Class H to IEC 85 |
| Color | Blue |
| Colour | Blue |
| Compliance | EN 60730-1 |
| Conductor area [mm2] | 0.75 - 1.5 mm2 |
| Description | Coil BE024DS 24V DC Box |
| Duty rating | Continuous |
| Electrical connection | Terminal box |
| Electrical connection size | Pg 13.5 |
| Enclosure rating IP | IP67 |
| Frequency [Hz] | DC |
| In scope of WEEE and contain batteries | No |
| Packing format | Multi pack |
| Parts Program name | EV210B EV212B EV220B 15 - 50 EV220B 6 - 22 EV220B 65 - 100 EV222B EV224B EV227B EV250B EV251B EV258B |
| Power consumption [W] DC | 16 W |
| Product accessories | Solenoid coil accessories |
| Product description | Magnetic coils |
| Product group | Accessory |
| Quantity per packing format | 32 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Rel. Humidity [% RH] [min] | 0 % |
| SCIP dossier no. | 23785618-b379-4da7-a913-ecd40c8fae6d |
| SCIP dossier product name | Solenoid coils |
| Serviceable | No |
| Supply voltage [V] DC | 24 V |
| Type | Magnetic coil |
| Type designation | BE024DS |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| 018F7914 018F7914 ES_018F7925.pdf | 448 Kbytes |
 |
