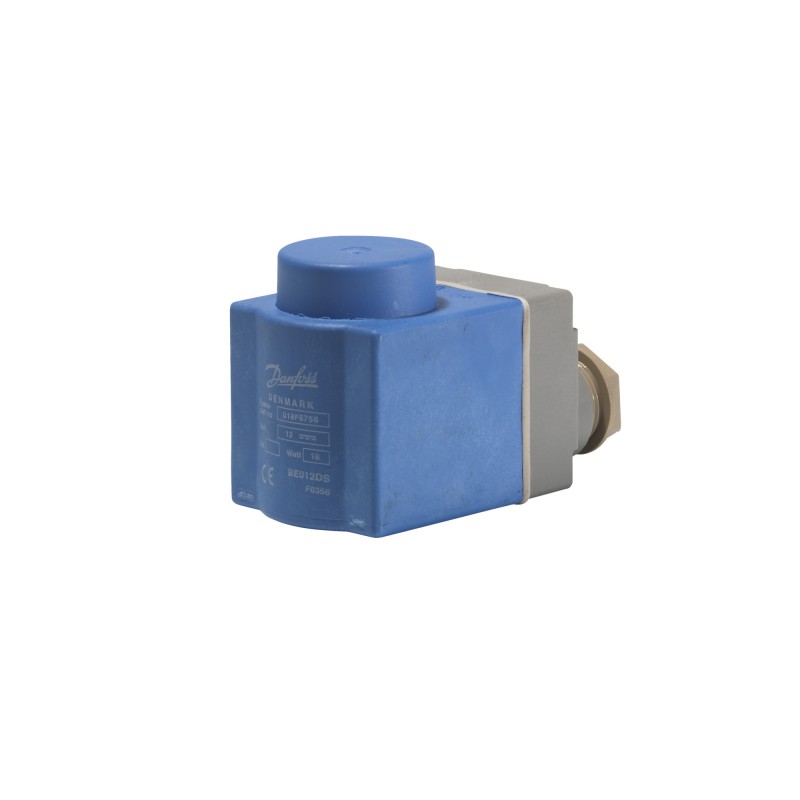

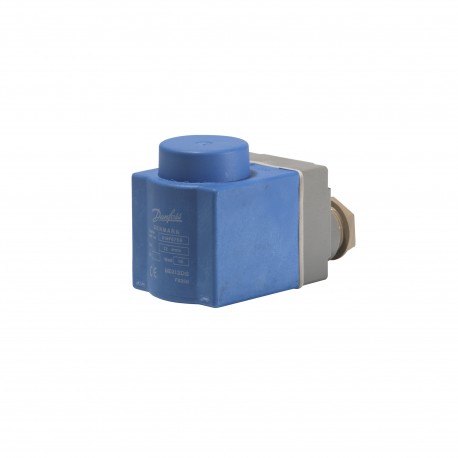

018F7913 DANFOSS REFRIGERATION Solenoid coil, BE012DS
Reference: 018F7913
Manufacturer: DANFOSS REFRIGERATION
Description:
Solenoid coil, BE012DS
Magnetic coils, BE012DS
Categories:
- DANFOSS REFRIGERATION
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION
- More Info
- Reviews
* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.
Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.
LAST VIEWED
MORE INFO
Electrical connection: Terminal box, Enclosure rating IP: IP67
Product details
| Gross weight | 0.344 Kilogram |
| Net weight | 0.319 Kilogram |
| Volume | 0.309 Liter |
| EAN | 5702428074421 |
| Type | Magnetic coil |
| Product group | Accessories |
| Gross weight | 0.344 Kilogram |
| Net weight | 0.319 Kilogram |
| Volume | 0.309 Liter |
| EAN | 5702428074421 |
| Type | Magnetic coil |
| Product group | Accessories |
| Actuator size [mm] | 13.5 mm |
| Ambient temperature range [°C] | 50 °C |
| Ambient temperature range [°F] | 120 °F |
| Approval | LLC CDC TYSK |
| Cable diameter [mm] | 6 mm |
| Coil connection | Connection Box |
| Coil design standard | VDE 0580 |
| Coil fastening | Clip-on |
| Coil winding insulation class | Class H to IEC 85 |
| Color | Blue |
| Colour | Blue |
| Compliance | EN 60730-1 |
| Conductor area [mm2] | 0.75 - 1.5 mm2 |
| Contains batteries | No |
| Description | Coil BE012DS 12V DC Box |
| Duty rating | Continuous |
| EEE category | 5 small equipment (any external dimension < 50 cm) |
| Electrical connection | Terminal box |
| Electrical connection size | Pg 13.5 |
| Enclosure rating IP | IP67 |
| Frequency [Hz] | DC |
| In scope of WEEE | Yes |
| Packing format | Multi pack |
| Parts Program name | EV210B EV212B EV220B 15 - 50 EV220B 6 - 22 EV220B 65 - 100 EV222B EV224B EV227B EV250B EV251B EV258B |
| Power consumption [W] DC | 15 W |
| Product accessories | Solenoid coil accessories |
| Product description | Magnetic coils |
| Quantity per packing format | 32 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Rel. Humidity [% RH] [min] | 0 % |
| SCIP dossier no. | e1534687-9129-4796-8151-656dd16d6529 |
| SCIP dossier product name | RD |
| Serviceable | No |
| Type designation | BE012DS |
| Actuator size [mm] | 13.5 mm |
| Ambient temperature range [°C] | 50 °C |
| Ambient temperature range [°F] | 120 °F |
| Approval | LLC CDC TYSK |
| Cable diameter [mm] | 6 mm |
| Coil connection | Connection Box |
| Coil design standard | VDE 0580 |
| Coil fastening | Clip-on |
| Coil winding insulation class | Class H to IEC 85 |
| Color | Blue |
| Colour | Blue |
| Compliance | EN 60730-1 |
| Conductor area [mm2] | 0.75 - 1.5 mm2 |
| Contains batteries | No |
| Description | Coil BE012DS 12V DC Box |
| Duty rating | Continuous |
| EEE category | 5 small equipment (any external dimension < 50 cm) |
| Electrical connection | Terminal box |
| Electrical connection size | Pg 13.5 |
| Enclosure rating IP | IP67 |
| Frequency [Hz] | DC |
| In scope of WEEE | Yes |
| Packing format | Multi pack |
| Parts Program name | EV210B EV212B EV220B 15 - 50 EV220B 6 - 22 EV220B 65 - 100 EV222B EV224B EV227B EV250B EV251B EV258B |
| Power consumption [W] DC | 15 W |
| Product accessories | Solenoid coil accessories |
| Product description | Magnetic coils |
| Quantity per packing format | 32 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Rel. Humidity [% RH] [min] | 0 % |
| SCIP dossier no. | e1534687-9129-4796-8151-656dd16d6529 |
| SCIP dossier product name | RD |
| Serviceable | No |
| Type designation | BE012DS |
