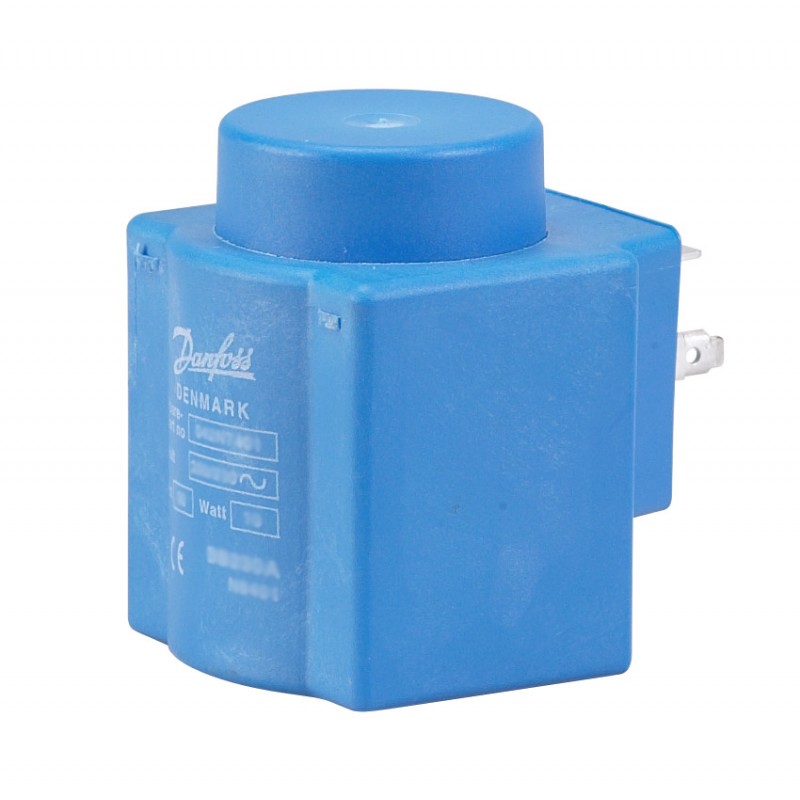

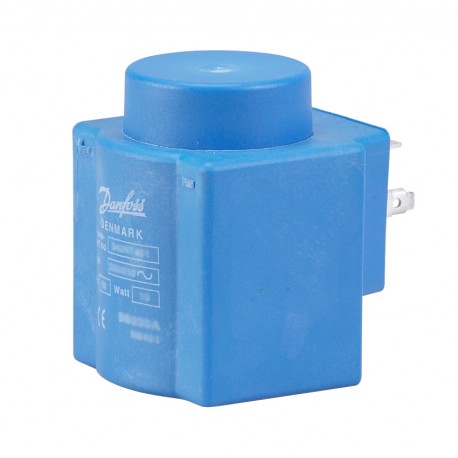

018F7905 DANFOSS REFRIGERATION Solenoid coil, BB024AS
Reference: 018F7905
Manufacturer: DANFOSS REFRIGERATION
Description:
Solenoid coil, BB024AS
Magnetic coils, BB024AS
Categories:
- DANFOSS REFRIGERATION
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION
- More Info
- Reviews
* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.
Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.
MORE INFO
Electrical connection: DIN Spade, Supply voltage [V] AC: 24, Enclosure rating IP: IP00
Product details
| Gross weight | 0.262 Kilogram |
| Net weight | 0.244 Kilogram |
| Volume | 0.268 Liter |
| EAN | 5702428170994 |
| Type | Magnetic coil |
| Product group | Accessories |
| Gross weight | 0.262 Kilogram |
| Net weight | 0.244 Kilogram |
| Volume | 0.268 Liter |
| EAN | 5702428170994 |
| Type | Magnetic coil |
| Product group | Accessories |
| Actuator size [mm] | 13.5 mm |
| Ambient temperature range [°C] | 80 °C |
| Ambient temperature range [°F] | 176 °F |
| Approval | Standard |
| CE evaluated | Out of scope |
| Coil connection | DIN Spade |
| Coil design standard | VDE 0580 |
| Coil fastening | Clip-on |
| Coil winding insulation class | Class H to IEC 85 |
| Color | Blue |
| Colour | Blue |
| Compliance | EN 60730-1 |
| Contains batteries | No |
| Description | Coil BB024AS 24V 50Hz |
| Duty rating | Continuous |
| EEE category | 5 small equipment (any external dimension < 50 cm) |
| Electrical connection | DIN Spade |
| Electrical connection size | 6.3 mm x 0.8 mm |
| Electrical connection standard | EN175301-803 |
| Electrical connector | 3 x spades |
| Enclosure rating IP | IP00 |
| Frequency [Hz] | 50 Hz |
| In scope of WEEE | Yes |
| Packing format | Multi pack |
| Parts Program name | EV210B EV212B EV220B 15 - 50 EV220B 6 - 22 EV220B 65 - 100 EV222B EV224B EV250B EV251B EV310B |
| Power consumption 50Hz [VA] | 19 VA |
| Power consumption [W] 50Hz | 11 W |
| Product accessories | Solenoid coil accessories |
| Product description | Magnetic coils |
| Quantity per packing format | 50 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Rel. Humidity [% RH] [min] | 0 % |
| Rel. Humidity conditions | Non-condensation |
| SCIP dossier no. | e1534687-9129-4796-8151-656dd16d6529 |
| SCIP dossier product name | RD |
| Serviceable | No |
| Supply voltage 50Hz Max [V] | 24 V |
| Supply voltage [V] AC | 24 V |
| Type designation | BB024AS |
| Actuator size [mm] | 13.5 mm |
| Ambient temperature range [°C] | 80 °C |
| Ambient temperature range [°F] | 176 °F |
| Approval | Standard |
| CE evaluated | Out of scope |
| Coil connection | DIN Spade |
| Coil design standard | VDE 0580 |
| Coil fastening | Clip-on |
| Coil winding insulation class | Class H to IEC 85 |
| Color | Blue |
| Colour | Blue |
| Compliance | EN 60730-1 |
| Contains batteries | No |
| Description | Coil BB024AS 24V 50Hz |
| Duty rating | Continuous |
| EEE category | 5 small equipment (any external dimension < 50 cm) |
| Electrical connection | DIN Spade |
| Electrical connection size | 6.3 mm x 0.8 mm |
| Electrical connection standard | EN175301-803 |
| Electrical connector | 3 x spades |
| Enclosure rating IP | IP00 |
| Frequency [Hz] | 50 Hz |
| In scope of WEEE | Yes |
| Packing format | Multi pack |
| Parts Program name | EV210B EV212B EV220B 15 - 50 EV220B 6 - 22 EV220B 65 - 100 EV222B EV224B EV250B EV251B EV310B |
| Power consumption 50Hz [VA] | 19 VA |
| Power consumption [W] 50Hz | 11 W |
| Product accessories | Solenoid coil accessories |
| Product description | Magnetic coils |
| Quantity per packing format | 50 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Rel. Humidity [% RH] [min] | 0 % |
| Rel. Humidity conditions | Non-condensation |
| SCIP dossier no. | e1534687-9129-4796-8151-656dd16d6529 |
| SCIP dossier product name | RD |
| Serviceable | No |
| Supply voltage 50Hz Max [V] | 24 V |
| Supply voltage [V] AC | 24 V |
| Type designation | BB024AS |
