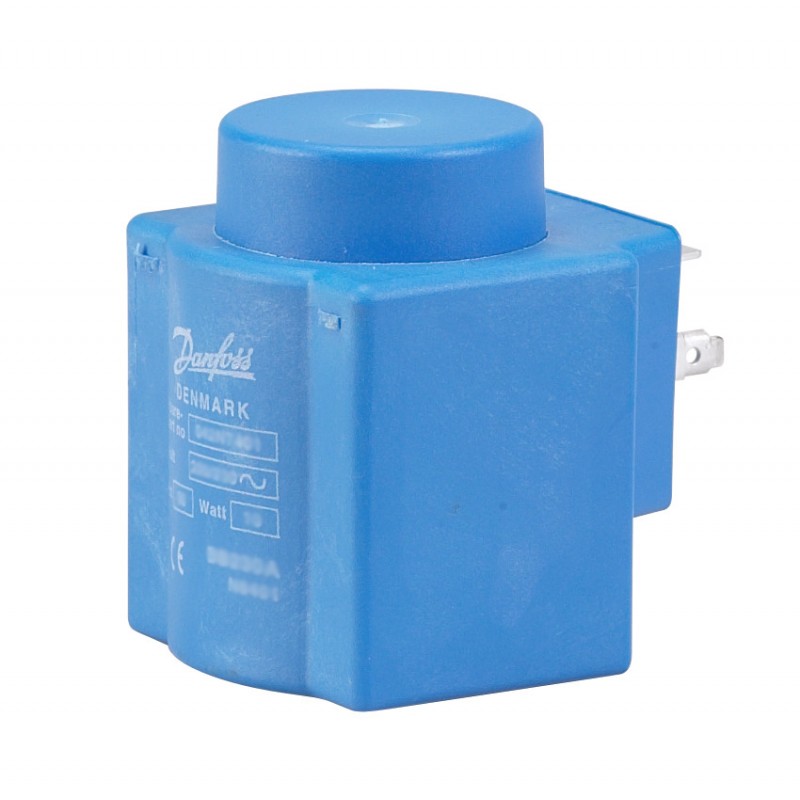

018F7660 DANFOSS REFRIGERATION Solenoid coil, BY120CS
018F7660
DANFOSS REFRIGERATION
Solenoid coil, BY120CS
Coil BY120CS 110/110-120V 50/60Hz Spade
Solenoid coil, BY120CS, US Spade, Supply voltage [V] AC: 110, Multi pack
Home > DANFOSS REFRIGERATION
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION
Best sellers
▲More info
▲Electrical connection: US Spade, Supply voltage [V] AC: 110, Frequency [Hz]: 50/60 Hz, Enclosure rating IP: IP00
Product details
| Gross weight | 0.296 Kilogram |
| Net weight | 0.278 Kilogram |
| Volume | 0.264 Liter |
| EAN | 5702428041416 |
| Type | BY120CS |
| Product group | Solenoid valves |
| Product Name Description | Solenoid coil |
| Gross weight | 0.296 Kilogram |
| Net weight | 0.278 Kilogram |
| Volume | 0.264 Liter |
| EAN | 5702428041416 |
| Type | BY120CS |
| Product group | Solenoid valves |
| Product Name Description | Solenoid coil |
| Actuator size | 13.5 mm |
| Ambient temperature range [°C] [max] | 50 °C |
| Ambient temperature range [°C] [min] | -40 °C |
| Ambient temperature range [°F] [max] | 122 °F |
| Ambient temperature range [°F] [min] | -40 °F |
| Approval | CE EAC LLC CDC TYSK cURus |
| CE mark | Yes |
| China RoHS compliance | Out of scope |
| China RoHS exemption clause | No |
| Coil connection | US 0.25 in Spade |
| Coil design standard | VDE 0580 |
| Coil fastening | Clip-on |
| Coil winding insulation class | Class H to IEC 85 |
| Colour | Blue |
| Compliance | EN 60730-1 UL 429 |
| Contains batteries | No |
| EEE category | 5 small equipment (any external dimension < 50 cm) |
| Electrical connection | US Spade |
| Electrical connection size | 0.25 in |
| Electrical connector | 3 x spades |
| Enclosure rating IP | IP00 |
| EU RoHS compliance | Yes |
| EU RoHS exemption clause | No |
| Frequency [Hz] | 50/60 Hz |
| In scope of WEEE | Yes |
| Packing format | Multi pack |
| Parts Program name | EV210B EV212B EV220B 15 - 50 EV220B 6 - 22 EV220B 65 - 100 EV222B EV250B EV251B |
| Power consumption 50Hz [VA] | 29 VA |
| Power consumption 60Hz [VA] | 28 VA |
| Power consumption [W] 50Hz | 14 W |
| Power consumption [W] 60Hz | 14 W |
| Product accessories | Solenoid coil accessories |
| Quantity per packing format | 50 pc |
| REACH Candidate List substances | No |
| Rel. Humidity [% RH] [max] | 97 % |
| Rel. Humidity [% RH] [min] | 0 % |
| Rel. Humidity conditions | Non-condensation |
| SCIP dossier product name | Solenoid coils |
| Serviceable | No |
| Spare part number | 018F7660 |
| Supply voltage 50Hz Max [V] | 110 V |
| Supply voltage 60Hz Max [V] | 120 V |
| Supply voltage 60Hz Min [V] | 110 V |
| Supply voltage [V] AC | 110 V |
| Type designation | BY120CS |
| UL approval file name | MH29671 |
| UL mark | Yes |
| Actuator size | 13.5 mm |
| Ambient temperature range [°C] [max] | 50 °C |
| Ambient temperature range [°C] [min] | -40 °C |
| Ambient temperature range [°F] [max] | 122 °F |
| Ambient temperature range [°F] [min] | -40 °F |
| Approval | CE EAC LLC CDC TYSK cURus |
| CE mark | Yes |
| China RoHS compliance | Out of scope |
| China RoHS exemption clause | No |
| Coil connection | US 0.25 in Spade |
| Coil design standard | VDE 0580 |
| Coil fastening | Clip-on |
| Coil winding insulation class | Class H to IEC 85 |
| Colour | Blue |
| Compliance | EN 60730-1 UL 429 |
| Contains batteries | No |
| EEE category | 5 small equipment (any external dimension < 50 cm) |
| Electrical connection | US Spade |
| Electrical connection size | 0.25 in |
| Electrical connector | 3 x spades |
| Enclosure rating IP | IP00 |
| EU RoHS compliance | Yes |
| EU RoHS exemption clause | No |
| Frequency [Hz] | 50/60 Hz |
| In scope of WEEE | Yes |
| Packing format | Multi pack |
| Parts Program name | EV210B EV212B EV220B 15 - 50 EV220B 6 - 22 EV220B 65 - 100 EV222B EV250B EV251B |
| Power consumption 50Hz [VA] | 29 VA |
| Power consumption 60Hz [VA] | 28 VA |
| Power consumption [W] 50Hz | 14 W |
| Power consumption [W] 60Hz | 14 W |
| Product accessories | Solenoid coil accessories |
| Quantity per packing format | 50 pc |
| REACH Candidate List substances | No |
| Rel. Humidity [% RH] [max] | 97 % |
| Rel. Humidity [% RH] [min] | 0 % |
| Rel. Humidity conditions | Non-condensation |
| SCIP dossier product name | Solenoid coils |
| Serviceable | No |
| Spare part number | 018F7660 |
| Supply voltage 50Hz Max [V] | 110 V |
| Supply voltage 60Hz Max [V] | 120 V |
| Supply voltage 60Hz Min [V] | 110 V |
| Supply voltage [V] AC | 110 V |
| Type designation | BY120CS |
| UL approval file name | MH29671 |
| UL mark | Yes |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE DANFOSS REFRIGERATION AND AIRCONDITIONING EN.pdf | 11 Mbytes |
|
| 018F7660 018F7660 DE_018Z6595.pdf | 6 Mbytes |
|
