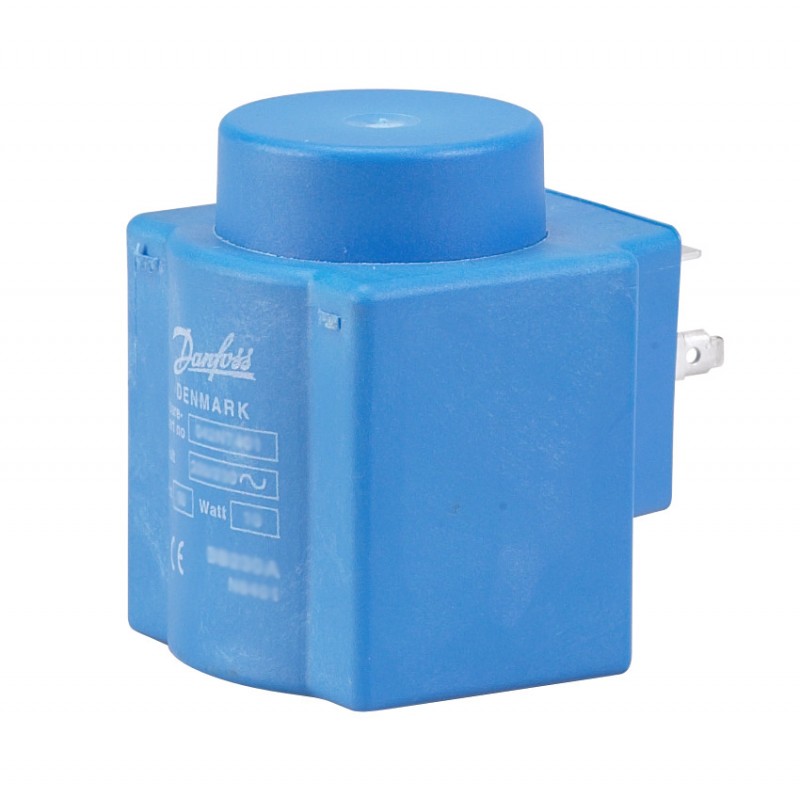

018F7388 DANFOSS REFRIGERATION Solenoid coil, BB024AS
018F7388
DANFOSS REFRIGERATION
Solenoid coil, BB024AS
Coil BB024AS 24V 50Hz DIN Plug
Solenoid coil, BB024AS, DIN Spade, Supply voltage [V] AC: 24, Multi pack
Home > DANFOSS REFRIGERATION
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION
Best sellers
▲More info
▲Electrical connection: DIN Spade, Supply voltage [V] AC: 24, Frequency [Hz]: 50 Hz, Enclosure rating IP: IP67
Product details
| Gross weight | 0.29 Kilogram |
| Net weight | 0.265 Kilogram |
| Volume | 0.313 Liter |
| EAN | 5702428043557 |
| Type | BB024AS |
| Product group | Solenoid valves |
| Product Name Description | Solenoid coil |
| Gross weight | 0.29 Kilogram |
| Net weight | 0.265 Kilogram |
| Volume | 0.313 Liter |
| EAN | 5702428043557 |
| Type | BB024AS |
| Product group | Solenoid valves |
| Product Name Description | Solenoid coil |
| Actuator size | 13.5 mm |
| Ambient temperature range [°C] [max] | 80 °C |
| Ambient temperature range [°C] [min] | -40 °C |
| Ambient temperature range [°F] [max] | 176 °F |
| Ambient temperature range [°F] [min] | -40 °F |
| Approval | CE EAC LLC CDC TYSK |
| CE mark | Yes |
| China RoHS compliance | Out of scope |
| China RoHS exemption clause | No |
| Coil connection | DIN Spade |
| Coil design standard | VDE 0580 |
| Coil fastening | Clip-on |
| Coil winding insulation class | Class H to IEC 85 |
| Colour | Blue |
| Contains batteries | No |
| Duty rating | Continuous |
| EEE category | 5 small equipment (any external dimension < 50 cm) |
| Electrical connection | DIN Spade |
| Electrical connection size | 6.3 mm x 0.8 mm |
| Electrical connection standard | EN175301-803 |
| Electrical connector | 3 x spades |
| Enclosure rating IP | IP67 |
| Enclosure rating Nema (~) | 4 |
| EU RoHS compliance | Yes |
| EU RoHS exemption clause | No |
| Frequency [Hz] | 50 Hz |
| In scope of WEEE | Yes |
| Packing format | Multi pack |
| Parts Program name | EV210B EV212B EV220B 15 - 50 EV220B 6 - 22 EV220B 65 - 100 EV222B EV224B EV250B EV251B EV310B |
| Power consumption 50Hz [VA] | 19 VA |
| Power consumption [W] 50Hz | 11 W |
| Product accessories | Solenoid coil accessories |
| Quantity per packing format | 32 pc |
| REACH Candidate List substances | No |
| Rel. Humidity [% RH] [max] | 100 % |
| Rel. Humidity [% RH] [min] | 0 % |
| SCIP dossier product name | Solenoid coils |
| Serviceable | No |
| Spare part number | 018F7358 |
| Supply voltage 50Hz Max [V] | 24 V |
| Supply voltage [V] AC | 24 V |
| Type designation | BB024AS |
| Actuator size | 13.5 mm |
| Ambient temperature range [°C] [max] | 80 °C |
| Ambient temperature range [°C] [min] | -40 °C |
| Ambient temperature range [°F] [max] | 176 °F |
| Ambient temperature range [°F] [min] | -40 °F |
| Approval | CE EAC LLC CDC TYSK |
| CE mark | Yes |
| China RoHS compliance | Out of scope |
| China RoHS exemption clause | No |
| Coil connection | DIN Spade |
| Coil design standard | VDE 0580 |
| Coil fastening | Clip-on |
| Coil winding insulation class | Class H to IEC 85 |
| Colour | Blue |
| Contains batteries | No |
| Duty rating | Continuous |
| EEE category | 5 small equipment (any external dimension < 50 cm) |
| Electrical connection | DIN Spade |
| Electrical connection size | 6.3 mm x 0.8 mm |
| Electrical connection standard | EN175301-803 |
| Electrical connector | 3 x spades |
| Enclosure rating IP | IP67 |
| Enclosure rating Nema (~) | 4 |
| EU RoHS compliance | Yes |
| EU RoHS exemption clause | No |
| Frequency [Hz] | 50 Hz |
| In scope of WEEE | Yes |
| Packing format | Multi pack |
| Parts Program name | EV210B EV212B EV220B 15 - 50 EV220B 6 - 22 EV220B 65 - 100 EV222B EV224B EV250B EV251B EV310B |
| Power consumption 50Hz [VA] | 19 VA |
| Power consumption [W] 50Hz | 11 W |
| Product accessories | Solenoid coil accessories |
| Quantity per packing format | 32 pc |
| REACH Candidate List substances | No |
| Rel. Humidity [% RH] [max] | 100 % |
| Rel. Humidity [% RH] [min] | 0 % |
| SCIP dossier product name | Solenoid coils |
| Serviceable | No |
| Spare part number | 018F7358 |
| Supply voltage 50Hz Max [V] | 24 V |
| Supply voltage [V] AC | 24 V |
| Type designation | BB024AS |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE DANFOSS REFRIGERATION AND AIRCONDITIONING EN.pdf | 11 Mbytes |
|
| 018F7388 018F7388 IT_018F6906.pdf | 868 Kbytes |
|
