DANFOSS REFRIGERATION018F4703 DANFOSS REFRIGERATION Solenoid coil, BZ120C

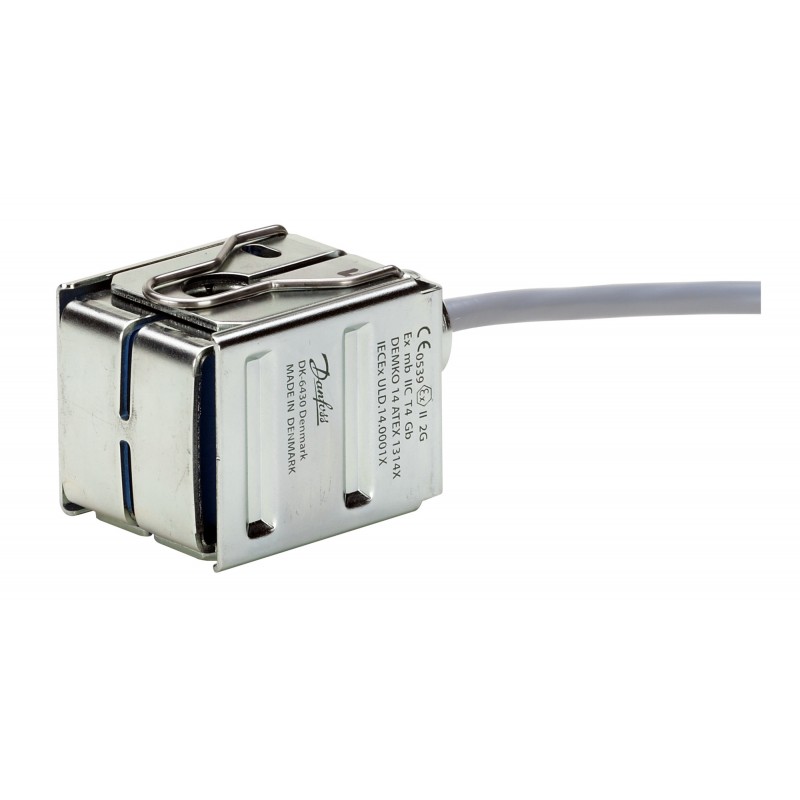

DANFOSS REFRIGERATION 018F4703 018F4703 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

018F4703 DANFOSS REFRIGERATION Solenoid coil, BZ120C

Reference: 018F4703

Manufacturer: DANFOSS REFRIGERATION

Description:

Solenoid coil, BZ120C
Coil BZ120C 110/120V 50/60Hz 9m ATEX
Solenoid coil, BZ120C, Cable, 9 m, Multi pack

Categories:

  • DANFOSS REFRIGERATION

Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 222,76 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 4-5 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

Solenoid coil, Product Type: BZ120C, Enclosure rating IP: IP65, Cable length [m]: 9, Coil connection: Cable, Actuator size: 13.5 mm

Product details

Gross weight0.985 Kilogram
Net weight0.923 Kilogram
Volume3.391 Liter
EAN5702428890502
TypeBZ120C
Product groupSolenoid valves
Product Name DescriptionSolenoid coil
Gross weight0.985 Kilogram
Net weight0.923 Kilogram
Volume3.391 Liter
EAN5702428890502
TypeBZ120C
Product groupSolenoid valves
Product Name DescriptionSolenoid coil

Actuator size13.5 mm
Ambient temperature range [°C] [max]45 °C
Ambient temperature range [°C] [min]-40 °C
Ambient temperature range [°F] [max]113 °F
Ambient temperature range [°F] [min]-40 °F
ApprovalATEX - Cat. 2 - Zone 1
CCC
Cable length [in]354 in
Cable length [m]9 m
China RoHS complianceOut of scope
China RoHS exemption clauseNo
Coil connectionCable
Coil fasteningClip-on
ColourBlue
Conductor area [mm2]3 x 0.75 mm2
Contains batteriesNo
EEE category5 small equipment (any external dimension < 50 cm)
Electrical conn. commentsEarth conn. wiring > 4 mm2
Electrical connectionCable
Enclosure rating IPIP65
Enclosure rating Nema (~)4
EU RoHS complianceYes
EU RoHS exemption clauseNo
EX Sales text-40°C < Ta < +45°C
II 2G Ex mb IIC T4 Gb
Frequency [Hz]50/60 Hz
In scope of WEEEYes
Packing formatMulti pack
Parts Program nameEV220B 15 - 50
EV220B 6 - 22
EV224B
EV227B
EV250B
Power consumption 50Hz [VA]16 VA
Power consumption 60Hz [VA]16 VA
Power consumption [W] 50Hz8 W
Power consumption [W] 60Hz8.5 W
Product accessoriesSolenoid coil accessories
Quantity per packing format12 pc
REACH Candidate List substancesNo
Rel. Humidity [% RH] [max]100 %
Rel. Humidity [% RH] [min]0 %
ServiceableNo
Supply voltage 50Hz Max [V]110 V
Supply voltage 60Hz Max [V]120 V
Type designationBZ120C
Used for productEV220B 15 - 50: not NO valves
Actuator size13.5 mm
Ambient temperature range [°C] [max]45 °C
Ambient temperature range [°C] [min]-40 °C
Ambient temperature range [°F] [max]113 °F
Ambient temperature range [°F] [min]-40 °F
ApprovalATEX - Cat. 2 - Zone 1
CCC
Cable length [in]354 in
Cable length [m]9 m
China RoHS complianceOut of scope
China RoHS exemption clauseNo
Coil connectionCable
Coil fasteningClip-on
ColourBlue
Conductor area [mm2]3 x 0.75 mm2
Contains batteriesNo
EEE category5 small equipment (any external dimension < 50 cm)
Electrical conn. commentsEarth conn. wiring > 4 mm2
Electrical connectionCable
Enclosure rating IPIP65
Enclosure rating Nema (~)4
EU RoHS complianceYes
EU RoHS exemption clauseNo
EX Sales text-40°C < Ta < +45°C
II 2G Ex mb IIC T4 Gb
Frequency [Hz]50/60 Hz
In scope of WEEEYes
Packing formatMulti pack
Parts Program nameEV220B 15 - 50
EV220B 6 - 22
EV224B
EV227B
EV250B
Power consumption 50Hz [VA]16 VA
Power consumption 60Hz [VA]16 VA
Power consumption [W] 50Hz8 W
Power consumption [W] 60Hz8.5 W
Product accessoriesSolenoid coil accessories
Quantity per packing format12 pc
REACH Candidate List substancesNo
Rel. Humidity [% RH] [max]100 %
Rel. Humidity [% RH] [min]0 %
ServiceableNo
Supply voltage 50Hz Max [V]110 V
Supply voltage 60Hz Max [V]120 V
Type designationBZ120C
Used for productEV220B 15 - 50: not NO valves

DATASHEET - PDF

Title
Size
Type
018F4703 018F4703 ES_018F4703.pdf
429 Kbytes
PDF CATALOGUE DANFOSS REFRIGERATION AND AIRCONDITIONING EN
11 Mbytes
