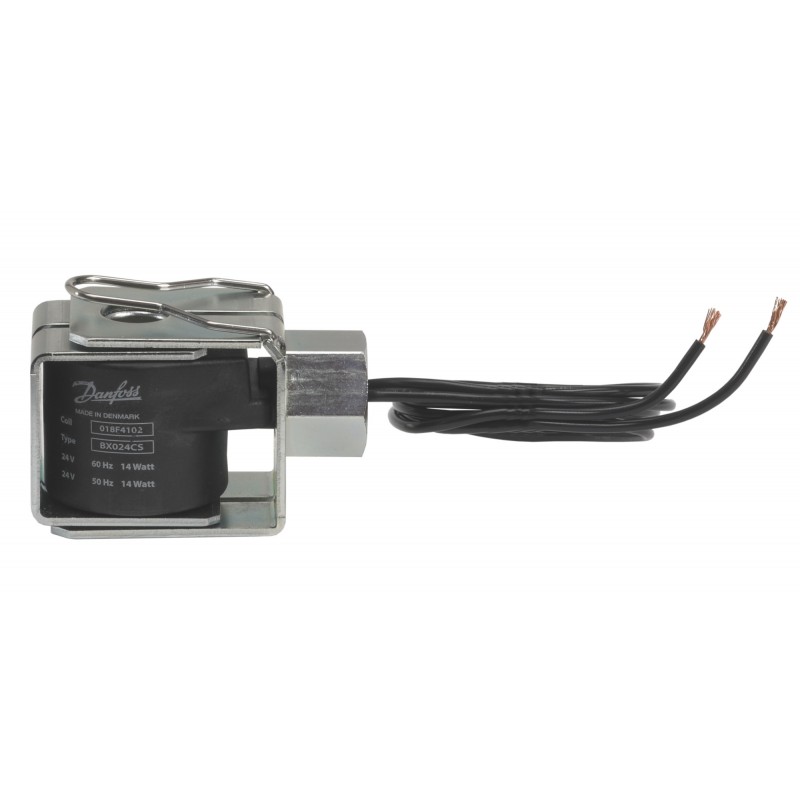

018F4103 DANFOSS REFRIGERATION Solenoid coil, BX024CS
018F4103
DANFOSS REFRIGERATION
Solenoid coil, BX024CS
Coil BX024CS 24V 50/60Hz Hub 1.8m
Solenoid coil, BX024CS, Conduit hub, 1.8 m, Supply voltage [V] AC: 24, Multi pack
Home > DANFOSS REFRIGERATION
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION
Best sellers
▲More info
▲Electrical connection: Conduit hub, Supply voltage [V] AC: 24, Frequency [Hz]: 50/60 Hz, Enclosure rating IP: IP54
Product details
| Gross weight | 0.389 Kilogram |
| Net weight | 0.325 Kilogram |
| Volume | 0.825 Liter |
| EAN | 5702428840934 |
| Type | BX024CS |
| Product group | Solenoid valves |
| Product Name Description | Solenoid coil |
| Gross weight | 0.389 Kilogram |
| Net weight | 0.325 Kilogram |
| Volume | 0.825 Liter |
| EAN | 5702428840934 |
| Type | BX024CS |
| Product group | Solenoid valves |
| Product Name Description | Solenoid coil |
| Actuator size | 13.5 mm |
| Ambient temperature range [°C] [max] | 50 °C |
| Ambient temperature range [°C] [min] | -40 °C |
| Ambient temperature range [°F] [max] | 120 °F |
| Ambient temperature range [°F] [min] | -40 °F |
| Approval | C UL US LISTED LLC CDC TYSK |
| Cable length [in] | 71 in |
| Cable length [m] | 1.8 m |
| China RoHS compliance | Yes |
| China RoHS exemption clause | No |
| Coil connection | 1/2 in Conduit Hub |
| Coil design standard | UL 429 |
| Coil fastening | Clip-on |
| Coil winding insulation class | Class H to IEC 85 |
| Colour | Black |
| Compliance | UL 429 |
| Contains batteries | No |
| EEE category | 5 small equipment (any external dimension < 50 cm) |
| Electrical conn. comments | Flying leads |
| Electrical connection | Conduit hub |
| Electrical connection size | 1/2 in |
| Electrical connection standard | UL50E CLASS 4 |
| Enclosure rating IP | IP54 |
| Enclosure rating Nema (~) | 4 |
| EU RoHS compliance | Yes |
| EU RoHS exemption clause | No |
| Frame design | Ext. metal frame |
| Frequency [Hz] | 50/60 Hz |
| In scope of WEEE | Yes |
| Packing format | Multi pack |
| Parts Program name | EV210B EV215B EV220B 15 - 50 EV220B 6 - 22 EV225B EV245B EV250B |
| Pollution degree | 3 |
| Power consumption [W] 50Hz | 14 W |
| Power consumption [W] 60Hz | 14 W |
| Product accessories | Solenoid coil accessories |
| Quantity per packing format | 24 pc |
| REACH Candidate List substances | No |
| Rel. Humidity [% RH] [max] | 97 % |
| Rel. Humidity [% RH] [min] | 0 % |
| Rel. Humidity conditions | Non-condensation |
| Serviceable | No |
| Spare part number | 018F4103 |
| Supply voltage 50Hz Max [V] | 24 V |
| Supply voltage 60Hz Max [V] | 24 V |
| Supply voltage [V] AC | 24 V |
| Type designation | BX024CS |
| UL approval file name | MH29671 |
| UL mark | Yes |
| Actuator size | 13.5 mm |
| Ambient temperature range [°C] [max] | 50 °C |
| Ambient temperature range [°C] [min] | -40 °C |
| Ambient temperature range [°F] [max] | 120 °F |
| Ambient temperature range [°F] [min] | -40 °F |
| Approval | C UL US LISTED LLC CDC TYSK |
| Cable length [in] | 71 in |
| Cable length [m] | 1.8 m |
| China RoHS compliance | Yes |
| China RoHS exemption clause | No |
| Coil connection | 1/2 in Conduit Hub |
| Coil design standard | UL 429 |
| Coil fastening | Clip-on |
| Coil winding insulation class | Class H to IEC 85 |
| Colour | Black |
| Compliance | UL 429 |
| Contains batteries | No |
| EEE category | 5 small equipment (any external dimension < 50 cm) |
| Electrical conn. comments | Flying leads |
| Electrical connection | Conduit hub |
| Electrical connection size | 1/2 in |
| Electrical connection standard | UL50E CLASS 4 |
| Enclosure rating IP | IP54 |
| Enclosure rating Nema (~) | 4 |
| EU RoHS compliance | Yes |
| EU RoHS exemption clause | No |
| Frame design | Ext. metal frame |
| Frequency [Hz] | 50/60 Hz |
| In scope of WEEE | Yes |
| Packing format | Multi pack |
| Parts Program name | EV210B EV215B EV220B 15 - 50 EV220B 6 - 22 EV225B EV245B EV250B |
| Pollution degree | 3 |
| Power consumption [W] 50Hz | 14 W |
| Power consumption [W] 60Hz | 14 W |
| Product accessories | Solenoid coil accessories |
| Quantity per packing format | 24 pc |
| REACH Candidate List substances | No |
| Rel. Humidity [% RH] [max] | 97 % |
| Rel. Humidity [% RH] [min] | 0 % |
| Rel. Humidity conditions | Non-condensation |
| Serviceable | No |
| Spare part number | 018F4103 |
| Supply voltage 50Hz Max [V] | 24 V |
| Supply voltage 60Hz Max [V] | 24 V |
| Supply voltage [V] AC | 24 V |
| Type designation | BX024CS |
| UL approval file name | MH29671 |
| UL mark | Yes |
