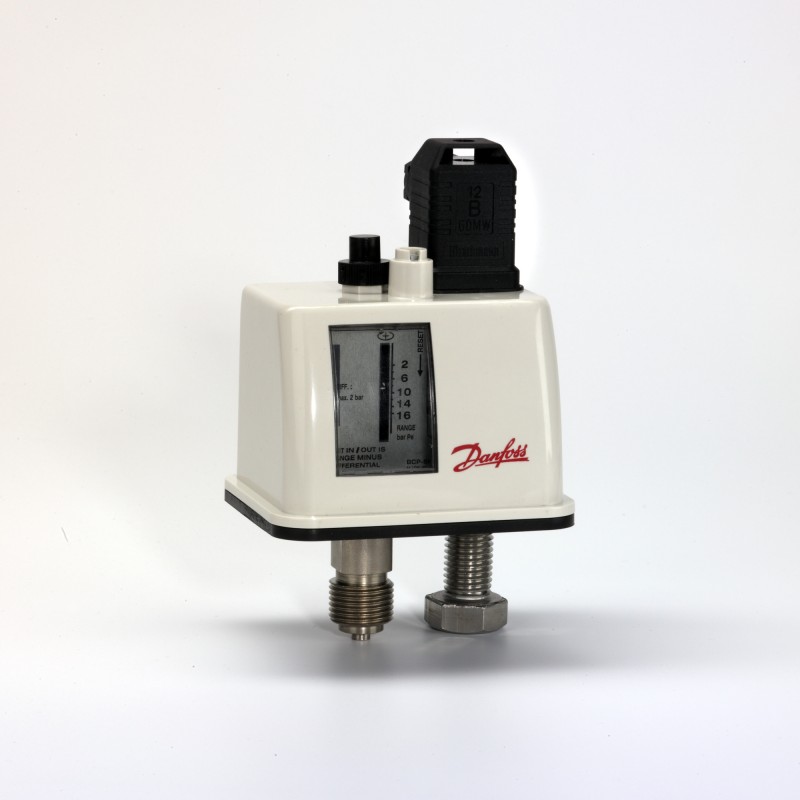

017B0138 DANFOSS REFRIGERATION BCP3H Pressure Switch M/9
017B0138
DANFOSS REFRIGERATION
BCP3H Pressure Switch M/9
Pressure switch, BCP3H
Home > DANFOSS REFRIGERATION
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION
Best sellers
▲More info
▲Regulation range [bar] Pe: 0 - 6, Differential [bar]: 0.4, Reset function: Manual Max, Pressure connection type: G, Pressure connection size: 1/2, Enclosure rating IP: IP65, Max. Working Pressure [bar]: 16
Product details
| Gross weight | 0.624 Kilogram |
| Net weight | 0.582 Kilogram |
| Volume | 1.736 Liter |
| EAN | 5702428433570 |
| Type | BCP3H |
| Product group | Switches and thermostats |
| Product Name Description | Pressure switch |
| Gross weight | 0.624 Kilogram |
| Net weight | 0.582 Kilogram |
| Volume | 1.736 Liter |
| EAN | 5702428433570 |
| Type | BCP3H |
| Product group | Switches and thermostats |
| Product Name Description | Pressure switch |
| Ambient temperature range [°C] [max] | 70 °C |
| Ambient temperature range [°C] [min] | -20 °C |
| Ambient temperature range [°F] [max] | 158 °F |
| Ambient temperature range [°F] [min] | -4 °F |
| Approval | CE EAC EMCD LLC CDC EURO-TYSK LVD PED RoHS TYSK TÜV |
| Burst pressure [bar] | 24 bar |
| CE evaluated | Yes |
| China RoHS compliance | Yes with exemptions |
| China RoHS exemption clause | 7.1 7.3 |
| Contact function | SPDT gold |
| Contact load type | A |
| Contact rating | AC15=1 A, 250 V AC1=6 A, 250 V DC13=10 W, 250 V |
| Contains batteries | No |
| Differential [bar] | 0.4 bar |
| Differential [psi] | 5.8 psi |
| EEE category | 5 small equipment (any external dimension < 50 cm) |
| Electrical conn. Male/Female | Female |
| Electrical connection | DIN-plug |
| Electrical connection size | Pg 11 |
| Electrical connection standard | EN 175301-803 |
| Electrical spec. standard | EN 60947-4/-5 |
| Enclosure rating IP | IP65 |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(a) 6(c) |
| Fluid Group | 1 |
| Further information | Stainless steel bellows Stainless steel connector |
| In scope of WEEE | Yes |
| Max. test pressure [bar] Pe | 17.6 bar |
| Max. test pressure [psig] | 255 psig |
| Max. Working Pressure [bar] | 16 bar |
| Max. Working Pressure [psig] | 230 psig |
| Packing format | Multi pack |
| PED category | IV |
| Pressure connection size | 1/2 |
| Pressure connection standard | ISO 228-1 |
| Pressure connection type | G |
| Pressure Male/Female | Male |
| Pressure sensing element | Bellows |
| Product accessories | Switches accessories |
| Product description | Pressure Switch |
| Quantity per packing format | 9 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Regulation range [bar] Pe [max] | 6 bar |
| Regulation range [bar] Pe [min] | 0 bar |
| Regulation range [psig] Pe [max] | 87.02 psig |
| Regulation range [psig] Pe [min] | 0 psig |
| Reset function | Manual Max |
| SCIP dossier no. | d816ace9-0e65-4ca2-ba00-75f95267a102 |
| SCIP dossier product name | BCP |
| Serviceable | No |
| Ambient temperature range [°C] [max] | 70 °C |
| Ambient temperature range [°C] [min] | -20 °C |
| Ambient temperature range [°F] [max] | 158 °F |
| Ambient temperature range [°F] [min] | -4 °F |
| Approval | CE EAC EMCD LLC CDC EURO-TYSK LVD PED RoHS TYSK TÜV |
| Burst pressure [bar] | 24 bar |
| CE evaluated | Yes |
| China RoHS compliance | Yes with exemptions |
| China RoHS exemption clause | 7.1 7.3 |
| Contact function | SPDT gold |
| Contact load type | A |
| Contact rating | AC15=1 A, 250 V AC1=6 A, 250 V DC13=10 W, 250 V |
| Contains batteries | No |
| Differential [bar] | 0.4 bar |
| Differential [psi] | 5.8 psi |
| EEE category | 5 small equipment (any external dimension < 50 cm) |
| Electrical conn. Male/Female | Female |
| Electrical connection | DIN-plug |
| Electrical connection size | Pg 11 |
| Electrical connection standard | EN 175301-803 |
| Electrical spec. standard | EN 60947-4/-5 |
| Enclosure rating IP | IP65 |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(a) 6(c) |
| Fluid Group | 1 |
| Further information | Stainless steel bellows Stainless steel connector |
| In scope of WEEE | Yes |
| Max. test pressure [bar] Pe | 17.6 bar |
| Max. test pressure [psig] | 255 psig |
| Max. Working Pressure [bar] | 16 bar |
| Max. Working Pressure [psig] | 230 psig |
| Packing format | Multi pack |
| PED category | IV |
| Pressure connection size | 1/2 |
| Pressure connection standard | ISO 228-1 |
| Pressure connection type | G |
| Pressure Male/Female | Male |
| Pressure sensing element | Bellows |
| Product accessories | Switches accessories |
| Product description | Pressure Switch |
| Quantity per packing format | 9 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Regulation range [bar] Pe [max] | 6 bar |
| Regulation range [bar] Pe [min] | 0 bar |
| Regulation range [psig] Pe [max] | 87.02 psig |
| Regulation range [psig] Pe [min] | 0 psig |
| Reset function | Manual Max |
| SCIP dossier no. | d816ace9-0e65-4ca2-ba00-75f95267a102 |
| SCIP dossier product name | BCP |
| Serviceable | No |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE DANFOSS REFRIGERATION AND AIRCONDITIONING EN.pdf | 11 Mbytes |
|
| 017B0138 ES_017B0002.pdf | 1 Mbytes |
|
