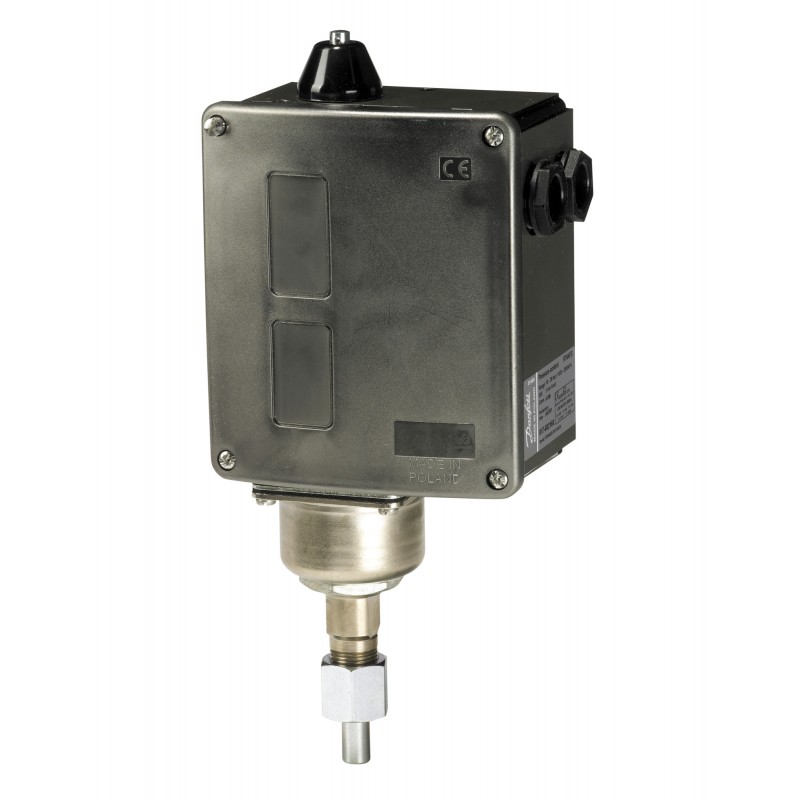

017-502166 DANFOSS REFRIGERATION Pressure switch
017-502166
DANFOSS REFRIGERATION
Pressure switch
RT6AES Pressure Switch M/15 ATEX
Pressure switch, RT6AES
Home > DANFOSS REFRIGERATION
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION
Best sellers
▲More info
▲Regulation range [bar] Pe: 10 - 28, Differential [bar]: 1.5, Contact function: SPDT gold, Reset function: Manual Max, Pressure connection type: G, Pressure connection size: 3/8, Pressure Male/Female: Male, Enclosure rating IP: IP66, Max. Working Pressure [bar]: 34
Product details
| Gross weight | 1.243 Kilogram |
| Net weight | 1.126 Kilogram |
| Volume | 2.789 Liter |
| EAN | 5702423242948 |
| Type | RT6AES |
| Product group | Switches and thermostats |
| Product Name Description | Pressure switch |
| Gross weight | 1.243 Kilogram |
| Net weight | 1.126 Kilogram |
| Volume | 2.789 Liter |
| EAN | 5702423242948 |
| Type | RT6AES |
| Product group | Switches and thermostats |
| Product Name Description | Pressure switch |
| Ambient temperature range [°C] [max] | 65 °C |
| Ambient temperature range [°C] [min] | -20 °C |
| Ambient temperature range [°F] [max] | 149 °F |
| Ambient temperature range [°F] [min] | -4 °F |
| Approval | ATEX - Cat. 2 - Zone 1 CCC CE EAC LLC CDC EURO-TYSK PED RMRS RoHS RoHS China TYSK |
| Burst pressure [bar] | 136 bar |
| CE evaluated | Yes |
| China RoHS compliance | Yes |
| Contact function | SPDT gold |
| Contact rating | Ci=0.5 nF Ii=0.5 A Li=0.2 uH Pi=1 W Ui=29 V |
| Contains batteries | No |
| Differential [bar] | 1.5 bar |
| Differential [psi] | 14.5 psi |
| Electrical conn. Male/Female | Female |
| Electrical connection | Screwed cable entry |
| Electrical connection size | 2xPg 13.5 |
| Electrical connection standard | DIN 40430 |
| Electrical spec. standard | EN 60947-4/-5 |
| EN 60947 electrical properties | Insulation: 400V Pollution degree: 3 Rated impulse voltage: 4 kV Short circuit prot, fuse: 10A |
| EN 60947 wiring properties | Flex, ferrules: 0.2-1.5 mm2 Flex, no ferrules: 0.2-2.5 mm2 Solid/stranded: 0.2-2.5 mm2 |
| Enclosure rating IP | IP66 |
| EU RoHS compliance | Out of scope |
| EX Sales text | -20C<ta<+65C II 2G Ex ia IIC T6...T1 Gb |
| Fluid Group | 1 |
| Max. test pressure [bar] Pe | 38 bar |
| Max. test pressure [psig] | 551 psig |
| Max. Working Pressure [bar] | 34 bar |
| Max. Working Pressure [psig] | 495 psig |
| Packing format | Multi pack |
| PED category | IV |
| Pressure connection notes | Weld nipple d6.5/D10mm |
| Pressure connection size | 3/8 |
| Pressure connection standard | ISO 228-1 |
| Pressure connection type | G |
| Pressure Male/Female | Male |
| Pressure sensing element | Bellows |
| Product accessories | Switches accessories |
| Product description | Pressure Switch |
| Quantity per packing format | 15 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Regulation range [bar] Pe [max] | 28 bar |
| Regulation range [bar] Pe [min] | 10 bar |
| Regulation range [psig] Pe [max] | 406.1 psig |
| Regulation range [psig] Pe [min] | 145 psig |
| Reset function | Manual Max |
| SCIP dossier no. | f62fe422-beda-433a-a602-740419c82c06 |
| SCIP dossier product name | RT Presso_Diff.Presso |
| Serviceable | Contact systems |
| Ambient temperature range [°C] [max] | 65 °C |
| Ambient temperature range [°C] [min] | -20 °C |
| Ambient temperature range [°F] [max] | 149 °F |
| Ambient temperature range [°F] [min] | -4 °F |
| Approval | ATEX - Cat. 2 - Zone 1 CCC CE EAC LLC CDC EURO-TYSK PED RMRS RoHS RoHS China TYSK |
| Burst pressure [bar] | 136 bar |
| CE evaluated | Yes |
| China RoHS compliance | Yes |
| Contact function | SPDT gold |
| Contact rating | Ci=0.5 nF Ii=0.5 A Li=0.2 uH Pi=1 W Ui=29 V |
| Contains batteries | No |
| Differential [bar] | 1.5 bar |
| Differential [psi] | 14.5 psi |
| Electrical conn. Male/Female | Female |
| Electrical connection | Screwed cable entry |
| Electrical connection size | 2xPg 13.5 |
| Electrical connection standard | DIN 40430 |
| Electrical spec. standard | EN 60947-4/-5 |
| EN 60947 electrical properties | Insulation: 400V Pollution degree: 3 Rated impulse voltage: 4 kV Short circuit prot, fuse: 10A |
| EN 60947 wiring properties | Flex, ferrules: 0.2-1.5 mm2 Flex, no ferrules: 0.2-2.5 mm2 Solid/stranded: 0.2-2.5 mm2 |
| Enclosure rating IP | IP66 |
| EU RoHS compliance | Out of scope |
| EX Sales text | -20C<ta<+65C II 2G Ex ia IIC T6...T1 Gb |
| Fluid Group | 1 |
| Max. test pressure [bar] Pe | 38 bar |
| Max. test pressure [psig] | 551 psig |
| Max. Working Pressure [bar] | 34 bar |
| Max. Working Pressure [psig] | 495 psig |
| Packing format | Multi pack |
| PED category | IV |
| Pressure connection notes | Weld nipple d6.5/D10mm |
| Pressure connection size | 3/8 |
| Pressure connection standard | ISO 228-1 |
| Pressure connection type | G |
| Pressure Male/Female | Male |
| Pressure sensing element | Bellows |
| Product accessories | Switches accessories |
| Product description | Pressure Switch |
| Quantity per packing format | 15 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Regulation range [bar] Pe [max] | 28 bar |
| Regulation range [bar] Pe [min] | 10 bar |
| Regulation range [psig] Pe [max] | 406.1 psig |
| Regulation range [psig] Pe [min] | 145 psig |
| Reset function | Manual Max |
| SCIP dossier no. | f62fe422-beda-433a-a602-740419c82c06 |
| SCIP dossier product name | RT Presso_Diff.Presso |
| Serviceable | Contact systems |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE DANFOSS REFRIGERATION AND AIRCONDITIONING EN.pdf | 11 Mbytes |
|
| 017-502166 017-502166 EN_017-513466.pdf | 1 Mbytes |
|
