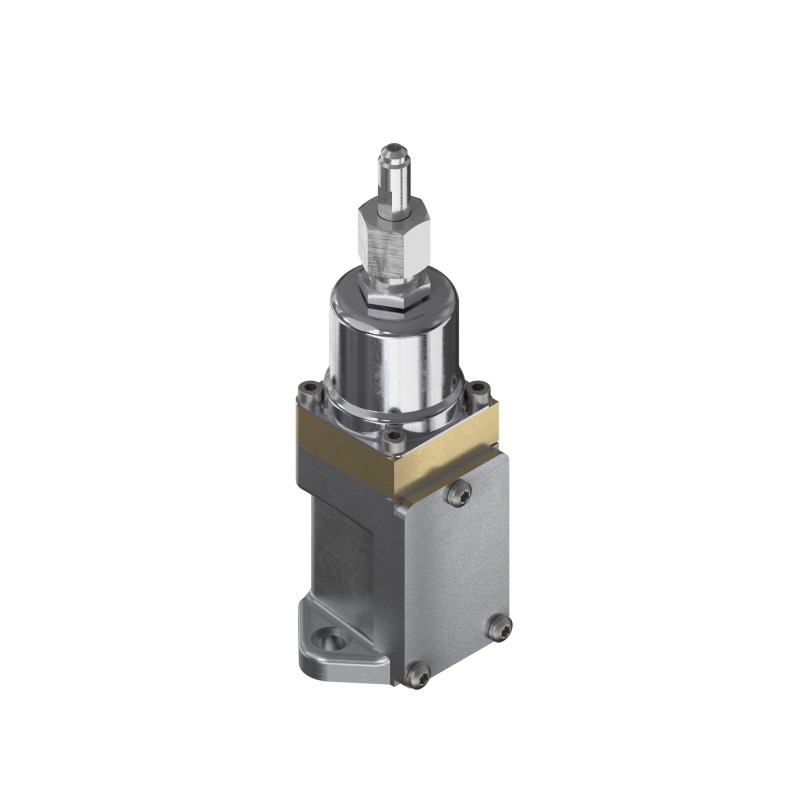

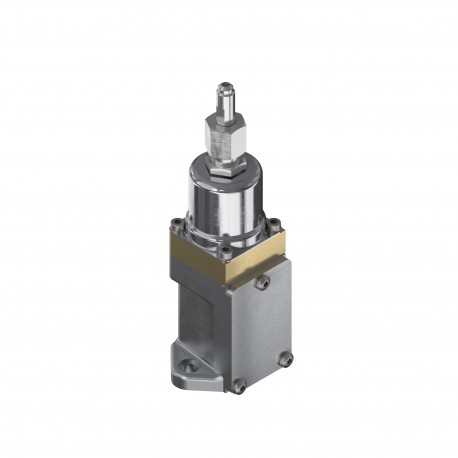

016D1018 DANFOSS REFRIGERATION Pilot for water regulation valve
016D1018
DANFOSS REFRIGERATION
Pilot for water regulation valve
Pilot Unit For WVS 15-29 bar
Pilot for water reg. valve, WVS, 15 bar - 29 bar, 1/4 in - 6 mm
Home > DANFOSS REFRIGERATION
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION
Best sellers
▲More info
▲Control pressure range [bar]: 15 - 29, Connection size (refrigerant): 1/4 in - 6 mm, Connection type (refrigerant): Flare/Weld nipple
Product details
| Gross weight | 0.922 Kilogram |
| Net weight | 0.921 Kilogram |
| Volume | 1.651 Liter |
| EAN | 5702428453448 |
| Type | WVS |
| Product group | Water regulating valves |
| Product Name Description | Pilot for water reg. valve |
| Gross weight | 0.922 Kilogram |
| Net weight | 0.921 Kilogram |
| Volume | 1.651 Liter |
| EAN | 5702428453448 |
| Type | WVS |
| Product group | Water regulating valves |
| Product Name Description | Pilot for water reg. valve |
| China RoHS compliance | Out of scope |
| Connection size (refrigerant) | 1/4 in - 6 mm |
| Connection type (refrigerant) | Flare/Weld nipple |
| Contains batteries | No |
| Control pressure range [bar] [max] | 29 bar |
| Control pressure range [bar] [min] | 15 bar |
| Control pressure range [psig] [max] | 420.6 psig |
| Control pressure range [psig] [min] | 217.5 psig |
| EU RoHS compliance | Out of scope |
| Further information | For high pressure appl. |
| Lubricants compatibility | Oilfree applications |
| Max. Working Pressure [bar] | 45.2 bar |
| Max.test press.(refrig.)[bar] | 60 bar |
| Max.test press.(refrig.)[psig] | 870.2 psig |
| MWP (refrigerant) [bar] | 45.2 bar |
| MWP (refrigerant) [psig] | 655.6 psig |
| Oil free refrigerants | R513A |
| Packing format | Multi pack |
| Parts included | Control element Spring housing |
| Parts Program name | WVS |
| Product accessories | Generic accessories |
| Quantity per packing format | 12 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Refrigerants | R134a R22 R404A R407A R407C R407F R422B R422D R448A R449A R450A R452A R507A R513A |
| SCIP dossier no. | fc3470cc-5810-44ef-89ac-d393613841da |
| SCIP dossier product name | WV Valves |
| Serviceable | Water valve spare parts |
| Used for product | WVS 100 WVS 32 WVS 40 WVS 50 WVS 65 WVS 80 |
| China RoHS compliance | Out of scope |
| Connection size (refrigerant) | 1/4 in - 6 mm |
| Connection type (refrigerant) | Flare/Weld nipple |
| Contains batteries | No |
| Control pressure range [bar] [max] | 29 bar |
| Control pressure range [bar] [min] | 15 bar |
| Control pressure range [psig] [max] | 420.6 psig |
| Control pressure range [psig] [min] | 217.5 psig |
| EU RoHS compliance | Out of scope |
| Further information | For high pressure appl. |
| Lubricants compatibility | Oilfree applications |
| Max. Working Pressure [bar] | 45.2 bar |
| Max.test press.(refrig.)[bar] | 60 bar |
| Max.test press.(refrig.)[psig] | 870.2 psig |
| MWP (refrigerant) [bar] | 45.2 bar |
| MWP (refrigerant) [psig] | 655.6 psig |
| Oil free refrigerants | R513A |
| Packing format | Multi pack |
| Parts included | Control element Spring housing |
| Parts Program name | WVS |
| Product accessories | Generic accessories |
| Quantity per packing format | 12 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Refrigerants | R134a R22 R404A R407A R407C R407F R422B R422D R448A R449A R450A R452A R507A R513A |
| SCIP dossier no. | fc3470cc-5810-44ef-89ac-d393613841da |
| SCIP dossier product name | WV Valves |
| Serviceable | Water valve spare parts |
| Used for product | WVS 100 WVS 32 WVS 40 WVS 50 WVS 65 WVS 80 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE DANFOSS REFRIGERATION AND AIRCONDITIONING EN.pdf | 11 Mbytes |
|
| 016D1018 016D1018 EN_003N1100.pdf | 2 Mbytes |
|
