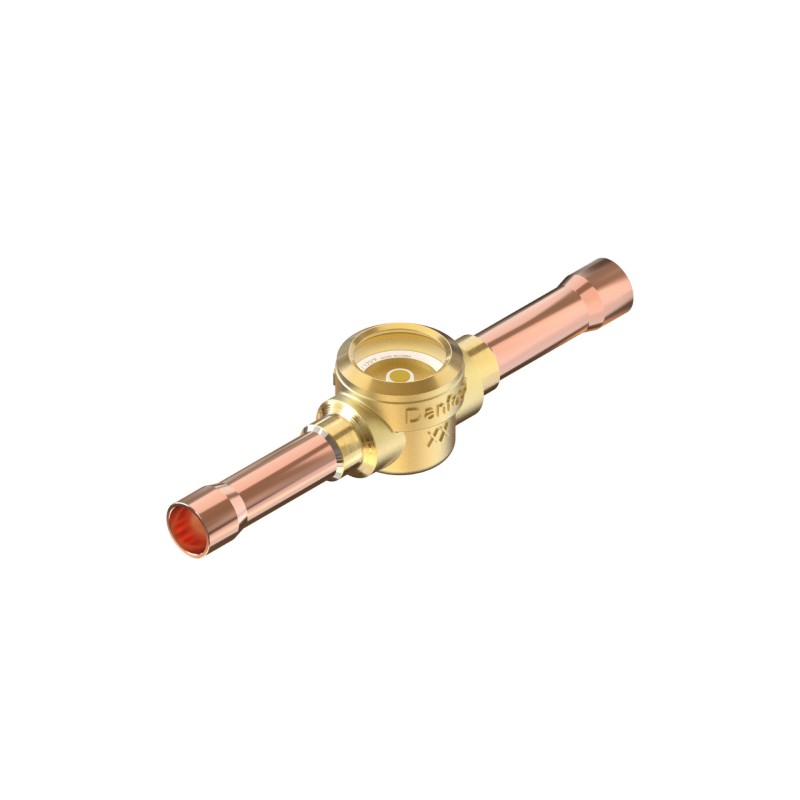

014L0086 DANFOSS REFRIGERATION Sight glass, SGP 12s X
014L0086
DANFOSS REFRIGERATION
Sight glass, SGP 12s X
SGP 12s X Sight Glass M/28
SGP 12s X, Sight glass, Solder, ODF, 1/2 in, Solder, ODF, 1/2 in
Home > DANFOSS REFRIGERATION
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION
Best sellers
▲More info
▲Inlet connection type: Solder, ODF, Inlet size [in]: 1/2 in, Outlet connection type: Solder, ODF, Outlet size [in]: 1/2 in, Packing format: Multi pack, Quantity per packing format: 28
Product details
| Gross weight | 0.184 Kilogram |
| Net weight | 0.165 Kilogram |
| Volume | 0.277 Liter |
| EAN | 5702428818735 |
| Type | SGP 12s X |
| Product group | Sight glasses |
| Product Name Description | Sight glass |
| Gross weight | 0.184 Kilogram |
| Net weight | 0.165 Kilogram |
| Volume | 0.277 Liter |
| EAN | 5702428818735 |
| Type | SGP 12s X |
| Product group | Sight glasses |
| Product Name Description | Sight glass |
| Approval | C UL US LISTED EAC |
| Approval file name | REF. LIQUID INDICATOR 76H4 |
| Body material | Brass |
| China RoHS compliance | Yes with exemptions |
| Connection material | Copper |
| Contains batteries | No |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(c) |
| Ignition source assessment | Yes |
| Inlet connection type | Solder, ODF |
| Inlet size [in] | 1/2 in |
| Lubricants compatibility | Oilfree applications |
| Max. Working Pressure [bar] | 52 bar |
| Max. Working Pressure [psig] | 754 psig |
| Moisture indicator | No indicator |
| Oil free refrigerants | R1234ze(E) R134a R513A R515B |
| Outlet connection type | Solder, ODF |
| Outlet size [in] | 1/2 in |
| Packing format | Multi pack |
| Product accessories | No |
| Quantity per packing format | 28 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Refrigerants | R1233zd(E) R1234yf R1234ze(E) R1270 R134a R22 R290 R32 R404A R407A R407C R407F R407H R410A R448A R449A R450A R452A R452B R454B R454C R455A R463A R507A R513A R515B R600 R600a R744 |
| SCIP dossier no. | fe462a0b-b108-47f9-a3da-419442967513 |
| SCIP dossier product name | SG & SGP without indicator |
| Serviceable | No |
| Temperature range [°C] [max] | 80 °C |
| Temperature range [°C] [min] | -50 °C |
| Temperature range [°F] [max] | 175 °F |
| Temperature range [°F] [min] | -58 °F |
| UL approval file name | REF. LIQUID INDICATOR 76H4 |
| UL approved refrigerants | R1233zd(E) R134a R22 R404A R407A R407C R407F R407H R410A R448A R449A R450A R452A R463A R507A R513A R515B R744 |
| UL mark | Yes |
| Approval | C UL US LISTED EAC |
| Approval file name | REF. LIQUID INDICATOR 76H4 |
| Body material | Brass |
| China RoHS compliance | Yes with exemptions |
| Connection material | Copper |
| Contains batteries | No |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(c) |
| Ignition source assessment | Yes |
| Inlet connection type | Solder, ODF |
| Inlet size [in] | 1/2 in |
| Lubricants compatibility | Oilfree applications |
| Max. Working Pressure [bar] | 52 bar |
| Max. Working Pressure [psig] | 754 psig |
| Moisture indicator | No indicator |
| Oil free refrigerants | R1234ze(E) R134a R513A R515B |
| Outlet connection type | Solder, ODF |
| Outlet size [in] | 1/2 in |
| Packing format | Multi pack |
| Product accessories | No |
| Quantity per packing format | 28 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Refrigerants | R1233zd(E) R1234yf R1234ze(E) R1270 R134a R22 R290 R32 R404A R407A R407C R407F R407H R410A R448A R449A R450A R452A R452B R454B R454C R455A R463A R507A R513A R515B R600 R600a R744 |
| SCIP dossier no. | fe462a0b-b108-47f9-a3da-419442967513 |
| SCIP dossier product name | SG & SGP without indicator |
| Serviceable | No |
| Temperature range [°C] [max] | 80 °C |
| Temperature range [°C] [min] | -50 °C |
| Temperature range [°F] [max] | 175 °F |
| Temperature range [°F] [min] | -58 °F |
| UL approval file name | REF. LIQUID INDICATOR 76H4 |
| UL approved refrigerants | R1233zd(E) R134a R22 R404A R407A R407C R407F R407H R410A R448A R449A R450A R452A R463A R507A R513A R515B R744 |
| UL mark | Yes |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE DANFOSS REFRIGERATION AND AIRCONDITIONING EN.pdf | 11 Mbytes |
|
| 014L0086 014L0086 FR_014L0173.pdf | 2 Mbytes |
|
