Product:MTZ18-4VM DANFOSS REFRIGERATION Reciproc...

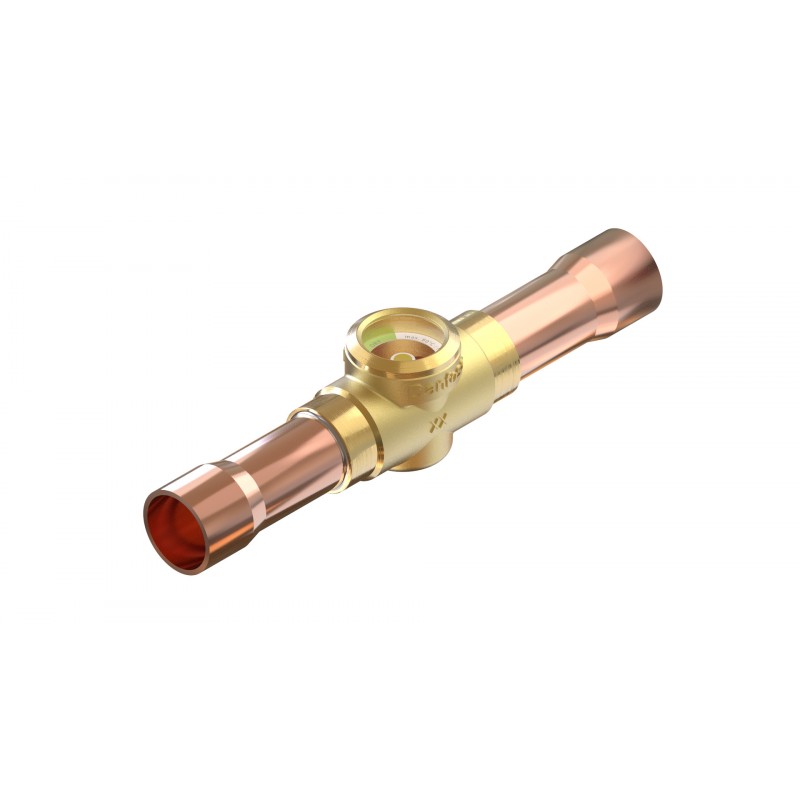

Images are for illustrative purposes only. Please refer to data sheet for details.
Reference: 014L0039
Manufacturer: DANFOSS REFRIGERATION
Description:
Categories:
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION
LAST VIEWED
Inlet connection type: Solder, ODF, Inlet size [mm]: 22, Outlet connection type: Solder, ODF, Outlet size [mm]: 22, Packing format: Multi pack, Quantity per packing format: 28
| Gross weight | 0.32 Kilogram |
| Net weight | 0.297 Kilogram |
| Volume | 0.277 Liter |
| EAN | 5702428839143 |
| Type | SGP 22s I |
| Product group | Sight glasses |
| Product Name Description | Sight glass |
| Gross weight | 0.32 Kilogram |
| Net weight | 0.297 Kilogram |
| Volume | 0.277 Liter |
| EAN | 5702428839143 |
| Type | SGP 22s I |
| Product group | Sight glasses |
| Product Name Description | Sight glass |
| Approval | C UL US LISTED EAC |
| Approval file name | REF. LIQUID INDICATOR 76H4 |
| Body material | Brass |
| China RoHS compliance | Yes with exemptions |
| Connection material | Copper |
| Contains batteries | No |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(c) |
| Green: max moist con@25 °C | R22: 150 ppm R290: 25 ppm R600: 10 ppm R600a: 11 ppm |
| Green: max moist con@43 °C | R22: 250 ppm R290: 50 ppm R600: 28 ppm R600a: 30 ppm |
| Ignition source assessment | Yes |
| Inlet connection type | Solder, ODF |
| Inlet size [in] | 7/8 in |
| Inlet size [mm] | 22 mm |
| Max. Working Pressure [bar] | 52 bar |
| Max. Working Pressure [psig] | 754 psig |
| Moisture indicator | I indicator |
| Other RoHS documentation | Saudi Arabia RoHS |
| Outlet connection type | Solder, ODF |
| Outlet size [in] | 7/8 in |
| Outlet size [mm] | 22 mm |
| Packing format | Multi pack |
| Product accessories | No |
| Quantity per packing format | 28 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) Cobalt dichloride (CAS no. 7646-79-9) |
| Refrigerants | R22 R290 R600 R600a |
| SCIP dossier no. | 967c0700-c0a7-4862-a521-6146e31f5313 |
| SCIP dossier product name | SG & SGP with indicator |
| Serviceable | No |
| Temperature range [°C] [max] | 80 °C |
| Temperature range [°C] [min] | -50 °C |
| Temperature range [°F] [max] | 175 °F |
| Temperature range [°F] [min] | -58 °F |
| UL approval file name | REF. LIQUID INDICATOR 76H4 |
| UL approved refrigerants | R22 |
| UL evaluated | Yes |
| Yellow: min moist con@25 °C | R22: 300 ppm R290: 50 ppm R600: 20 ppm R600a: 22 ppm |
| Yellow: min moist con@43 °C | R22: 500 ppm R290: 100 ppm R600: 55 ppm R600a: 60 ppm |
| Approval | C UL US LISTED EAC |
| Approval file name | REF. LIQUID INDICATOR 76H4 |
| Body material | Brass |
| China RoHS compliance | Yes with exemptions |
| Connection material | Copper |
| Contains batteries | No |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(c) |
| Green: max moist con@25 °C | R22: 150 ppm R290: 25 ppm R600: 10 ppm R600a: 11 ppm |
| Green: max moist con@43 °C | R22: 250 ppm R290: 50 ppm R600: 28 ppm R600a: 30 ppm |
| Ignition source assessment | Yes |
| Inlet connection type | Solder, ODF |
| Inlet size [in] | 7/8 in |
| Inlet size [mm] | 22 mm |
| Max. Working Pressure [bar] | 52 bar |
| Max. Working Pressure [psig] | 754 psig |
| Moisture indicator | I indicator |
| Other RoHS documentation | Saudi Arabia RoHS |
| Outlet connection type | Solder, ODF |
| Outlet size [in] | 7/8 in |
| Outlet size [mm] | 22 mm |
| Packing format | Multi pack |
| Product accessories | No |
| Quantity per packing format | 28 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) Cobalt dichloride (CAS no. 7646-79-9) |
| Refrigerants | R22 R290 R600 R600a |
| SCIP dossier no. | 967c0700-c0a7-4862-a521-6146e31f5313 |
| SCIP dossier product name | SG & SGP with indicator |
| Serviceable | No |
| Temperature range [°C] [max] | 80 °C |
| Temperature range [°C] [min] | -50 °C |
| Temperature range [°F] [max] | 175 °F |
| Temperature range [°F] [min] | -58 °F |
| UL approval file name | REF. LIQUID INDICATOR 76H4 |
| UL approved refrigerants | R22 |
| UL evaluated | Yes |
| Yellow: min moist con@25 °C | R22: 300 ppm R290: 50 ppm R600: 20 ppm R600a: 22 ppm |
| Yellow: min moist con@43 °C | R22: 500 ppm R290: 100 ppm R600: 55 ppm R600a: 60 ppm |
