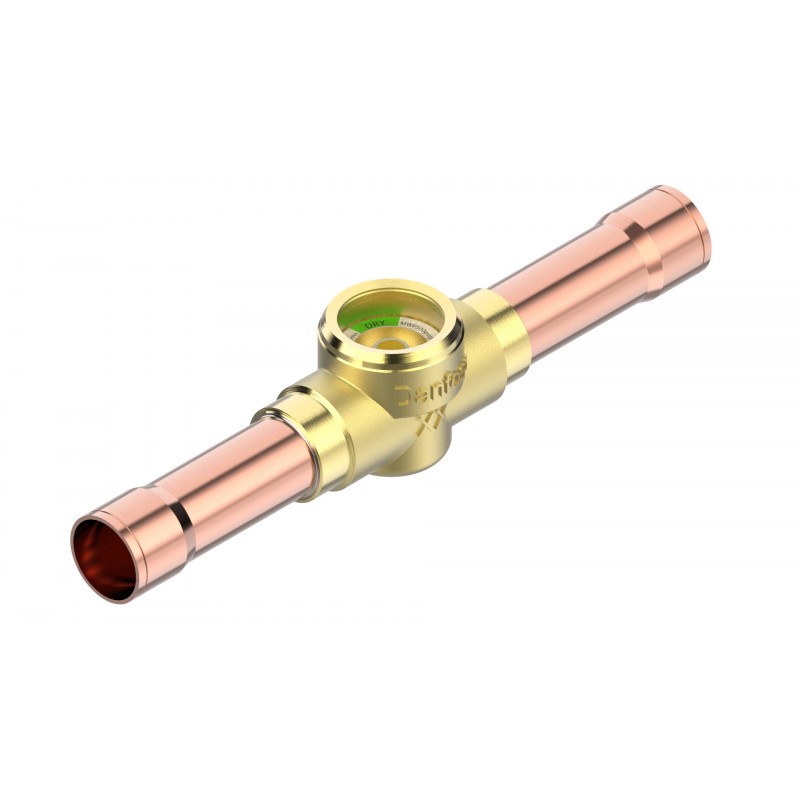

014-1694 DANFOSS REFRIGERATION Sight glass, SGH 16s
014-1694
DANFOSS REFRIGERATION
54
Sight glass, SGH 16s
SGH 16s, Sight glass, Solder, ODF, 16 mm, Solder, ODF, 16 mm
Home > DANFOSS REFRIGERATION
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION
Best sellers
▲More info
▲Inlet connection type: Solder, ODF, Inlet size [mm]: 16, Outlet connection type: Solder, ODF, Outlet size [mm]: 16, Packing format: Industrial pack, Quantity per packing format: 54
Product details
| Gross weight | 0.22 Kilogram |
| Net weight | 0.149 Kilogram |
| Volume | 0.417 Liter |
| EAN | 5702428081856 |
| Type | SGH 16s |
| Product group | Sight glasses |
| Product Name Description | Sight glass |
| Gross weight | 0.22 Kilogram |
| Net weight | 0.149 Kilogram |
| Volume | 0.417 Liter |
| EAN | 5702428081856 |
| Type | SGH 16s |
| Product group | Sight glasses |
| Product Name Description | Sight glass |
| Body material | Brass |
| China RoHS compliance | Yes with exemptions |
| Connection material | Copper |
| Contains batteries | No |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(c) |
| Green: max moist con@25 °C | R410A: 25 ppm |
| Green: max moist con@43 °C | R410A: 60 ppm |
| Inlet connection type | Solder, ODF |
| Inlet size [in] | 5/8 in |
| Inlet size [mm] | 16 mm |
| Max. Working Pressure [bar] | 46 bar |
| Max. Working Pressure [psig] | 667 psig |
| Moisture indicator | H indicator |
| Outlet connection type | Solder, ODF |
| Outlet size [in] | 5/8 in |
| Outlet size [mm] | 16 mm |
| Packing format | Industrial pack |
| Product accessories | No |
| Quantity per packing format | 54 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) Cobalt dichloride (CAS no. 7646-79-9) |
| Refrigerants | R410A |
| SCIP dossier no. | 967c0700-c0a7-4862-a521-6146e31f5313 |
| SCIP dossier product name | SG & SGP with indicator |
| Serviceable | No |
| Temperature range [°C] [max] | 80 °C |
| Temperature range [°C] [min] | -50 °C |
| Temperature range [°F] [max] | 175 °F |
| Temperature range [°F] [min] | -58 °F |
| Yellow: min moist con@25 °C | R410A: 165 ppm |
| Yellow: min moist con@43 °C | R410A: 500 ppm |
| Body material | Brass |
| China RoHS compliance | Yes with exemptions |
| Connection material | Copper |
| Contains batteries | No |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(c) |
| Green: max moist con@25 °C | R410A: 25 ppm |
| Green: max moist con@43 °C | R410A: 60 ppm |
| Inlet connection type | Solder, ODF |
| Inlet size [in] | 5/8 in |
| Inlet size [mm] | 16 mm |
| Max. Working Pressure [bar] | 46 bar |
| Max. Working Pressure [psig] | 667 psig |
| Moisture indicator | H indicator |
| Outlet connection type | Solder, ODF |
| Outlet size [in] | 5/8 in |
| Outlet size [mm] | 16 mm |
| Packing format | Industrial pack |
| Product accessories | No |
| Quantity per packing format | 54 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) Cobalt dichloride (CAS no. 7646-79-9) |
| Refrigerants | R410A |
| SCIP dossier no. | 967c0700-c0a7-4862-a521-6146e31f5313 |
| SCIP dossier product name | SG & SGP with indicator |
| Serviceable | No |
| Temperature range [°C] [max] | 80 °C |
| Temperature range [°C] [min] | -50 °C |
| Temperature range [°F] [max] | 175 °F |
| Temperature range [°F] [min] | -58 °F |
| Yellow: min moist con@25 °C | R410A: 165 ppm |
| Yellow: min moist con@43 °C | R410A: 500 ppm |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE DANFOSS REFRIGERATION AND AIRCONDITIONING EN.pdf | 11 Mbytes |
|
| 014-1694 014-1694 FR_014L0173.pdf | 2 Mbytes |
|
