014-1096
DANFOSS REFRIGERATION
1

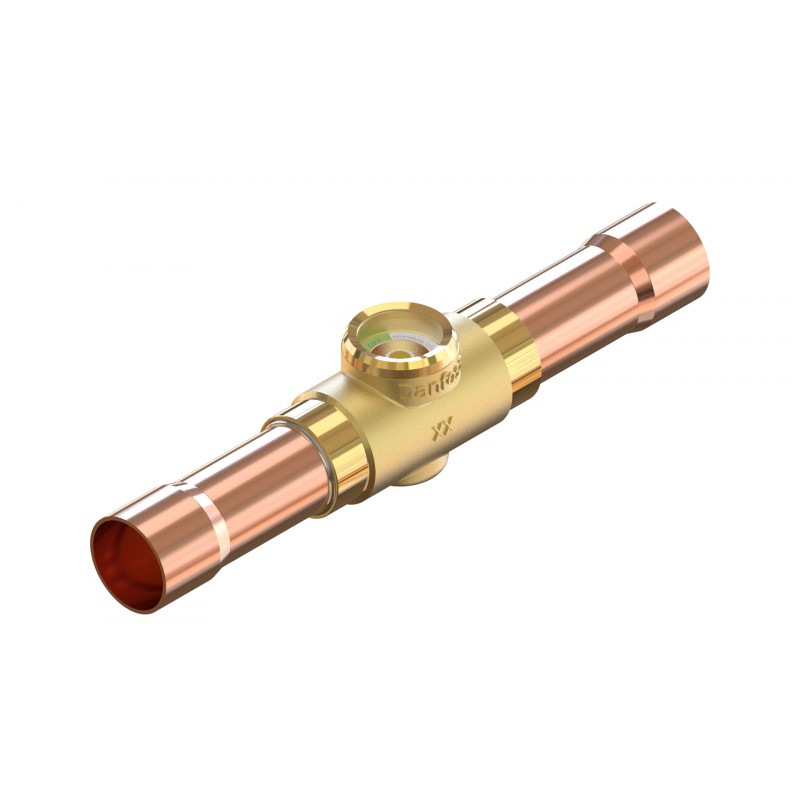

Sight glass, SGH 22s
SGH 22s, Sight glass, Solder, ODF, 22.00 mm, Solder, ODF, 22.00 mm
Home > DANFOSS REFRIGERATION
* Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION
Thank you for your interest in our products; we hope the delivery time indicated is to your convenience.
While the order is being processed you can select the type of shipment that best suits your needs: 24-hour air express, standard 48-72 hour land, etc.
Inlet connection type: Solder, ODF, Inlet size [mm]: 22.00, Outlet connection type: Solder, ODF, Outlet size [mm]: 22.00
Gross weight | 0.304 Kg |
Net weight | 0.249 Kg |
Volume | 0.304 Liter |
EAN | 5702428288897 |
Gross weight | 0.304 Kg |
Net weight | 0.249 Kg |
Volume | 0.304 Liter |
EAN | 5702428288897 |
Body material | Brass |
Connection material | Copper |
EU RoHS compliance | Yes with exemptions |
Green: max moist con@25 °C | R410A: 25 ppm |
Green: max moist con@43 °C | R410A: 60 ppm |
In scope of WEEE and contain batteries | No |
Inlet connection type | Solder, ODF |
Inlet size [in] | 7/8 in |
Inlet size [mm] | 22 mm |
Max. Working Pressure [bar] | 46 bar |
Max. Working Pressure [psig] | 667 psig |
Moisture indicator | H indicator |
Outlet connection type | Solder, ODF |
Outlet size [in] | 7/8 in |
Outlet size [mm] | 22 mm |
Packing format | Multi pack |
Product accessories | No |
Product group | Sight glasses |
Product Name Description | Sight glass |
Quantity per packing format | 28 pc |
REACH Candidate List substances | Lead (CAS no. 7439-92-1) Cobalt dichloride (CAS no. 7646-79-9) |
Refrigerants | R410A |
SCIP dossier no. | 323c7b85-ff73-43cd-8fce-a44eabbf5297 |
Serviceable | No |
Temperature range [°C] [max] | 80 °C |
Temperature range [°C] [min] | -50 °C |
Temperature range [°F] [max] | 175 °F |
Temperature range [°F] [min] | -58 °F |
Type | SGH 22s |
Yellow: min moist con@25 °C | R410A: 165 ppm |
Yellow: min moist con@43 °C | R410A: 500 ppm |
Body material | Brass |
Connection material | Copper |
EU RoHS compliance | Yes with exemptions |
Green: max moist con@25 °C | R410A: 25 ppm |
Green: max moist con@43 °C | R410A: 60 ppm |
In scope of WEEE and contain batteries | No |
Inlet connection type | Solder, ODF |
Inlet size [in] | 7/8 in |
Inlet size [mm] | 22 mm |
Max. Working Pressure [bar] | 46 bar |
Max. Working Pressure [psig] | 667 psig |
Moisture indicator | H indicator |
Outlet connection type | Solder, ODF |
Outlet size [in] | 7/8 in |
Outlet size [mm] | 22 mm |
Packing format | Multi pack |
Product accessories | No |
Product group | Sight glasses |
Product Name Description | Sight glass |
Quantity per packing format | 28 pc |
REACH Candidate List substances | Lead (CAS no. 7439-92-1) Cobalt dichloride (CAS no. 7646-79-9) |
Refrigerants | R410A |
SCIP dossier no. | 323c7b85-ff73-43cd-8fce-a44eabbf5297 |
Serviceable | No |
Temperature range [°C] [max] | 80 °C |
Temperature range [°C] [min] | -50 °C |
Temperature range [°F] [max] | 175 °F |
Temperature range [°F] [min] | -58 °F |
Type | SGH 22s |
Yellow: min moist con@25 °C | R410A: 165 ppm |
Yellow: min moist con@43 °C | R410A: 500 ppm |
