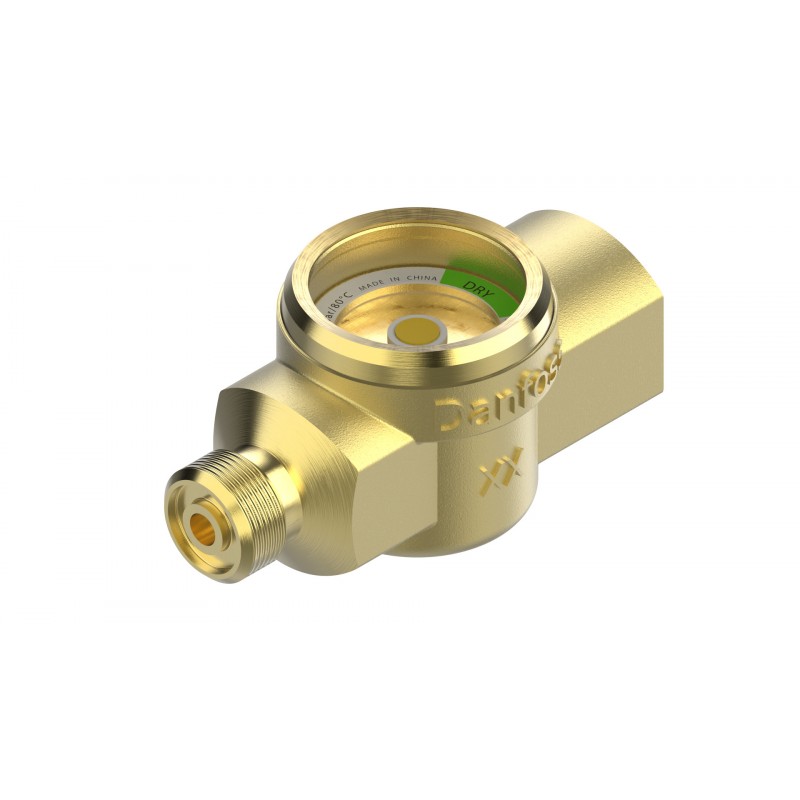

014-1010 DANFOSS REFRIGERATION Sight glass, SGI 6
014-1010
DANFOSS REFRIGERATION
70
Sight glass, SGI 6
SGI 6, Sight glass, Face seal, Face seal
Home > DANFOSS REFRIGERATION
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION
Best sellers
▲More info
▲Inlet connection type: Face seal, Outlet connection type: Face seal, Packing format: Industrial pack, Quantity per packing format: 70
Product details
| Gross weight | 0.207 Kilogram |
| Net weight | 0.101 Kilogram |
| Volume | 0.17 Liter |
| EAN | 5702422153351 |
| Type | SGI 6 |
| Product group | Sight glasses |
| Product Name Description | Sight glass |
| Gross weight | 0.207 Kilogram |
| Net weight | 0.101 Kilogram |
| Volume | 0.17 Liter |
| EAN | 5702422153351 |
| Type | SGI 6 |
| Product group | Sight glasses |
| Product Name Description | Sight glass |
| Body material | Brass |
| China RoHS compliance | Yes with exemptions |
| Connection material | Brass |
| Contains batteries | No |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(c) |
| Green: max moist con@25 °C | R22: 150 ppm |
| Green: max moist con@43 °C | R22: 250 ppm |
| Inlet connection type | Face seal |
| Inlet Internal/External | Internal |
| Inlet size [in] | 1/4 in |
| Max. Working Pressure [bar] | 35 bar |
| Max. Working Pressure [psig] | 500 psig |
| Moisture indicator | I indicator |
| Outlet connection type | Face seal |
| Outlet Internal/External | External |
| Outlet size [in] | 1/4 in |
| Packing format | Industrial pack |
| Product accessories | No |
| Quantity per packing format | 70 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) Cobalt dichloride (CAS no. 7646-79-9) |
| Refrigerants | R22 |
| SCIP dossier no. | 967c0700-c0a7-4862-a521-6146e31f5313 |
| SCIP dossier product name | SG & SGP with indicator |
| Serviceable | No |
| Temperature range [°C] [max] | 80 °C |
| Temperature range [°C] [min] | -50 °C |
| Temperature range [°F] [max] | 175 °F |
| Temperature range [°F] [min] | -58 °F |
| Yellow: min moist con@25 °C | R22: 300 ppm |
| Yellow: min moist con@43 °C | R22: 500 ppm |
| Body material | Brass |
| China RoHS compliance | Yes with exemptions |
| Connection material | Brass |
| Contains batteries | No |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(c) |
| Green: max moist con@25 °C | R22: 150 ppm |
| Green: max moist con@43 °C | R22: 250 ppm |
| Inlet connection type | Face seal |
| Inlet Internal/External | Internal |
| Inlet size [in] | 1/4 in |
| Max. Working Pressure [bar] | 35 bar |
| Max. Working Pressure [psig] | 500 psig |
| Moisture indicator | I indicator |
| Outlet connection type | Face seal |
| Outlet Internal/External | External |
| Outlet size [in] | 1/4 in |
| Packing format | Industrial pack |
| Product accessories | No |
| Quantity per packing format | 70 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) Cobalt dichloride (CAS no. 7646-79-9) |
| Refrigerants | R22 |
| SCIP dossier no. | 967c0700-c0a7-4862-a521-6146e31f5313 |
| SCIP dossier product name | SG & SGP with indicator |
| Serviceable | No |
| Temperature range [°C] [max] | 80 °C |
| Temperature range [°C] [min] | -50 °C |
| Temperature range [°F] [max] | 175 °F |
| Temperature range [°F] [min] | -58 °F |
| Yellow: min moist con@25 °C | R22: 300 ppm |
| Yellow: min moist con@43 °C | R22: 500 ppm |
