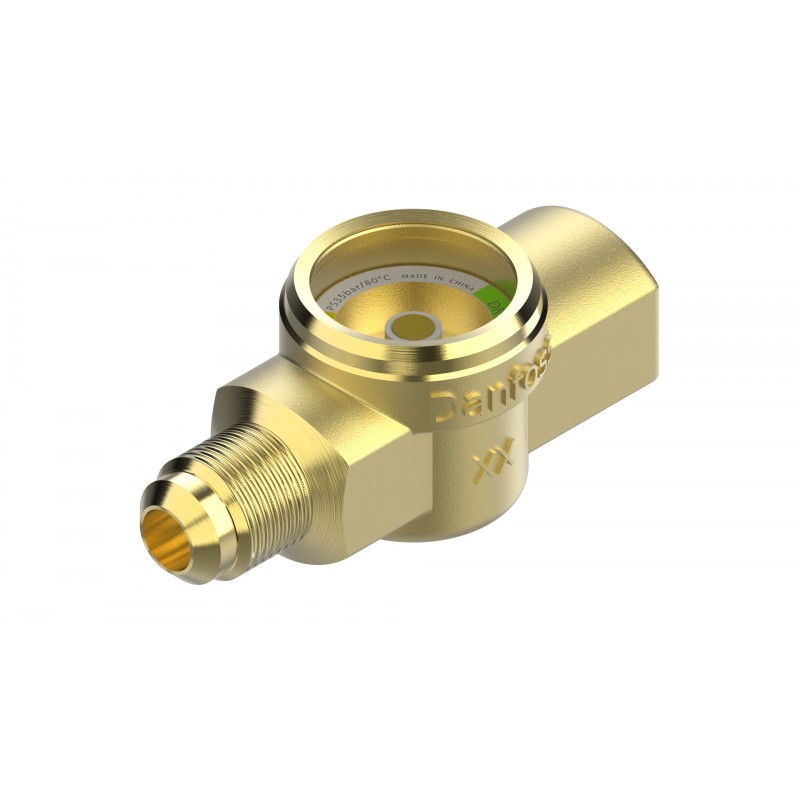

014-0172 DANFOSS REFRIGERATION Sight glass, SGN 10
014-0172
DANFOSS REFRIGERATION
Sight glass, SGN 10
SGN 10 Sight Glass M/24x3
SGN 10, Sight glass, Flare, 10.00 mm, Flare, 10.00 mm
Home > DANFOSS REFRIGERATION
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION
Best sellers
▲More info
▲Inlet connection type: Flare, Inlet size [mm]: 10.00, Outlet connection type: Flare, Outlet size [mm]: 10.00
Product details
| Gross weight | 0.208 Kilogram |
| Net weight | 0.193 Kilogram |
| Volume | 0.138 Liter |
| EAN | 5702422104100 |
| Gross weight | 0.208 Kilogram |
| Net weight | 0.193 Kilogram |
| Volume | 0.138 Liter |
| EAN | 5702422104100 |
| Body material | Brass |
| China RoHS compliance | Yes exceed limitations |
| Connection material | Brass |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(c) |
| Green: max moist con@25 °C | R134a: 30 ppm R22: 30 ppm R404A: 20 ppm R407A: 29 ppm R407C: 30 ppm R407F: 30 ppm R448A: 28 ppm R449A: 29 ppm R450A: 23 ppm R452A: 20 ppm R507A: 15 ppm R513A: 22 ppm |
| Green: max moist con@43 °C | R134a: 45 ppm R22: 50 ppm R404A: 25 ppm R407A: 48 ppm R407C: 60 ppm R407F: 60 ppm R448A: 70 ppm R449A: 53 ppm R450A: 46 ppm R452A: 30 ppm R507A: 30 ppm R513A: 22 ppm |
| Identical product | 014-0124 |
| In scope of WEEE and contain batteries | No |
| Inlet connection type | Flare |
| Inlet Internal/External | Internal |
| Inlet size [in] | 3/8 in |
| Inlet size [mm] | 10 mm |
| Lubricants compatibility | Oilfree applications |
| Max. Working Pressure [bar] | 35 bar |
| Max. Working Pressure [psig] | 500 psig |
| Moisture indicator | N indicator |
| Oil free refrigerants | R134a R513A |
| Outlet connection type | Flare |
| Outlet Internal/External | External |
| Outlet size [in] | 3/8 in |
| Outlet size [mm] | 10 mm |
| Packing format | Multi pack |
| Product accessories | Generic accessories |
| Product group | Sight glasses |
| Product Name Description | Sight glass |
| Quantity per packing format | 24 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) Cobalt dichloride (CAS no. 7646-79-9) |
| Refrigerants | R1233zd(E) R1234yf R1234ze(E) R134a R22 R404A R407A R407C R407F R448A R449A R450A R452A R507A R513A |
| SCIP dossier no. | 323c7b85-ff73-43cd-8fce-a44eabbf5297 |
| Serviceable | No |
| Temperature range [°C] [max] | 80 °C |
| Temperature range [°C] [min] | -50 °C |
| Temperature range [°F] [max] | 175 °F |
| Temperature range [°F] [min] | -58 °F |
| Type | SGN 10 |
| UK RoHS compliance | Out of scope |
| Yellow: min moist con@25 °C | R134a: 100 ppm R22: 120 ppm R404A: 70 ppm R407A: 115 ppm R407C: 140 ppm R407F: 168 ppm R448A: 110 ppm R449A: 105 ppm R450A: 148 ppm R452A: 79 ppm R507A: 60 ppm R513A: 75 ppm |
| Yellow: min moist con@43 °C | R134a: 170 ppm R22: 200 ppm R404A: 100 ppm R407A: 192 ppm R407C: 225 ppm R407F: 240 ppm R448A: 227 ppm R449A: 200 ppm R450A: 245 ppm R452A: 143 ppm R507A: 110 ppm R513A: 123 ppm |
| Body material | Brass |
| China RoHS compliance | Yes exceed limitations |
| Connection material | Brass |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(c) |
| Green: max moist con@25 °C | R134a: 30 ppm R22: 30 ppm R404A: 20 ppm R407A: 29 ppm R407C: 30 ppm R407F: 30 ppm R448A: 28 ppm R449A: 29 ppm R450A: 23 ppm R452A: 20 ppm R507A: 15 ppm R513A: 22 ppm |
| Green: max moist con@43 °C | R134a: 45 ppm R22: 50 ppm R404A: 25 ppm R407A: 48 ppm R407C: 60 ppm R407F: 60 ppm R448A: 70 ppm R449A: 53 ppm R450A: 46 ppm R452A: 30 ppm R507A: 30 ppm R513A: 22 ppm |
| Identical product | 014-0124 |
| In scope of WEEE and contain batteries | No |
| Inlet connection type | Flare |
| Inlet Internal/External | Internal |
| Inlet size [in] | 3/8 in |
| Inlet size [mm] | 10 mm |
| Lubricants compatibility | Oilfree applications |
| Max. Working Pressure [bar] | 35 bar |
| Max. Working Pressure [psig] | 500 psig |
| Moisture indicator | N indicator |
| Oil free refrigerants | R134a R513A |
| Outlet connection type | Flare |
| Outlet Internal/External | External |
| Outlet size [in] | 3/8 in |
| Outlet size [mm] | 10 mm |
| Packing format | Multi pack |
| Product accessories | Generic accessories |
| Product group | Sight glasses |
| Product Name Description | Sight glass |
| Quantity per packing format | 24 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) Cobalt dichloride (CAS no. 7646-79-9) |
| Refrigerants | R1233zd(E) R1234yf R1234ze(E) R134a R22 R404A R407A R407C R407F R448A R449A R450A R452A R507A R513A |
| SCIP dossier no. | 323c7b85-ff73-43cd-8fce-a44eabbf5297 |
| Serviceable | No |
| Temperature range [°C] [max] | 80 °C |
| Temperature range [°C] [min] | -50 °C |
| Temperature range [°F] [max] | 175 °F |
| Temperature range [°F] [min] | -58 °F |
| Type | SGN 10 |
| UK RoHS compliance | Out of scope |
| Yellow: min moist con@25 °C | R134a: 100 ppm R22: 120 ppm R404A: 70 ppm R407A: 115 ppm R407C: 140 ppm R407F: 168 ppm R448A: 110 ppm R449A: 105 ppm R450A: 148 ppm R452A: 79 ppm R507A: 60 ppm R513A: 75 ppm |
| Yellow: min moist con@43 °C | R134a: 170 ppm R22: 200 ppm R404A: 100 ppm R407A: 192 ppm R407C: 225 ppm R407F: 240 ppm R448A: 227 ppm R449A: 200 ppm R450A: 245 ppm R452A: 143 ppm R507A: 110 ppm R513A: 123 ppm |
