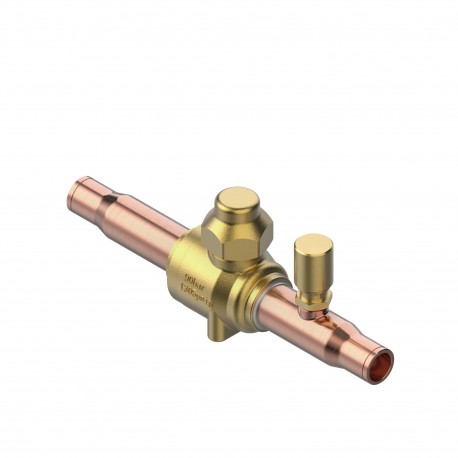

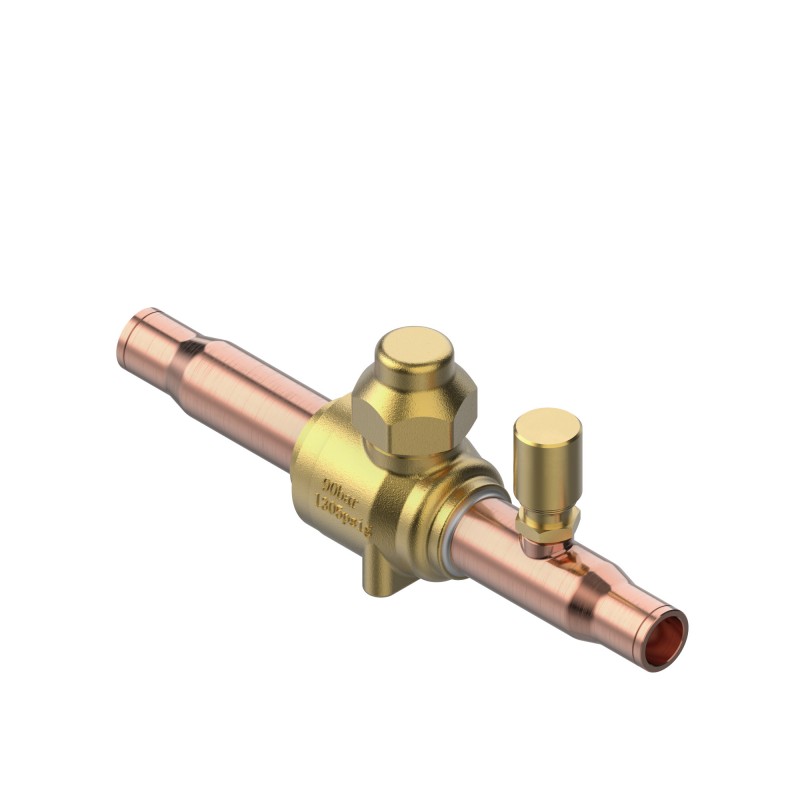

009L7583 DANFOSS REFRIGERATION Shut-off ball valve, GBCH 10s
009L7583
DANFOSS REFRIGERATION
Shut-off ball valve, GBCH 10s
Home > DANFOSS REFRIGERATION
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION
Best sellers
▲More info
▲Inlet connection type: Solder, ODF, Outlet connection type: Solder, ODF, Inlet size [mm]: 10, Outlet size [mm]: 10
Product details
| Gross weight | 0.305 Kilogram |
| Net weight | 0.246 Kilogram |
| Volume | 0.795 Liter |
| EAN | 5702428514996 |
| Type | GBCH 10s |
| Product group | Shut-off and regulating valves |
| Product Name Description | Shut-off ball valve |
| Gross weight | 0.305 Kilogram |
| Net weight | 0.246 Kilogram |
| Volume | 0.795 Liter |
| EAN | 5702428514996 |
| Type | GBCH 10s |
| Product group | Shut-off and regulating valves |
| Product Name Description | Shut-off ball valve |
| Access port | Yes |
| Approval | UKCA |
| Body material | Brass |
| CE mark | Yes |
| China RoHS compliance | Yes with exemptions |
| Connection material | Copper |
| Contains batteries | No |
| Cv value [gal/min] | 7.29 gal/min |
| Direction | Straightway |
| Equipment | Cap w. wire seal |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(c) |
| Flow direction | Bi-flow |
| Flow direction indicator | Embossed 2-way arrow |
| Fluid Group | 2 |
| Ignition source assessment | Yes |
| Inlet connection type | Solder, ODF |
| Inlet size [mm] | 10 mm |
| Kv value [m³/h] | 6.31 m³/h |
| Max. Working Pressure [bar] | 90 bar |
| Max. Working Pressure [psig] | 1305 psig |
| Outlet connection type | Solder, ODF |
| Outlet size [mm] | 10 mm |
| Packing format | Multi pack |
| Panel mounting option | M4 × 0.7 (2 PC) |
| Parts included | Schrader valve |
| PED category | Art. 4, par. 3 |
| Product accessories | BM/GBC valve accessories |
| Quantity per packing format | 25 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Refrigerants | R744 |
| SCIP dossier no. | a78b0968-a1ed-482b-b905-9e5b8f9d8ae3 |
| SCIP dossier product name | GBC H V1 |
| Serviceable | BM/GBC valve spare parts |
| Temperature range [°C] [max] | 100 °C |
| Temperature range [°C] [min] | -40 °C |
| Temperature range [°F] [max] | 212 °F |
| Temperature range [°F] [min] | -40 °F |
| Access port | Yes |
| Approval | UKCA |
| Body material | Brass |
| CE mark | Yes |
| China RoHS compliance | Yes with exemptions |
| Connection material | Copper |
| Contains batteries | No |
| Cv value [gal/min] | 7.29 gal/min |
| Direction | Straightway |
| Equipment | Cap w. wire seal |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(c) |
| Flow direction | Bi-flow |
| Flow direction indicator | Embossed 2-way arrow |
| Fluid Group | 2 |
| Ignition source assessment | Yes |
| Inlet connection type | Solder, ODF |
| Inlet size [mm] | 10 mm |
| Kv value [m³/h] | 6.31 m³/h |
| Max. Working Pressure [bar] | 90 bar |
| Max. Working Pressure [psig] | 1305 psig |
| Outlet connection type | Solder, ODF |
| Outlet size [mm] | 10 mm |
| Packing format | Multi pack |
| Panel mounting option | M4 × 0.7 (2 PC) |
| Parts included | Schrader valve |
| PED category | Art. 4, par. 3 |
| Product accessories | BM/GBC valve accessories |
| Quantity per packing format | 25 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Refrigerants | R744 |
| SCIP dossier no. | a78b0968-a1ed-482b-b905-9e5b8f9d8ae3 |
| SCIP dossier product name | GBC H V1 |
| Serviceable | BM/GBC valve spare parts |
| Temperature range [°C] [max] | 100 °C |
| Temperature range [°C] [min] | -40 °C |
| Temperature range [°F] [max] | 212 °F |
| Temperature range [°F] [min] | -40 °F |
