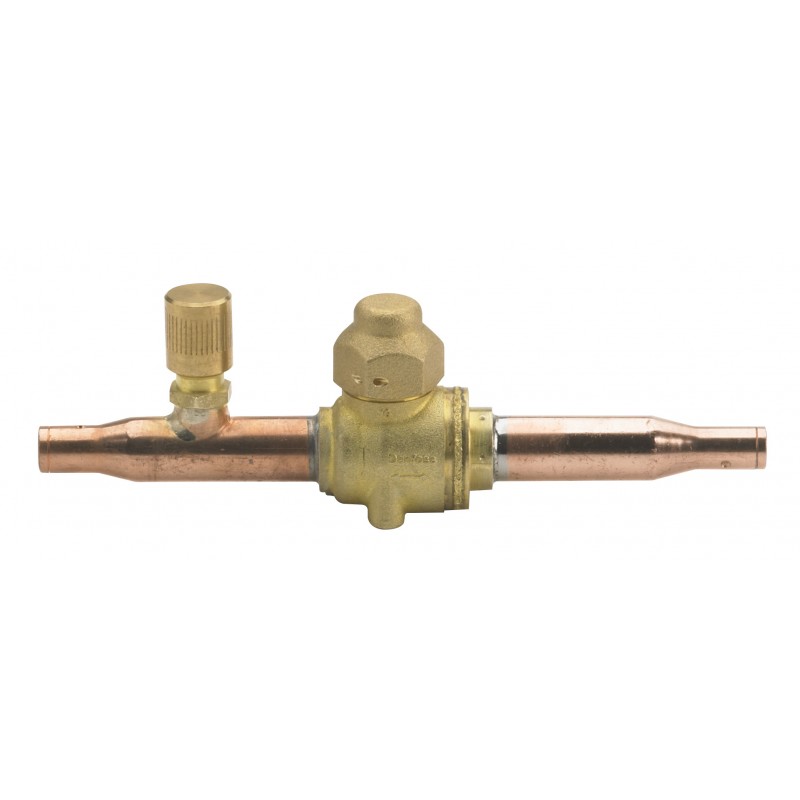

DANFOSS REFRIGERATION 009L7553 009L7553 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

009L7553 DANFOSS REFRIGERATION Shut-off ball valve, GBC 6s

Reference: 009L7553

Manufacturer: DANFOSS REFRIGERATION

Description:

Shut-off ball valve, GBC 6s

Categories:

  • DANFOSS REFRIGERATION

Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION

  • More Info
  • Reviews
Guarantee, repair and return.

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

LAST VIEWED

MORE INFO

Inlet connection type: Solder, ODF, Outlet connection type: Solder, ODF, Inlet size [in]: 1/4 in, Outlet size [in]: 1/4 in

Product details

Gross weight0.287 Kilogram
Net weight0.2 Kilogram
Volume0.788 Liter
EAN5702428515214
TypeGBC 6s
Product groupShut-off and regulating valves
Product Name DescriptionShut-off ball valve
Gross weight0.287 Kilogram
Net weight0.2 Kilogram
Volume0.788 Liter
EAN5702428515214
TypeGBC 6s
Product groupShut-off and regulating valves
Product Name DescriptionShut-off ball valve

Access portYes
ApprovalC UL US LISTED
EAC
Body materialBrass
CE markYes
China RoHS complianceYes with exemptions
Connection materialCopper
Contains batteriesNo
Cv value [gal/min]2.01 gal/min
DirectionStraightway
EquipmentCap w. wire seal
EU RoHS complianceYes with exemptions
EU RoHS exemption clause6(c)
Flow directionSingle-flow
Flow direction indicatorEmbossed 1-way arrow
Fluid Group2
Ignition source assessmentYes
Inlet connection typeSolder, ODF
Inlet size [in]1/4 in
Kv value [m³/h]1.74 m³/h
Max. Working Pressure [bar]45 bar
Max. Working Pressure [psig]650 psig
Outlet connection typeSolder, ODF
Outlet size [in]1/4 in
Packing formatMulti pack
Panel mounting optionM4 × 0.7 (2 PC)
Parts includedSchrader valve
PED categoryArt. 4, par. 3
Product accessoriesBM/GBC valve accessories
Quantity per packing format25 pc
REACH Candidate List substancesLead (CAS no. 7439-92-1)
RefrigerantsR744
SCIP dossier no.019a06ad-0408-4a37-911f-0bf0c5f7001a
SCIP dossier product nameCO2 GBC 45 bar V2 with AP
ServiceableBM/GBC valve spare parts
Temperature range [°C] [max]100 °C
Temperature range [°C] [min]-40 °C
Temperature range [°F] [max]212 °F
Temperature range [°F] [min]-40 °F
UL approved refrigerantsR744
UL markYes
Access portYes
ApprovalC UL US LISTED
EAC
Body materialBrass
CE markYes
China RoHS complianceYes with exemptions
Connection materialCopper
Contains batteriesNo
Cv value [gal/min]2.01 gal/min
DirectionStraightway
EquipmentCap w. wire seal
EU RoHS complianceYes with exemptions
EU RoHS exemption clause6(c)
Flow directionSingle-flow
Flow direction indicatorEmbossed 1-way arrow
Fluid Group2
Ignition source assessmentYes
Inlet connection typeSolder, ODF
Inlet size [in]1/4 in
Kv value [m³/h]1.74 m³/h
Max. Working Pressure [bar]45 bar
Max. Working Pressure [psig]650 psig
Outlet connection typeSolder, ODF
Outlet size [in]1/4 in
Packing formatMulti pack
Panel mounting optionM4 × 0.7 (2 PC)
Parts includedSchrader valve
PED categoryArt. 4, par. 3
Product accessoriesBM/GBC valve accessories
Quantity per packing format25 pc
REACH Candidate List substancesLead (CAS no. 7439-92-1)
RefrigerantsR744
SCIP dossier no.019a06ad-0408-4a37-911f-0bf0c5f7001a
SCIP dossier product nameCO2 GBC 45 bar V2 with AP
ServiceableBM/GBC valve spare parts
Temperature range [°C] [max]100 °C
Temperature range [°C] [min]-40 °C
Temperature range [°F] [max]212 °F
Temperature range [°F] [min]-40 °F
UL approved refrigerantsR744
UL markYes
