DANFOSS REFRIGERATION009L7420 DANFOSS REFRIGERATION Shut-off ball valve
DANFOSS REFRIGERATION 009L7420 009L7420 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

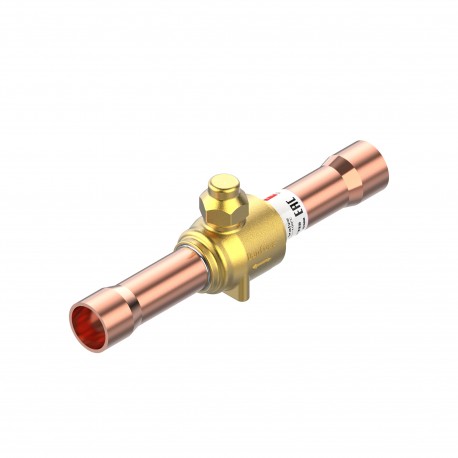

009L7420 DANFOSS REFRIGERATION Shut-off ball valve

Reference: 009L7420

Manufacturer: DANFOSS REFRIGERATION

Description:

Shut-off ball valve
GBCH 22s CO2 90bar Ball Valve M/25
Shut-off ball valve, GBCH 22s

Categories:

  • DANFOSS REFRIGERATION

Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 94,99 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 4-5 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

Inlet connection type: Solder, ODF, Outlet connection type: Solder, ODF, Inlet size [in]: 7/8 in, Outlet size [in]: 7/8 in

Product details

Gross weight0.508 Kilogram
Net weight0.448 Kilogram
Volume0.795 Liter
EAN5702428515337
TypeGBCH 22s
Product groupShut-off and regulating valves
Product Name DescriptionShut-off ball valve
Gross weight0.508 Kilogram
Net weight0.448 Kilogram
Volume0.795 Liter
EAN5702428515337
TypeGBCH 22s
Product groupShut-off and regulating valves
Product Name DescriptionShut-off ball valve

Access portNo
ApprovalUKCA
Body materialBrass
CE markYes
China RoHS complianceYes with exemptions
Connection materialCopper
Contains batteriesNo
Cv value [gal/min]28.29 gal/min
DirectionStraightway
EquipmentCap w. wire seal
EU RoHS complianceYes with exemptions
EU RoHS exemption clause6(c)
Flow directionBi-flow
Flow direction indicatorEmbossed 2-way arrow
Fluid Group2
Ignition source assessmentYes
Inlet connection typeSolder, ODF
Inlet size [in]7/8 in
Kv value [m³/h]24.47 m³/h
Max. Working Pressure [bar]90 bar
Max. Working Pressure [psig]1305 psig
Outlet connection typeSolder, ODF
Outlet size [in]7/8 in
Packing formatMulti pack
Panel mounting optionM4 × 0.7 (2 PC)
PED categoryArt. 4, par. 3
Product accessoriesBM/GBC valve accessories
Quantity per packing format25 pc
REACH Candidate List substancesLead (CAS no. 7439-92-1)
RefrigerantsR744
SCIP dossier no.cac227b8-1cb2-4bdf-b22c-0bd4e896d5e9
SCIP dossier product nameCO2 GBC 90 bar V2 without AP
ServiceableBM/GBC valve spare parts
Temperature range [°C] [max]100 °C
Temperature range [°C] [min]-40 °C
Temperature range [°F] [max]212 °F
Temperature range [°F] [min]-40 °F
Access portNo
ApprovalUKCA
Body materialBrass
CE markYes
China RoHS complianceYes with exemptions
Connection materialCopper
Contains batteriesNo
Cv value [gal/min]28.29 gal/min
DirectionStraightway
EquipmentCap w. wire seal
EU RoHS complianceYes with exemptions
EU RoHS exemption clause6(c)
Flow directionBi-flow
Flow direction indicatorEmbossed 2-way arrow
Fluid Group2
Ignition source assessmentYes
Inlet connection typeSolder, ODF
Inlet size [in]7/8 in
Kv value [m³/h]24.47 m³/h
Max. Working Pressure [bar]90 bar
Max. Working Pressure [psig]1305 psig
Outlet connection typeSolder, ODF
Outlet size [in]7/8 in
Packing formatMulti pack
Panel mounting optionM4 × 0.7 (2 PC)
PED categoryArt. 4, par. 3
Product accessoriesBM/GBC valve accessories
Quantity per packing format25 pc
REACH Candidate List substancesLead (CAS no. 7439-92-1)
RefrigerantsR744
SCIP dossier no.cac227b8-1cb2-4bdf-b22c-0bd4e896d5e9
SCIP dossier product nameCO2 GBC 90 bar V2 without AP
ServiceableBM/GBC valve spare parts
Temperature range [°C] [max]100 °C
Temperature range [°C] [min]-40 °C
Temperature range [°F] [max]212 °F
Temperature range [°F] [min]-40 °F

DATASHEET - PDF

Title
Size
Type
009L7420 009L7420 EN_009L7395.pdf
2 Mbytes
PDF CATALOGUE DANFOSS REFRIGERATION AND AIRCONDITIONING EN
11 Mbytes
