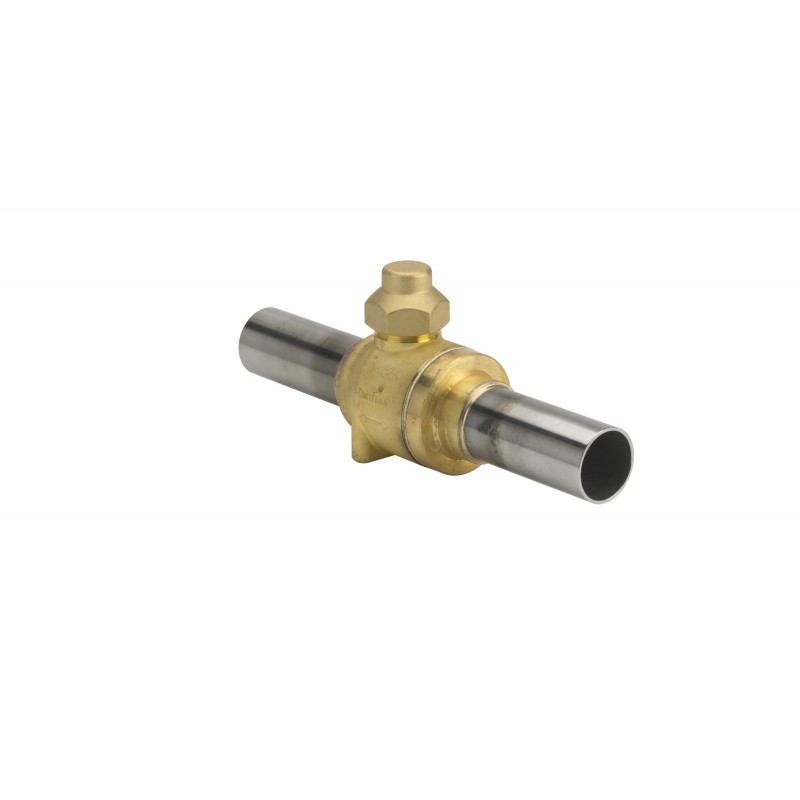

009L7411 DANFOSS REFRIGERATION Shut-off ball valve
009L7411
DANFOSS REFRIGERATION
Shut-off ball valve
GBCH 42s CO2 75bar Ball Valve M/4
Shut-off ball valve, GBCH 42s
Home > DANFOSS REFRIGERATION
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION
Best sellers
▲More info
▲Inlet connection type: Butt weld, Outlet connection type: Butt weld, Inlet size [mm]: 42, Outlet size [mm]: 42
Product details
| Gross weight | 2.775 Kilogram |
| Net weight | 2.401 Kilogram |
| Volume | 4.312 Liter |
| EAN | 5702428515399 |
| Type | GBCH 42s |
| Product group | Shut-off and regulating valves |
| Product Name Description | Shut-off ball valve |
| Gross weight | 2.775 Kilogram |
| Net weight | 2.401 Kilogram |
| Volume | 4.312 Liter |
| EAN | 5702428515399 |
| Type | GBCH 42s |
| Product group | Shut-off and regulating valves |
| Product Name Description | Shut-off ball valve |
| Access port | No |
| Approval | CE |
| Body material | Brass |
| CE mark | Yes |
| China RoHS compliance | Yes with exemptions |
| Connection material | Stainless steel |
| Contains batteries | No |
| Cv value [gal/min] | 174.53 gal/min |
| Direction | Straightway |
| Equipment | Cap w. wire seal |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(c) |
| Flow direction | Bi-flow |
| Flow direction indicator | Embossed 2-way arrow |
| Fluid Group | 2 |
| Ignition source assessment | Yes |
| Inlet connection type | Butt weld |
| Inlet size [mm] | 42 mm |
| Kv value [m³/h] | 150.98 m³/h |
| Max. Working Pressure [bar] | 75 bar |
| Max. Working Pressure [psig] | 1088 psig |
| Outlet connection type | Butt weld |
| Outlet size [mm] | 42 mm |
| Packing format | Multi pack |
| Panel mounting option | M6 × 1.0 (2 PC) |
| PED category | I |
| Product accessories | BM/GBC valve accessories |
| Quantity per packing format | 4 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Refrigerants | R744 |
| SCIP dossier no. | cac227b8-1cb2-4bdf-b22c-0bd4e896d5e9 |
| SCIP dossier product name | CO2 GBC 90 bar V2 without AP |
| Serviceable | BM/GBC valve spare parts |
| Temperature range [°C] [max] | 100 °C |
| Temperature range [°C] [min] | -40 °C |
| Temperature range [°F] [max] | 212 °F |
| Temperature range [°F] [min] | -40 °F |
| Access port | No |
| Approval | CE |
| Body material | Brass |
| CE mark | Yes |
| China RoHS compliance | Yes with exemptions |
| Connection material | Stainless steel |
| Contains batteries | No |
| Cv value [gal/min] | 174.53 gal/min |
| Direction | Straightway |
| Equipment | Cap w. wire seal |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(c) |
| Flow direction | Bi-flow |
| Flow direction indicator | Embossed 2-way arrow |
| Fluid Group | 2 |
| Ignition source assessment | Yes |
| Inlet connection type | Butt weld |
| Inlet size [mm] | 42 mm |
| Kv value [m³/h] | 150.98 m³/h |
| Max. Working Pressure [bar] | 75 bar |
| Max. Working Pressure [psig] | 1088 psig |
| Outlet connection type | Butt weld |
| Outlet size [mm] | 42 mm |
| Packing format | Multi pack |
| Panel mounting option | M6 × 1.0 (2 PC) |
| PED category | I |
| Product accessories | BM/GBC valve accessories |
| Quantity per packing format | 4 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Refrigerants | R744 |
| SCIP dossier no. | cac227b8-1cb2-4bdf-b22c-0bd4e896d5e9 |
| SCIP dossier product name | CO2 GBC 90 bar V2 without AP |
| Serviceable | BM/GBC valve spare parts |
| Temperature range [°C] [max] | 100 °C |
| Temperature range [°C] [min] | -40 °C |
| Temperature range [°F] [max] | 212 °F |
| Temperature range [°F] [min] | -40 °F |
