DANFOSS REFRIGERATION009L7410 DANFOSS REFRIGERATION Shut-off ball valve

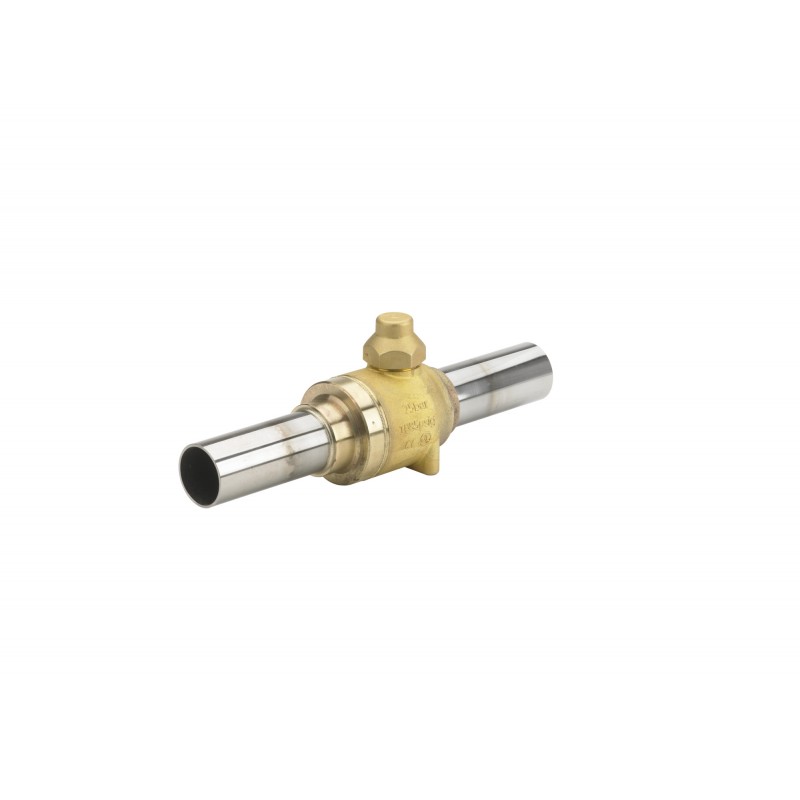

DANFOSS REFRIGERATION 009L7410 009L7410 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

009L7410 DANFOSS REFRIGERATION Shut-off ball valve

Reference: 009L7410

Manufacturer: DANFOSS REFRIGERATION

Description:

Shut-off ball valve
GBCH 35s CO2 75bar Ball Valve M/5
Shut-off ball valve, GBCH 35s

Categories:

  • DANFOSS REFRIGERATION

Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION

  • More Info
  • Reviews
Guarantee, repair and return.

Unit Price: 179,15 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 4-5 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

Inlet connection type: Butt weld, Outlet connection type: Butt weld, Inlet size [mm]: 35, Outlet size [mm]: 35

Product details

Gross weight1.648 Kilogram
Net weight1.469 Kilogram
Volume2.578 Liter
EAN5702428515405
TypeGBCH 35s
Product groupShut-off and regulating valves
Product Name DescriptionShut-off ball valve
Gross weight1.648 Kilogram
Net weight1.469 Kilogram
Volume2.578 Liter
EAN5702428515405
TypeGBCH 35s
Product groupShut-off and regulating valves
Product Name DescriptionShut-off ball valve

Access portNo
ApprovalUKCA
Body materialBrass
CE markYes
China RoHS complianceYes with exemptions
Connection materialStainless steel
Contains batteriesNo
Cv value [gal/min]123.63 gal/min
DirectionStraightway
EquipmentCap w. wire seal
EU RoHS complianceYes with exemptions
EU RoHS exemption clause6(c)
Flow directionBi-flow
Flow direction indicatorEmbossed 2-way arrow
Fluid Group2
Ignition source assessmentYes
Inlet connection typeButt weld
Inlet size [mm]35 mm
Kv value [m³/h]106.95 m³/h
Max. Working Pressure [bar]75 bar
Max. Working Pressure [psig]1088 psig
Outlet connection typeButt weld
Outlet size [mm]35 mm
Packing formatMulti pack
Panel mounting optionM6 × 1.0 (2 PC)
PED categoryArt. 4, par. 3
Product accessoriesBM/GBC valve accessories
Quantity per packing format5 pc
REACH Candidate List substancesLead (CAS no. 7439-92-1)
RefrigerantsR744
SCIP dossier no.cac227b8-1cb2-4bdf-b22c-0bd4e896d5e9
SCIP dossier product nameCO2 GBC 90 bar V2 without AP
ServiceableBM/GBC valve spare parts
Temperature range [°C] [max]100 °C
Temperature range [°C] [min]-40 °C
Temperature range [°F] [max]212 °F
Temperature range [°F] [min]-40 °F
Access portNo
ApprovalUKCA
Body materialBrass
CE markYes
China RoHS complianceYes with exemptions
Connection materialStainless steel
Contains batteriesNo
Cv value [gal/min]123.63 gal/min
DirectionStraightway
EquipmentCap w. wire seal
EU RoHS complianceYes with exemptions
EU RoHS exemption clause6(c)
Flow directionBi-flow
Flow direction indicatorEmbossed 2-way arrow
Fluid Group2
Ignition source assessmentYes
Inlet connection typeButt weld
Inlet size [mm]35 mm
Kv value [m³/h]106.95 m³/h
Max. Working Pressure [bar]75 bar
Max. Working Pressure [psig]1088 psig
Outlet connection typeButt weld
Outlet size [mm]35 mm
Packing formatMulti pack
Panel mounting optionM6 × 1.0 (2 PC)
PED categoryArt. 4, par. 3
Product accessoriesBM/GBC valve accessories
Quantity per packing format5 pc
REACH Candidate List substancesLead (CAS no. 7439-92-1)
RefrigerantsR744
SCIP dossier no.cac227b8-1cb2-4bdf-b22c-0bd4e896d5e9
SCIP dossier product nameCO2 GBC 90 bar V2 without AP
ServiceableBM/GBC valve spare parts
Temperature range [°C] [max]100 °C
Temperature range [°C] [min]-40 °C
Temperature range [°F] [max]212 °F
Temperature range [°F] [min]-40 °F

DATASHEET - PDF

Title
Size
Type
PDF CATALOGUE DANFOSS REFRIGERATION AND AIRCONDITIONING EN
11 Mbytes
