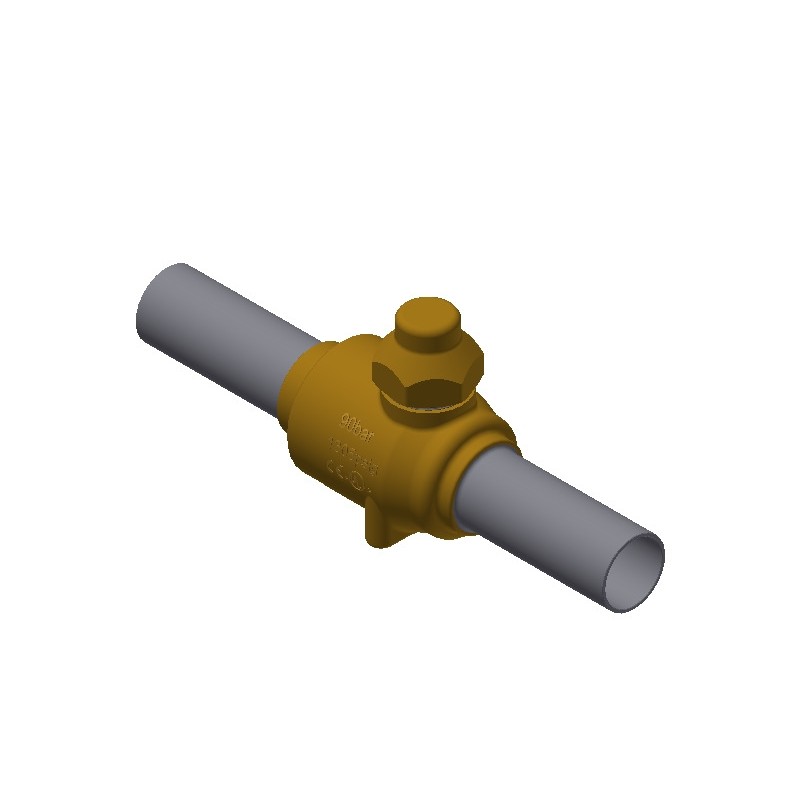

009L7406 DANFOSS REFRIGERATION Shut-off ball valve
Reference: 009L7406
Manufacturer: DANFOSS REFRIGERATION
Description:
Shut-off ball valve
GBCH 28s CO2 90bar Ball Valve M/5
Shut-off ball valve, GBCH 28s
Categories:
- DANFOSS REFRIGERATION
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION
- More Info
- Reviews
* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.
Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.
LAST VIEWED
MORE INFO
Inlet connection type: Butt weld, Outlet connection type: Butt weld, Inlet size [mm]: 28, Outlet size [mm]: 28
Product details
| Gross weight | 1.102 Kilogram |
| Net weight | 0.93 Kilogram |
| Volume | 2.876 Liter |
| EAN | 5702428515412 |
| Type | GBCH 28s |
| Product group | Shut-off and regulating valves |
| Product Name Description | Shut-off ball valve |
| Gross weight | 1.102 Kilogram |
| Net weight | 0.93 Kilogram |
| Volume | 2.876 Liter |
| EAN | 5702428515412 |
| Type | GBCH 28s |
| Product group | Shut-off and regulating valves |
| Product Name Description | Shut-off ball valve |
| Access port | No |
| Approval | UKCA |
| Body material | Brass |
| CE mark | Yes |
| China RoHS compliance | Yes with exemptions |
| Connection material | Stainless steel |
| Contains batteries | No |
| Cv value [gal/min] | 111.81 gal/min |
| Direction | Straightway |
| Equipment | Cap w. wire seal |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(c) |
| Flow direction | Bi-flow |
| Flow direction indicator | Embossed 2-way arrow |
| Fluid Group | 2 |
| Ignition source assessment | Yes |
| Inlet connection type | Butt weld |
| Inlet size [mm] | 28 mm |
| Kv value [m³/h] | 96.72 m³/h |
| Max. Working Pressure [bar] | 90 bar |
| Max. Working Pressure [psig] | 1305 psig |
| Outlet connection type | Butt weld |
| Outlet size [mm] | 28 mm |
| Packing format | Multi pack |
| Panel mounting option | M4 × 0.7 (2 PC) |
| PED category | Art. 4, par. 3 |
| Product accessories | BM/GBC valve accessories |
| Quantity per packing format | 5 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Refrigerants | R744 |
| SCIP dossier no. | cac227b8-1cb2-4bdf-b22c-0bd4e896d5e9 |
| SCIP dossier product name | CO2 GBC 90 bar V2 without AP |
| Serviceable | BM/GBC valve spare parts |
| Temperature range [°C] [max] | 100 °C |
| Temperature range [°C] [min] | -40 °C |
| Temperature range [°F] [max] | 212 °F |
| Temperature range [°F] [min] | -40 °F |
| Access port | No |
| Approval | UKCA |
| Body material | Brass |
| CE mark | Yes |
| China RoHS compliance | Yes with exemptions |
| Connection material | Stainless steel |
| Contains batteries | No |
| Cv value [gal/min] | 111.81 gal/min |
| Direction | Straightway |
| Equipment | Cap w. wire seal |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(c) |
| Flow direction | Bi-flow |
| Flow direction indicator | Embossed 2-way arrow |
| Fluid Group | 2 |
| Ignition source assessment | Yes |
| Inlet connection type | Butt weld |
| Inlet size [mm] | 28 mm |
| Kv value [m³/h] | 96.72 m³/h |
| Max. Working Pressure [bar] | 90 bar |
| Max. Working Pressure [psig] | 1305 psig |
| Outlet connection type | Butt weld |
| Outlet size [mm] | 28 mm |
| Packing format | Multi pack |
| Panel mounting option | M4 × 0.7 (2 PC) |
| PED category | Art. 4, par. 3 |
| Product accessories | BM/GBC valve accessories |
| Quantity per packing format | 5 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Refrigerants | R744 |
| SCIP dossier no. | cac227b8-1cb2-4bdf-b22c-0bd4e896d5e9 |
| SCIP dossier product name | CO2 GBC 90 bar V2 without AP |
| Serviceable | BM/GBC valve spare parts |
| Temperature range [°C] [max] | 100 °C |
| Temperature range [°C] [min] | -40 °C |
| Temperature range [°F] [max] | 212 °F |
| Temperature range [°F] [min] | -40 °F |
