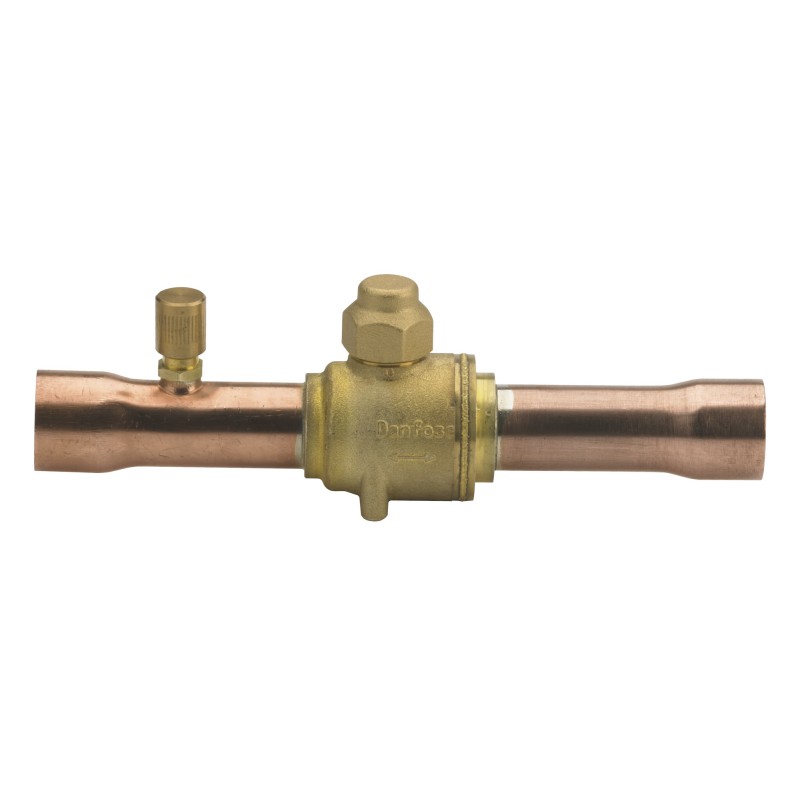

009L7055 DANFOSS REFRIGERATION Shut-off ball valve, GBC 22s
009L7055
DANFOSS REFRIGERATION
Shut-off ball valve, GBC 22s
GBC 22s Ball Valve M/25
Home > DANFOSS REFRIGERATION
* Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION
More info
▲Inlet connection type: Solder, ODF, Outlet connection type: Solder, ODF, Inlet size [mm]: 22.00, Outlet size [mm]: 22.00, Inlet size [in]: 7/8 in, Outlet size [in]: 7/8 in
Product details
| Gross weight | 0.483 Kg |
| Net weight | 0.419 Kg |
| Volume | 0.825 Liter |
| EAN | 5702428007924 |
| Gross weight | 0.483 Kg |
| Net weight | 0.419 Kg |
| Volume | 0.825 Liter |
| EAN | 5702428007924 |
| Access port | Yes |
| Approval | C UL US LISTED CE EAC UKCA |
| Body material | Brass |
| Connection material | Copper |
| Cv value [gal/min] | 38.54 gal/min |
| Direction | Straightway |
| Equipment | Cap w. wire seal |
| EU RoHS compliance | Yes with exemptions |
| Flow direction | Bi-flow |
| Flow direction indicator | Embossed 2-way arrow |
| Fluid Group | 1 2 |
| In scope of WEEE and contain batteries | No |
| Inlet connection type | Solder, ODF |
| Inlet size [in] | 7/8 in |
| Inlet size [mm] | 22 mm |
| Kv value [m³/h] | 33.34 m³/h |
| Max. media temp. Oil free [°C] | 80 °C |
| Max. Working Pressure [bar] | 45 bar |
| Max. Working Pressure [psig] | 650 psig |
| Oil free refrigerants | R1234ze(E) R134a R513A R515B R516A |
| Outlet connection type | Solder, ODF |
| Outlet size [in] | 7/8 in |
| Outlet size [mm] | 22 mm |
| Packing format | Multi pack |
| Panel mounting option | M4 × 0.7 (2 PC) |
| Parts included | Schrader valve |
| PED category | Art. 4, par. 3 |
| Product accessories | BM/GBC valve accessories |
| Product group | Shut-off and regulating valves |
| Product Name Description | Shut-off ball valve |
| Quantity per packing format | 25 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Refrigerants | R134a R22/R407C R407A R407F R410A R448A R449A R450A R452A R513A R1234yf R407H R449B R454C R455A R515B R516A R1234ze(E) R290 R452B R454B R454A R404A/R507A R463A R32 |
| SCIP dossier no. | 4b2fe785-688b-4157-ad7e-68b26c6e3e7b |
| Serviceable | BM/GBC valve spare parts |
| Temperature range [°C] [max] | 150 °C |
| Temperature range [°C] [min] | -40 °C |
| Temperature range [°F] [max] | 300 °F |
| Temperature range [°F] [min] | -40 °F |
| Type | GBC 22s |
| UL approved refrigerants | R134a R22 R404A R407A R407C R407F R407H R410A R448A R449A R449B R450A R452A R507A R513A R515B R516A R1234yf R1234ze(E) R290 R32 R452B R454A R454B R454C R455A R463A |
| Access port | Yes |
| Approval | C UL US LISTED CE EAC UKCA |
| Body material | Brass |
| Connection material | Copper |
| Cv value [gal/min] | 38.54 gal/min |
| Direction | Straightway |
| Equipment | Cap w. wire seal |
| EU RoHS compliance | Yes with exemptions |
| Flow direction | Bi-flow |
| Flow direction indicator | Embossed 2-way arrow |
| Fluid Group | 1 2 |
| In scope of WEEE and contain batteries | No |
| Inlet connection type | Solder, ODF |
| Inlet size [in] | 7/8 in |
| Inlet size [mm] | 22 mm |
| Kv value [m³/h] | 33.34 m³/h |
| Max. media temp. Oil free [°C] | 80 °C |
| Max. Working Pressure [bar] | 45 bar |
| Max. Working Pressure [psig] | 650 psig |
| Oil free refrigerants | R1234ze(E) R134a R513A R515B R516A |
| Outlet connection type | Solder, ODF |
| Outlet size [in] | 7/8 in |
| Outlet size [mm] | 22 mm |
| Packing format | Multi pack |
| Panel mounting option | M4 × 0.7 (2 PC) |
| Parts included | Schrader valve |
| PED category | Art. 4, par. 3 |
| Product accessories | BM/GBC valve accessories |
| Product group | Shut-off and regulating valves |
| Product Name Description | Shut-off ball valve |
| Quantity per packing format | 25 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Refrigerants | R134a R22/R407C R407A R407F R410A R448A R449A R450A R452A R513A R1234yf R407H R449B R454C R455A R515B R516A R1234ze(E) R290 R452B R454B R454A R404A/R507A R463A R32 |
| SCIP dossier no. | 4b2fe785-688b-4157-ad7e-68b26c6e3e7b |
| Serviceable | BM/GBC valve spare parts |
| Temperature range [°C] [max] | 150 °C |
| Temperature range [°C] [min] | -40 °C |
| Temperature range [°F] [max] | 300 °F |
| Temperature range [°F] [min] | -40 °F |
| Type | GBC 22s |
| UL approved refrigerants | R134a R22 R404A R407A R407C R407F R407H R410A R448A R449A R449B R450A R452A R507A R513A R515B R516A R1234yf R1234ze(E) R290 R32 R452B R454A R454B R454C R455A R463A |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| 009L7055 009L7055 | 572 Kbytes |
 |
