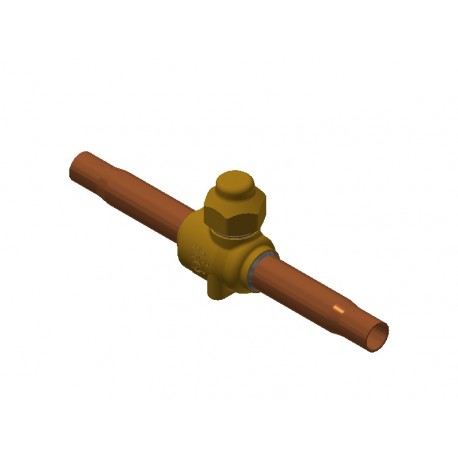

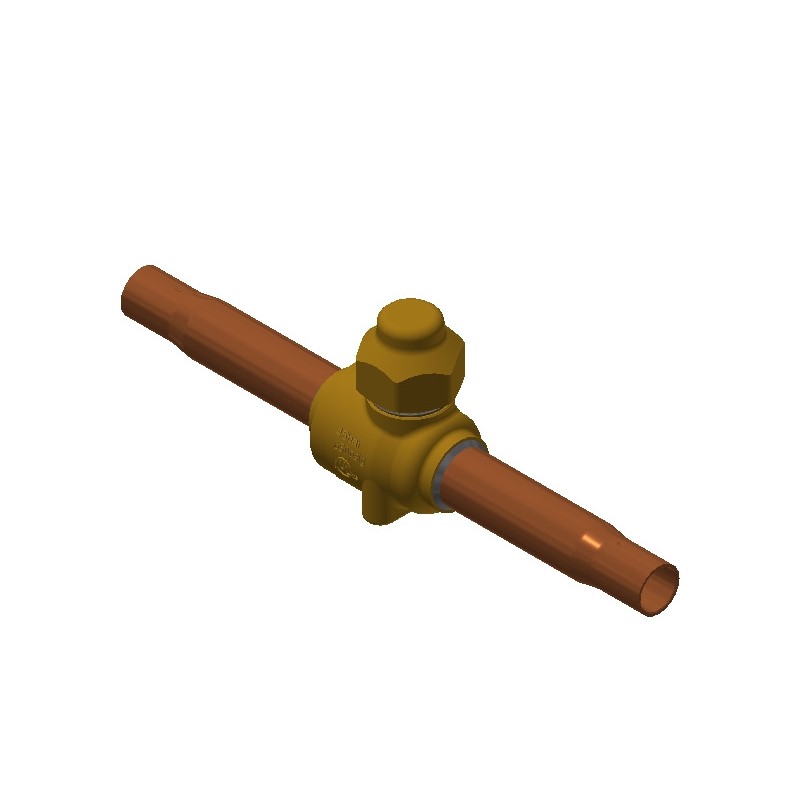

DANFOSS REFRIGERATION 009L7021 009L7021 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

009L7021 DANFOSS REFRIGERATION Shut-off ball valve

Name: 009L7021 DANFOSS REFRIGERATION Shut-off ball valve
Brand: DANFOSS REFRIGERATION
SKU: DAO009L7021
Price: 54.94 USD
Availability: OutOfStock

Reference: 009L7021

Manufacturer: DANFOSS REFRIGERATION

Description:

Shut-off ball valve

GBC 10s Ball Valve M/30

Shut-off ball valve, GBC 10s

Categories:

DANFOSS REFRIGERATION

Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION

More Info
PDF
Reviews

Guarantee, repair and return.

Unit Price: 46,46 €

This price is per unit and is the net value (not including taxes if applicable).

Special discounts for registered customers.Login or register and prices will be updated.

Calculate price by quantity

Quantity	Price

Standard lead time: 4-5 days.

These delivery times are an estimate any may vary when the item order has been processed.
You will be notified of any change to delivery times once the order has been processed.
To this delivery time you have to add the time of transport from our logistics centre to your company.

LAST VIEWED

MORE INFO

Inlet connection type: Solder, ODF, Outlet connection type: Solder, ODF, Inlet size [in]: 3/8 in, Outlet size [in]: 3/8 in

Product details

Gross weight	0.184 Kg
Net weight	0.132 Kg

Volume	0.655 Liter
EAN	5702428515801

Gross weight	0.184 Kg
Net weight	0.132 Kg
Volume	0.655 Liter
EAN	5702428515801

Access port	No
Approval	C UL US LISTED CE EAC UKCA
Body material	Brass
Connection material	Copper
Cv value [gal/min]	9.3 gal/min
Direction	Straightway
Equipment	Cap w. wire seal
EU RoHS compliance	Yes with exemptions
Flow direction	Bi-flow
Flow direction indicator	Embossed 2-way arrow
Fluid Group	1 2
Identical product	009L7721
In scope of WEEE and contain batteries	No
Inlet connection type	Solder, ODF
Inlet size [in]	3/8 in
Kv value [m³/h]	8.04 m³/h
Max. media temp. Oil free [°C]	80 °C
Max. Working Pressure [bar]	45 bar
Max. Working Pressure [psig]	650 psig
Oil free refrigerants	R1234ze(E) R134a R513A R515B R516A

Outlet connection type	Solder, ODF
Outlet size [in]	3/8 in
Packing format	Multi pack
Panel mounting option	M3 × 0.5 (2 PC)
PED category	Art. 4, par. 3
Product accessories	BM/GBC valve accessories
Product group	Shut-off and regulating valves
Product Name Description	Shut-off ball valve
Quantity per packing format	30 pc
REACH Candidate List substances	Lead (CAS no. 7439-92-1)
Refrigerants	R134a R22/R407C R407A R407F R410A R448A R449A R450A R452A R513A R1234yf R407H R449B R454C R455A R515B R516A R1234ze(E) R290 R452B R454B R454A R404A/R507A R463A R32
SCIP dossier no.	4b2fe785-688b-4157-ad7e-68b26c6e3e7b
Serviceable	BM/GBC valve spare parts
Temperature range [°C] [max]	150 °C
Temperature range [°C] [min]	-40 °C
Temperature range [°F] [max]	300 °F
Temperature range [°F] [min]	-40 °F
Type	GBC 10s
UL approved refrigerants	R134a R22 R404A R407A R407C R407F R407H R410A R448A R449A R449B R450A R452A R507A R513A R515B R516A R1234yf R1234ze(E) R290 R32 R452B R454A R454B R454C R455A R463A

Access port	No
Approval	C UL US LISTED CE EAC UKCA
Body material	Brass
Connection material	Copper
Cv value [gal/min]	9.3 gal/min
Direction	Straightway
Equipment	Cap w. wire seal
EU RoHS compliance	Yes with exemptions
Flow direction	Bi-flow
Flow direction indicator	Embossed 2-way arrow
Fluid Group	1 2
Identical product	009L7721
In scope of WEEE and contain batteries	No
Inlet connection type	Solder, ODF
Inlet size [in]	3/8 in
Kv value [m³/h]	8.04 m³/h
Max. media temp. Oil free [°C]	80 °C
Max. Working Pressure [bar]	45 bar
Max. Working Pressure [psig]	650 psig
Oil free refrigerants	R1234ze(E) R134a R513A R515B R516A
Outlet connection type	Solder, ODF
Outlet size [in]	3/8 in
Packing format	Multi pack
Panel mounting option	M3 × 0.5 (2 PC)
PED category	Art. 4, par. 3
Product accessories	BM/GBC valve accessories
Product group	Shut-off and regulating valves
Product Name Description	Shut-off ball valve
Quantity per packing format	30 pc
REACH Candidate List substances	Lead (CAS no. 7439-92-1)
Refrigerants	R134a R22/R407C R407A R407F R410A R448A R449A R450A R452A R513A R1234yf R407H R449B R454C R455A R515B R516A R1234ze(E) R290 R452B R454B R454A R404A/R507A R463A R32
SCIP dossier no.	4b2fe785-688b-4157-ad7e-68b26c6e3e7b
Serviceable	BM/GBC valve spare parts
Temperature range [°C] [max]	150 °C
Temperature range [°C] [min]	-40 °C
Temperature range [°F] [max]	300 °F
Temperature range [°F] [min]	-40 °F
Type	GBC 10s
UL approved refrigerants	R134a R22 R404A R407A R407C R407F R407H R410A R448A R449A R449B R450A R452A R507A R513A R515B R516A R1234yf R1234ze(E) R290 R32 R452B R454A R454B R454C R455A R463A

DATASHEET - PDF

Title

Size

Type

009L7021 009L7021 EN_009L9024.pdf

2 Mbytes

PDF CATALOGUE DANFOSS REFRIGERATION AND AIRCONDITIONING EN

11 Mbytes
