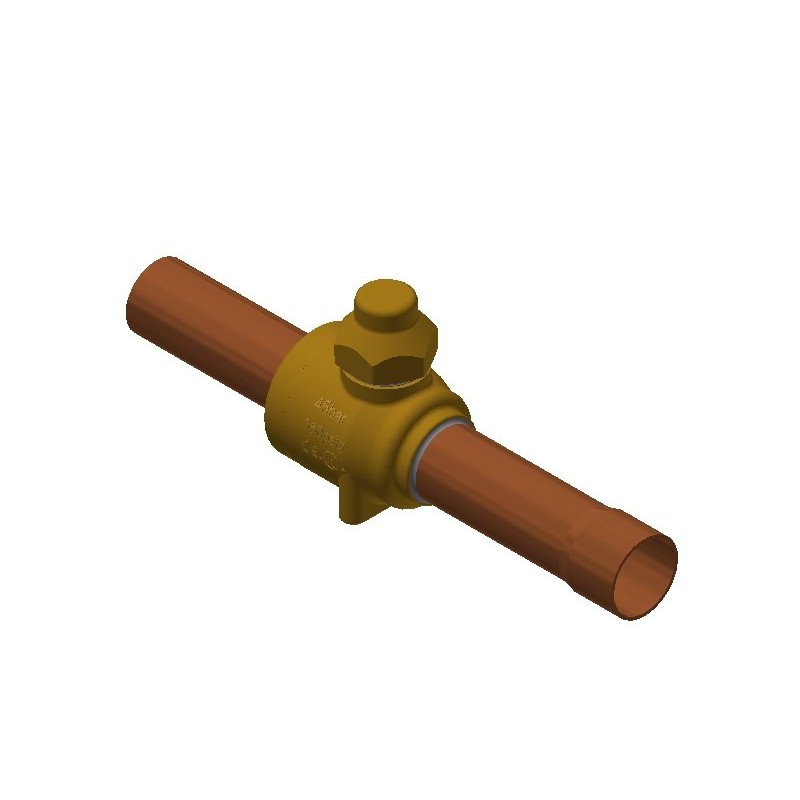

DANFOSS REFRIGERATION 009L7001 009L7001 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

009L7001 DANFOSS REFRIGERATION Ball stop valve, GBC 28s

Reference: 009L7001

Manufacturer: DANFOSS REFRIGERATION

Description:

Ball stop valve, GBC 28s
GBC 28s Ball Valve M/5
Shut-off ball valve, GBC 28s

Categories:

  • DANFOSS REFRIGERATION

Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 105,45 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 4-5 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

Inlet connection type: Solder, ODF, Outlet connection type: Solder, ODM, Inlet size [in]: 1 1/8 in, Outlet size [in]: 1 1/8 in

Product details

Gross weight1.06 Kg
Net weight0.887 Kg
Volume2.578 Liter
EAN5702428515849
Gross weight1.06 Kg
Net weight0.887 Kg
Volume2.578 Liter
EAN5702428515849

Access portNo
ApprovalC UL US LISTED
CE
EAC
UKCA
Body materialBrass
Connection materialCopper
Cv value [gal/min]71.96 gal/min
DirectionStraightway
EquipmentCap w. wire seal
EU RoHS complianceYes with exemptions
Flow directionBi-flow
Flow direction indicatorEmbossed 2-way arrow
Fluid Group1
2
In scope of WEEE and contain batteriesNo
Inlet connection typeSolder, ODF
Inlet size [in]1 1/8 in
Kv value [m³/h]62.25 m³/h
Max. media temp. Oil free [°C]80 °C
Max. Working Pressure [bar]45 bar
Max. Working Pressure [psig]650 psig
Oil free refrigerantsR1234ze(E)
R134a
R513A
R515B
R516A
Outlet connection typeSolder, ODM
Outlet size [in]1 1/8 in
Packing formatMulti pack
Panel mounting optionM4 × 0.7 (2 PC)
PED categoryArt. 4, par. 3
Product accessoriesBM/GBC valve accessories
Product groupShut-off and regulating valves
Product Name DescriptionShut-off ball valve
Quantity per packing format5 pc
RefrigerantsR134a
R22/R407C
R407A
R407F
R410A
R448A
R449A
R450A
R452A
R513A
R407H
R449B
R515B
R1234ze(E)
R1234yf
R290
R452B
R454B
R454C
R455A
R516A
R404A/R507A
R454A
R463A
R32
ServiceableBM/GBC valve spare parts
Temperature range [°C] [max]150 °C
Temperature range [°C] [min]-40 °C
Temperature range [°F] [max]300 °F
Temperature range [°F] [min]-40 °F
TypeGBC 28s
UL approved refrigerantsR134a
R22
R404A
R407A
R407C
R407F
R407H
R410A
R448A
R449A
R449B
R450A
R452A
R507A
R513A
R515B
R516A
R1234yf
R1234ze(E)
R290
R32
R452B
R454A
R454B
R454C
R455A
R463A
Access portNo
ApprovalC UL US LISTED
CE
EAC
UKCA
Body materialBrass
Connection materialCopper
Cv value [gal/min]71.96 gal/min
DirectionStraightway
EquipmentCap w. wire seal
EU RoHS complianceYes with exemptions
Flow directionBi-flow
Flow direction indicatorEmbossed 2-way arrow
Fluid Group1
2
In scope of WEEE and contain batteriesNo
Inlet connection typeSolder, ODF
Inlet size [in]1 1/8 in
Kv value [m³/h]62.25 m³/h
Max. media temp. Oil free [°C]80 °C
Max. Working Pressure [bar]45 bar
Max. Working Pressure [psig]650 psig
Oil free refrigerantsR1234ze(E)
R134a
R513A
R515B
R516A
Outlet connection typeSolder, ODM
Outlet size [in]1 1/8 in
Packing formatMulti pack
Panel mounting optionM4 × 0.7 (2 PC)
PED categoryArt. 4, par. 3
Product accessoriesBM/GBC valve accessories
Product groupShut-off and regulating valves
Product Name DescriptionShut-off ball valve
Quantity per packing format5 pc
RefrigerantsR134a
R22/R407C
R407A
R407F
R410A
R448A
R449A
R450A
R452A
R513A
R407H
R449B
R515B
R1234ze(E)
R1234yf
R290
R452B
R454B
R454C
R455A
R516A
R404A/R507A
R454A
R463A
R32
ServiceableBM/GBC valve spare parts
Temperature range [°C] [max]150 °C
Temperature range [°C] [min]-40 °C
Temperature range [°F] [max]300 °F
Temperature range [°F] [min]-40 °F
TypeGBC 28s
UL approved refrigerantsR134a
R22
R404A
R407A
R407C
R407F
R407H
R410A
R448A
R449A
R449B
R450A
R452A
R507A
R513A
R515B
R516A
R1234yf
R1234ze(E)
R290
R32
R452B
R454A
R454B
R454C
R455A
R463A
