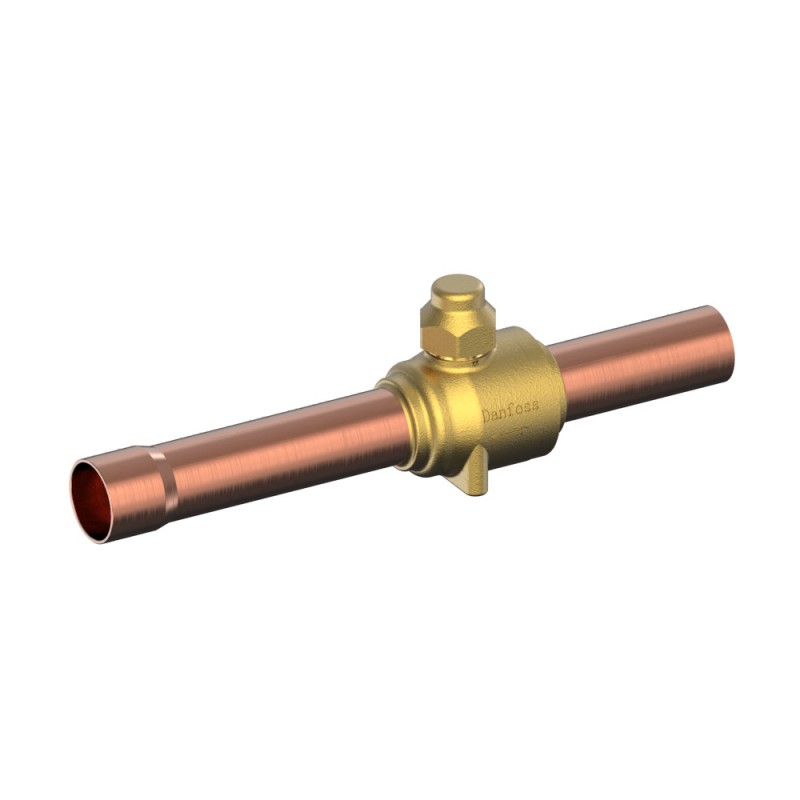

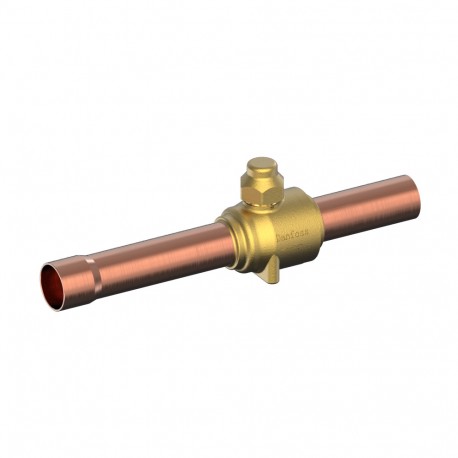

009L7000 DANFOSS REFRIGERATION Shut-off ball valve, GBC 22s
009L7000
DANFOSS REFRIGERATION
Shut-off ball valve, GBC 22s
GBC 22s Ball Valve ODF7/8xODM7/8 M/5
Home > DANFOSS REFRIGERATION
* Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION
More info
▲Product name: Shut-off ball valve, Type: GBC 22s, Inlet size [mm]: 22.00, Inlet connection type: SOLDER, ODF, Outlet size [mm]: 22.00, Outlet connection type: SOLDER, ODM
| Gross weight | 0.46 Kg |
| Net weight | 0.4 Kg |
| EAN | 5702428515856 |
| Access port | NO |
| Approval | C UL US LISTED CE CSA EAC |
| Body material | Brass |
| Connection material | Copper |
| Cv value [gal/min] | 38.54 gal/min |
| Direction | Straightway |
| Equipment | Cap w. wire seal (EN 378 comp) |
| Flow direction | Bi-flow |
| Flow direction indicator | Embossed 2-way arrow |
| Inlet connection type | SOLDER, ODF |
| Inlet size [in] | 7/8 IN |
| Inlet size [mm] | 22 mm |
| Kv value [m³/h] | 33.34 m3/h |
| Max. test pressure [bar] | 65 bar |
| Max. test pressure [psig] | 940 psig |
| Max. Working Pressure [bar] | 45 bar |
| Max. Working Pressure [psig] | 650 psig |
| Outlet connection type | SOLDER, ODM |
| Outlet size [in] | 7/8 IN |
| Outlet size [mm] | 22 mm |
| Packing format | Multi pack |
| Panel mounting option | M4 × 0.7 (2 PC) |
| Product accessories | BM/GBC valve accessories |
| Product description | Ball Valve |
| Product family name | GBC v2 |
| Product Group | Shut-off and regulating valves |
| Product name | Shut-off ball valve |
| Product type | GBC 22s |
| Quantity per packing format | 5 pc |
| Refrigerants | R1234ze R134a R22/R407C R32 R404A/R507 R407A R407F R410A R448A R449A R450A R452A R513A |
| Serviceable | BM/GBC valve spare parts |
| System line application | Discharge line Liquid feed line Liquid line Suction line Wet return line |
| Temperature range [°C] [Max] | 150 °C |
| Temperature range [°C] [Min] | -40 °C |
| Temperature range [°F] [Max] | 300 °F |
| Temperature range [°F] [Min] | -40 °F |
