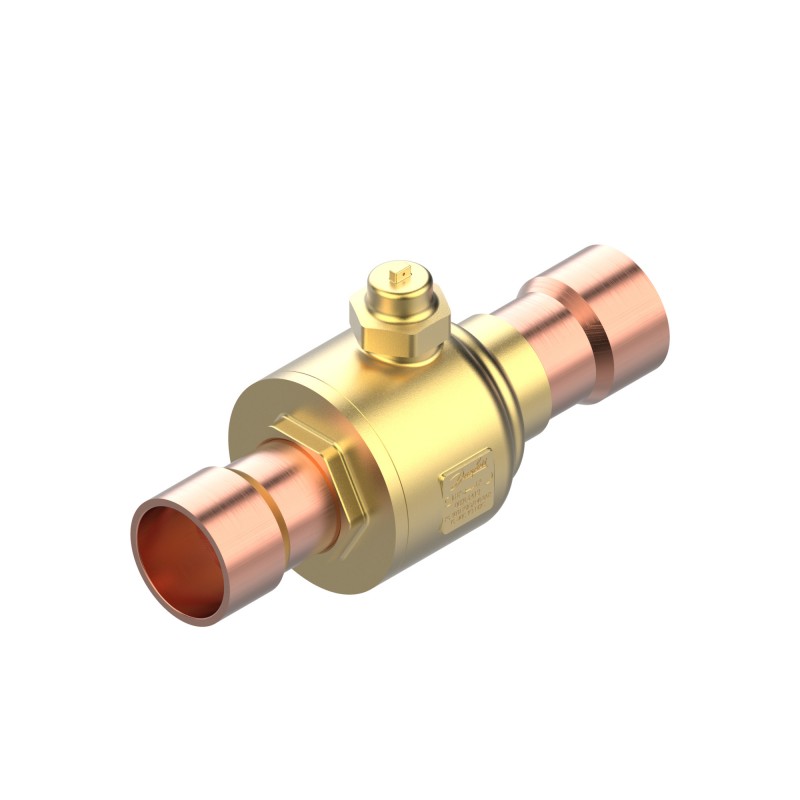

009L6412 DANFOSS REFRIGERATION GBCT 54s CO2 140bar ball valve M/2
009L6412
DANFOSS REFRIGERATION
GBCT 54s CO2 140bar ball valve M/2
Shut-off ball valve, GBCT 54s
Home > DANFOSS REFRIGERATION
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION
Best sellers
▲More info
▲Inlet connection type: Solder, ODF, Outlet connection type: Solder, ODF, Inlet size [in]: 2 1/8 in, Outlet size [in]: 2 1/8 in
Product details
| Gross weight | 6.45 Kilogram |
| Net weight | 6.07 Kilogram |
| Volume | 8.04 Liter |
| EAN | 5702428559324 |
| Type | GBCT 54s |
| Product group | Shut-off and regulating valves |
| Product Name Description | Shut-off ball valve |
| Gross weight | 6.45 Kilogram |
| Net weight | 6.07 Kilogram |
| Volume | 8.04 Liter |
| EAN | 5702428559324 |
| Type | GBCT 54s |
| Product group | Shut-off and regulating valves |
| Product Name Description | Shut-off ball valve |
| Access port | No |
| Approval | C UL US LISTED CE EAC |
| Body material | Brass |
| CE mark | Yes |
| China RoHS compliance | Yes with exemptions |
| Connection material | Copper |
| Contains batteries | No |
| Cv value [gal/min] | 198 gal/min |
| Direction | Straightway |
| Equipment | Cap w. wire seal |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(c) |
| Flow direction | Bi-flow |
| Flow direction indicator | Laser engraved 2-way arrow |
| Ignition source assessment | Yes |
| Inlet connection type | Solder, ODF |
| Inlet size [in] | 2 1/8 in |
| Kv value [m³/h] | 171.3 m³/h |
| Max. Working Pressure [bar] | 140 bar |
| Max. Working Pressure [psig] | 2031 psig |
| Outlet connection type | Solder, ODF |
| Outlet size [in] | 2 1/8 in |
| Packing format | Multi pack |
| Quantity per packing format | 2 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Refrigerants | R744 |
| SCIP dossier no. | cd93018f-68fe-4653-a4ff-756a31c208f4 |
| SCIP dossier product name | GBC CO2 140 bar 28s - 54s 27D - 60D |
| Temperature range [°C] [max] | 149 °C |
| Temperature range [°C] [min] | -40 °C |
| Temperature range [°F] [max] | 300 °F |
| Temperature range [°F] [min] | -40 °F |
| UL approved refrigerants | R744 |
| UL mark | Yes |
| Access port | No |
| Approval | C UL US LISTED CE EAC |
| Body material | Brass |
| CE mark | Yes |
| China RoHS compliance | Yes with exemptions |
| Connection material | Copper |
| Contains batteries | No |
| Cv value [gal/min] | 198 gal/min |
| Direction | Straightway |
| Equipment | Cap w. wire seal |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(c) |
| Flow direction | Bi-flow |
| Flow direction indicator | Laser engraved 2-way arrow |
| Ignition source assessment | Yes |
| Inlet connection type | Solder, ODF |
| Inlet size [in] | 2 1/8 in |
| Kv value [m³/h] | 171.3 m³/h |
| Max. Working Pressure [bar] | 140 bar |
| Max. Working Pressure [psig] | 2031 psig |
| Outlet connection type | Solder, ODF |
| Outlet size [in] | 2 1/8 in |
| Packing format | Multi pack |
| Quantity per packing format | 2 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Refrigerants | R744 |
| SCIP dossier no. | cd93018f-68fe-4653-a4ff-756a31c208f4 |
| SCIP dossier product name | GBC CO2 140 bar 28s - 54s 27D - 60D |
| Temperature range [°C] [max] | 149 °C |
| Temperature range [°C] [min] | -40 °C |
| Temperature range [°F] [max] | 300 °F |
| Temperature range [°F] [min] | -40 °F |
| UL approved refrigerants | R744 |
| UL mark | Yes |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE DANFOSS REFRIGERATION AND AIRCONDITIONING EN.pdf | 11 Mbytes |
|
| 009L6412 009L6412 EN_009L6418.pdf | 665 Kbytes |
|
