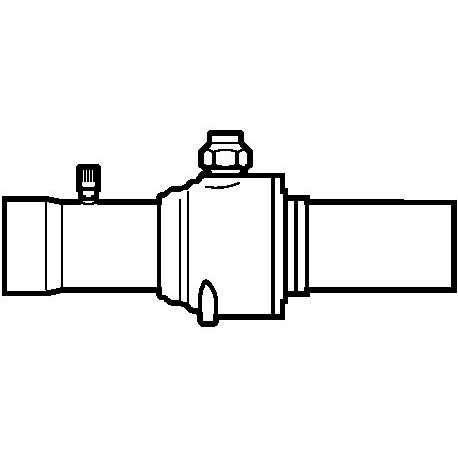

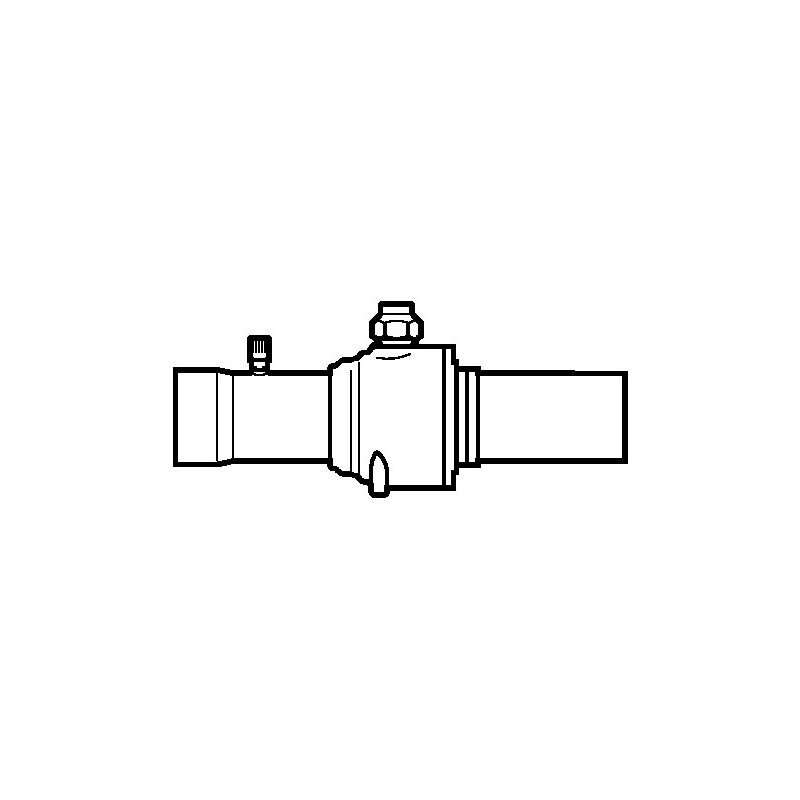

009G7099 DANFOSS REFRIGERATION Shut-off ball valve
009G7099
DANFOSS REFRIGERATION
4
Shut-off ball valve
Home > DANFOSS REFRIGERATION
* Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION
More info
▲Product name: Shut-off ball valve, Type: GBC 42s, Inlet connection type: SOLDER, ODF, Outlet connection type: SOLDER, ODM
| Gross weight | 2.59 Kg |
| Net weight | 2.23 Kg |
| EAN | 5702428183109 |
| Access port | YES |
| Approval | CE CSA UL |
| Body material | Brass |
| Connection material | Copper |
| Cv value [gal/min] | 155.78 gal/min |
| Direction | Straightway |
| Equipment | Cap w. wire seal (EN 378 comp) |
| Flow direction | Bi-flow |
| Flow direction indicator | Embossed 2-way arrow |
| Inlet connection type | SOLDER, ODF |
| Inlet size [in] | 1 5/8 IN |
| Kv value [m³/h] | 134.76 m3/h |
| Max. test pressure [bar] | 65 bar |
| Max. test pressure [psig] | 940 psig |
| Max. Working Pressure [bar] | 45 bar |
| Max. Working Pressure [psig] | 650 psig |
| Outlet connection type | SOLDER, ODM |
| Outlet size [in] | 1 5/8 IN |
| Packing format | Multi pack |
| Panel mounting option | M6 × 1.0 (2 PC) |
| Parts included | Schrader valve |
| Product accessories | BM/GBC valve accessories |
| Product description | Ball Valve |
| Product family name | GBC |
| Product Group | Shut-off and regulating valves |
| Product name | Shut-off ball valve |
| Product type | GBC 42s |
| Quantity per packing format | 4 pc |
| Refrigerants | R1234ze R134a R22/R407C R404A/R507 R407A R407F R410A R448A R449A R450A R452A R513A |
| Serviceable | BM/GBC valve spare parts |
| System line application | Discharge line Liquid feed line Liquid line Suction line Wet return line |
| Temperature range [°C] [Max] | 150 °C |
| Temperature range [°C] [Min] | -40 °C |
| Temperature range [°F] [Max] | 300 °F |
| Temperature range [°F] [Min] | -40 °F |
