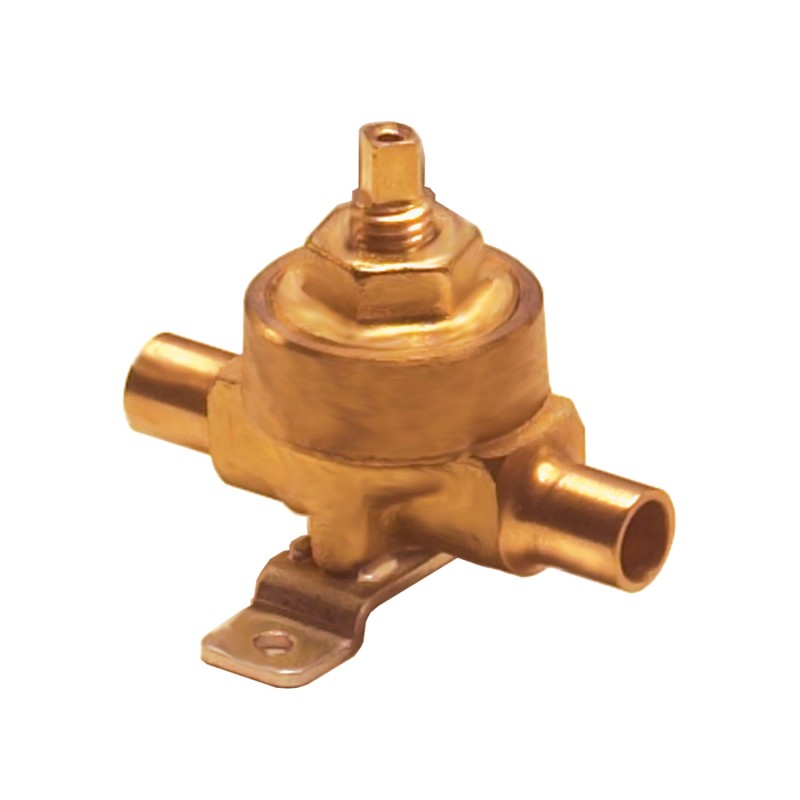

DANFOSS REFRIGERATION 009G0148 009G0148 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

009G0148 DANFOSS REFRIGERATION Shut-off diaphragm valve

Name: 009G0148 DANFOSS REFRIGERATION Shut-off diaphragm valve
Brand: DANFOSS REFRIGERATION
SKU: DAO009G0148
Price: 85.01 USD
Availability: OutOfStock

Reference: 009G0148

Manufacturer: DANFOSS REFRIGERATION

Description:

Shut-off diaphragm valve

BML 12s Shut Off Valve M/12

Shut-off diaphragm valve, BML 12s

Categories:

DANFOSS REFRIGERATION

Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION

More Info
PDF
Reviews

Guarantee, repair and return.

Unit Price: 71,89 €

This price is per unit and is the net value (not including taxes if applicable).

Special discounts for registered customers.Login or register and prices will be updated.

Calculate price by quantity

Quantity	Price

Standard lead time: 4-5 days.

These delivery times are an estimate any may vary when the item order has been processed.
You will be notified of any change to delivery times once the order has been processed.
To this delivery time you have to add the time of transport from our logistics centre to your company.

LAST VIEWED

MORE INFO

Inlet connection type: Solder, ODF, Outlet connection type: Solder, ODF, Inlet size [mm]: 12, Outlet size [mm]: 12

Product details

Gross weight	0.51 Kilogram
Net weight	0.496 Kilogram
Volume	1.615 Liter
EAN	5702422004219

Type	BML 12s
Product group	Shut-off and regulating valves
Product Name Description	Shut-off diaphragm valve

Gross weight	0.51 Kilogram
Net weight	0.496 Kilogram
Volume	1.615 Liter
EAN	5702422004219
Type	BML 12s
Product group	Shut-off and regulating valves
Product Name Description	Shut-off diaphragm valve

Approval	C UL US LISTED EAC LLC CDC TYSK
Body material	Brass
China RoHS compliance	Yes with exemptions
China RoHS exemption clause	7.3
Connection material	Brass
Contains batteries	No
Cv value [gal/min]	1.73 gal/min
Direction	Straightway
Equipment	Handwheel
EU RoHS compliance	Yes with exemptions
EU RoHS exemption clause	6(c)
Flow direction indicator	Embossed 1-way arrow
Fluid Group	1 2
Ignition source assessment	Yes
Inlet connection type	Solder, ODF
Inlet size [mm]	12 mm
Kv value [m³/h]	1.5 m³/h
Lubricants compatibility	Oilfree applications
Max. test pressure [bar]	36.4 bar
Max. test pressure [psig]	528 psig
Max. Working Pressure [bar]	28 bar
Max. Working Pressure [psig]	406 psig
Oil free refrigerants	R1234ze(E) R134a R513A R515B R516A

Outlet connection type	Solder, ODF
Outlet size [mm]	12 mm
Packing format	Multi pack
PED category	Art. 4, par. 3
Product accessories	BM/GBC valve accessories
Quantity per packing format	12 pc
REACH Candidate List substances	Lead (CAS no. 7439-92-1)
Refrigerants	R1234yf R1234ze(E) R1270 R134a R22/R407C R290 R404A/R507A R407H R449B R450A R513A R515B R516A R600 R600a R1233zd(E)
SCIP dossier no.	4713b3ce-0431-444e-9b2b-0f14b47fa788
SCIP dossier product name	BML/BMT
Serviceable	BM/GBC valve spare parts
Temperature range [°C] [max]	100 °C
Temperature range [°C] [min]	-55 °C
Temperature range [°F] [max]	212 °F
Temperature range [°F] [min]	-67 °F
UL approval file name	REFRIGERANT VALVE 53R0
UL approved refrigerants	R134a R22 R404A R407C R407H R449B R450A R507A R513A R515B R516A
UL mark	Yes
Working range [bar] [max]	21 bar
Working range [bar] [min]	-1 bar
Working range [psig] [max]	304 psig
Working range [psig] [min]	-14 psig

Approval	C UL US LISTED EAC LLC CDC TYSK
Body material	Brass
China RoHS compliance	Yes with exemptions
China RoHS exemption clause	7.3
Connection material	Brass
Contains batteries	No
Cv value [gal/min]	1.73 gal/min
Direction	Straightway
Equipment	Handwheel
EU RoHS compliance	Yes with exemptions
EU RoHS exemption clause	6(c)
Flow direction indicator	Embossed 1-way arrow
Fluid Group	1 2
Ignition source assessment	Yes
Inlet connection type	Solder, ODF
Inlet size [mm]	12 mm
Kv value [m³/h]	1.5 m³/h
Lubricants compatibility	Oilfree applications
Max. test pressure [bar]	36.4 bar
Max. test pressure [psig]	528 psig
Max. Working Pressure [bar]	28 bar
Max. Working Pressure [psig]	406 psig
Oil free refrigerants	R1234ze(E) R134a R513A R515B R516A
Outlet connection type	Solder, ODF
Outlet size [mm]	12 mm
Packing format	Multi pack
PED category	Art. 4, par. 3
Product accessories	BM/GBC valve accessories
Quantity per packing format	12 pc
REACH Candidate List substances	Lead (CAS no. 7439-92-1)
Refrigerants	R1234yf R1234ze(E) R1270 R134a R22/R407C R290 R404A/R507A R407H R449B R450A R513A R515B R516A R600 R600a R1233zd(E)
SCIP dossier no.	4713b3ce-0431-444e-9b2b-0f14b47fa788
SCIP dossier product name	BML/BMT
Serviceable	BM/GBC valve spare parts
Temperature range [°C] [max]	100 °C
Temperature range [°C] [min]	-55 °C
Temperature range [°F] [max]	212 °F
Temperature range [°F] [min]	-67 °F
UL approval file name	REFRIGERANT VALVE 53R0
UL approved refrigerants	R134a R22 R404A R407C R407H R449B R450A R507A R513A R515B R516A
UL mark	Yes
Working range [bar] [max]	21 bar
Working range [bar] [min]	-1 bar
Working range [psig] [max]	304 psig
Working range [psig] [min]	-14 psig

DATASHEET - PDF

Title

Size

Type

009G0148 009G0148 ES_009G0128.pdf

1 Mbytes

PDF CATALOGUE DANFOSS REFRIGERATION AND AIRCONDITIONING EN

11 Mbytes
