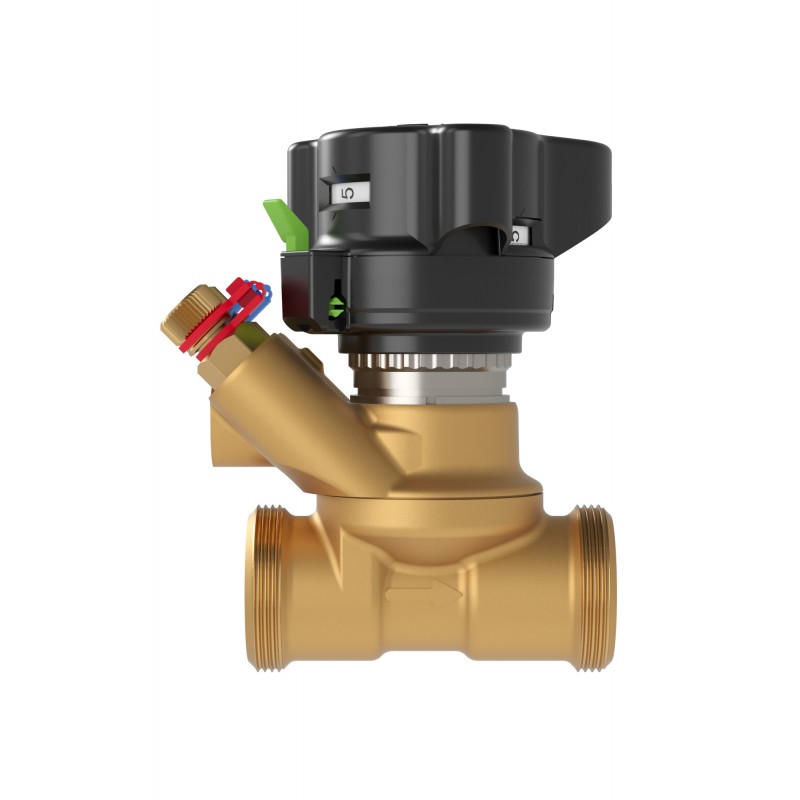

003Z4102 DANFOSS REFRIGERATION LENO MSV-BD, DN 20, External thread ISO 228/1
Reference: 003Z4102
Manufacturer: DANFOSS REFRIGERATION
Description:
LENO MSV-BD, DN 20, External thread ISO 228/1
Categories:
- DANFOSS REFRIGERATION
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION
- More Info
- Reviews
LAST VIEWED
MORE INFO
MSV-BD DN 20, External thread, manual balancing valve
Product details
| Gross weight | 0.906 Kilogram |
| Net weight | 0.833 Kilogram |
| Volume | 1.402 Liter |
| EAN | 5702420084626 |
| Type | LENO MSV-BD |
| Product group | Manual balancing |
| Gross weight | 0.906 Kilogram |
| Net weight | 0.833 Kilogram |
| Volume | 1.402 Liter |
| EAN | 5702420084626 |
| Type | LENO MSV-BD |
| Product group | Manual balancing |
| China RoHS compliance | Out of scope |
| Connection types | External thread ISO 228/1 |
| Connections | G 1 A |
| Contains batteries | No |
| Description | MSV-BD DN 20, External thread, manual balancing valve |
| Differential pressure [kPa] [Max] | 3 KPa |
| Differential pressure range [bar] [Max] | 2.5 bar |
| Drain function | Yes |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(c) |
| Kvs values [m³/h] | 6 m³/h |
| Media temperature [°C] [Max] | 120 °C |
| Media temperature [°C] [Min] | -20 °C |
| Pressure class | PN 20 |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| SCIP dossier no. | 35d16385-2142-475f-afb7-d3dbdff39012 |
| SCIP dossier product name | MSV-BD DN15-DN50 (1) |
| Setting scale | Yes |
| Shut-off function | Yes |
| Shut-off leakage rate (ISO 5208) | Rate A |
| Test plugs | With test plugs |
| Valve body material | DZR brass |
| Valve size | DN 20 |
| China RoHS compliance | Out of scope |
| Connection types | External thread ISO 228/1 |
| Connections | G 1 A |
| Contains batteries | No |
| Description | MSV-BD DN 20, External thread, manual balancing valve |
| Differential pressure [kPa] [Max] | 3 KPa |
| Differential pressure range [bar] [Max] | 2.5 bar |
| Drain function | Yes |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(c) |
| Kvs values [m³/h] | 6 m³/h |
| Media temperature [°C] [Max] | 120 °C |
| Media temperature [°C] [Min] | -20 °C |
| Pressure class | PN 20 |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| SCIP dossier no. | 35d16385-2142-475f-afb7-d3dbdff39012 |
| SCIP dossier product name | MSV-BD DN15-DN50 (1) |
| Setting scale | Yes |
| Shut-off function | Yes |
| Shut-off leakage rate (ISO 5208) | Rate A |
| Test plugs | With test plugs |
| Valve body material | DZR brass |
| Valve size | DN 20 |
