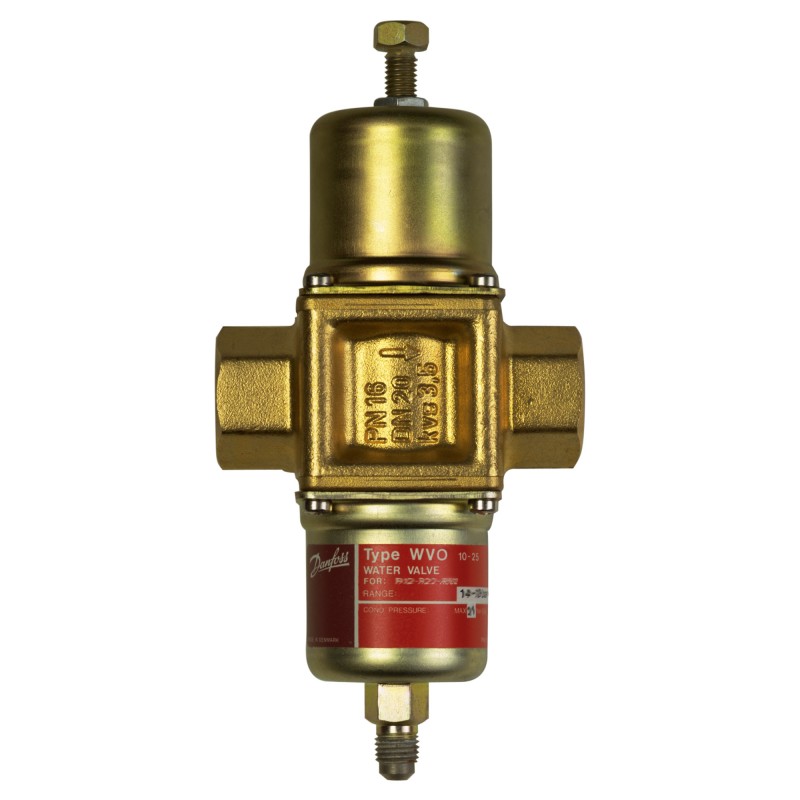

003N5206 DANFOSS REFRIGERATION Pressure operated water valve
003N5206
DANFOSS REFRIGERATION
Pressure operated water valve
WVO 10 Water Reg. Valve 14-18 bar M/10
Pressure operated water valve, WVO 10, 14.00 bar - 18.00 bar, 1.400 m³/h
Home > DANFOSS REFRIGERATION
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION
Best sellers
▲More info
▲Connection type: G, Connection size [in]: 3/8, Kv value [m³/h]: 1.400, Opening configuration: Opens on rising cond. pressure, Control pressure range [bar]: 14.00 - 18.00, Connection size (refrigerant): 1/4 in - 6 mm, Connection type (refrigerant): SAE flare
Product details
| Gross weight | 1.175 Kilogram |
| Net weight | 0.975 Kilogram |
| Volume | 4.082 Liter |
| EAN | 5702422058038 |
| Gross weight | 1.175 Kilogram |
| Net weight | 0.975 Kilogram |
| Volume | 4.082 Liter |
| EAN | 5702422058038 |
| Approval | C UL US LISTED EAC LLC CDC TYSK PED RoHS RoHS China |
| Approval file name | REFRIGERANT VALVE 53R0 |
| Body material | Brass |
| China RoHS compliance | Yes |
| Connection Internal/External | Internal |
| Connection size (refrigerant) | 1/4 in - 6 mm |
| Connection size [in] | 3/8 |
| Connection standard | ISO 228-1 |
| Connection type | G |
| Connection type (refrigerant) | SAE flare |
| Control pressure range [bar] [max] | 18 bar |
| Control pressure range [bar] [min] | 14 bar |
| Cv value [gal/min] | 1.6 gal/min |
| Differential pressure [bar] | 10 bar |
| Differential pressure [psi] | 145 psi |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(b) 6(c) |
| In scope of WEEE and contain batteries | No |
| Kv value [m³/h] | 1.4 m³/h |
| Lubricants compatibility | Oilfree applications |
| Max. test pressure [bar] Pe | 24 bar |
| Max. test pressure [psig] | 350 psig |
| Max. Working Pressure [bar] | 16 bar |
| Max. Working Pressure [psig] | 232 psig |
| Max.test press.(refrig.)[bar] | 38 bar |
| Max.test press.(refrig.)[psig] | 551 psig |
| Media | Fresh water Neutral brine |
| Medium temperature range [°C] [max] | 130 °C |
| Medium temperature range [°C] [min] | -25 °C |
| Medium temperature range [°F] [max] | 266 °F |
| Medium temperature range [°F] [min] | -13 °F |
| MWP (refrigerant) [bar] | 25 bar |
| Oil free refrigerants | R513A |
| Opening configuration | Opens on rising cond. pressure |
| Orifice size [mm] | 10 mm |
| Orifice size fraction [in] | 2/5 in |
| Packing format | Multi pack |
| Product group | Water regulating valves |
| Product Name Description | Pressure operated water valve |
| Quantity per packing format | 10 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Refrigerants | R134a R22 R404A R407A R407C R407F R422B R422D R448A R449A R450A R452A R507A R513A R407H R449B R454C R455A R1234yf R454A |
| SCIP dossier no. | f7d782f1-04df-4c40-bfe2-ea3a06dce79f |
| SCIP dossier product name | WVS/WVTS |
| Type | WVO 10 |
| UK RoHS compliance | Out of scope |
| UL approved refrigerants | R134a R22 R404A R407A R407C R407F R407H R422B R422D R448A R449A R449B R450A R452A R507A R513A |
| UL evaluated | Yes |
| Approval | C UL US LISTED EAC LLC CDC TYSK PED RoHS RoHS China |
| Approval file name | REFRIGERANT VALVE 53R0 |
| Body material | Brass |
| China RoHS compliance | Yes |
| Connection Internal/External | Internal |
| Connection size (refrigerant) | 1/4 in - 6 mm |
| Connection size [in] | 3/8 |
| Connection standard | ISO 228-1 |
| Connection type | G |
| Connection type (refrigerant) | SAE flare |
| Control pressure range [bar] [max] | 18 bar |
| Control pressure range [bar] [min] | 14 bar |
| Cv value [gal/min] | 1.6 gal/min |
| Differential pressure [bar] | 10 bar |
| Differential pressure [psi] | 145 psi |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(b) 6(c) |
| In scope of WEEE and contain batteries | No |
| Kv value [m³/h] | 1.4 m³/h |
| Lubricants compatibility | Oilfree applications |
| Max. test pressure [bar] Pe | 24 bar |
| Max. test pressure [psig] | 350 psig |
| Max. Working Pressure [bar] | 16 bar |
| Max. Working Pressure [psig] | 232 psig |
| Max.test press.(refrig.)[bar] | 38 bar |
| Max.test press.(refrig.)[psig] | 551 psig |
| Media | Fresh water Neutral brine |
| Medium temperature range [°C] [max] | 130 °C |
| Medium temperature range [°C] [min] | -25 °C |
| Medium temperature range [°F] [max] | 266 °F |
| Medium temperature range [°F] [min] | -13 °F |
| MWP (refrigerant) [bar] | 25 bar |
| Oil free refrigerants | R513A |
| Opening configuration | Opens on rising cond. pressure |
| Orifice size [mm] | 10 mm |
| Orifice size fraction [in] | 2/5 in |
| Packing format | Multi pack |
| Product group | Water regulating valves |
| Product Name Description | Pressure operated water valve |
| Quantity per packing format | 10 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Refrigerants | R134a R22 R404A R407A R407C R407F R422B R422D R448A R449A R450A R452A R507A R513A R407H R449B R454C R455A R1234yf R454A |
| SCIP dossier no. | f7d782f1-04df-4c40-bfe2-ea3a06dce79f |
| SCIP dossier product name | WVS/WVTS |
| Type | WVO 10 |
| UK RoHS compliance | Out of scope |
| UL approved refrigerants | R134a R22 R404A R407A R407C R407F R407H R422B R422D R448A R449A R449B R450A R452A R507A R513A |
| UL evaluated | Yes |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE DANFOSS REFRIGERATION AND AIRCONDITIONING EN.pdf | 11 Mbytes |
|
| 003N5206 003N5206 EN_003N5206.pdf | 1 Mbytes |
|
