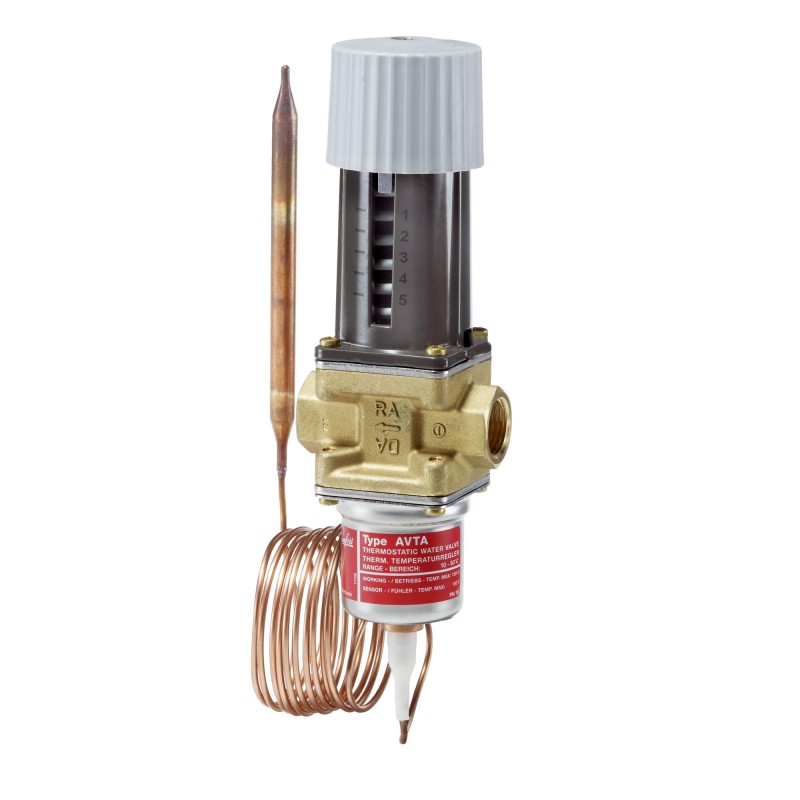

003N3171 DANFOSS REFRIGERATION Thermo. operated water valve, AVTA 20
003N3171
DANFOSS REFRIGERATION
Thermo. operated water valve, AVTA 20
Home > DANFOSS REFRIGERATION
* Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION
More info
▲Body material: Brass, Opening configuration: Opens on rising sensor temp., Charge type: Adsorption
Product details
| Gross weight | 1.685 Kg |
| Net weight | 1.285 Kg |
| Volume | 4.001 Liter |
| EAN | 5702428414104 |
| Gross weight | 1.685 Kg |
| Net weight | 1.285 Kg |
| Volume | 4.001 Liter |
| EAN | 5702428414104 |
| Approval | EAC LLC CDC TYSK PED RoHS RoHS China |
| Body material | Brass |
| Cap. tube length fraction [in] | 90 9/16 in |
| Capillary tube gland Int/Ext | Internal |
| Capillary tube gland size [in] | 1/2 |
| Capillary tube gland standard | ISO 228-1 |
| Capillary tube gland type | G |
| Capillary tube length [mm] | 2300 mm |
| Charge type | Adsorption |
| Connection Internal/External | Internal |
| Connection size [in] | 3/4 |
| Connection standard | ISO 228-1 |
| Connection type | G |
| Cv value [gal/min] | 3.9 gal/min |
| Differential pressure [bar] [max] | 10 bar |
| Differential pressure [bar] [min] | 0 bar |
| Differential pressure [psi] [max] | 145 psi |
| Differential pressure [psi] [min] | 0 psi |
| EU RoHS compliance | Yes with exemptions |
| Flow direction indicator | Embossed 1-way arrow |
| In scope of WEEE and contain batteries | No |
| Kv value [m³/h] | 3.4 m³/h |
| Max. pressure on sensor [bar] | 25 bar |
| Max. pressure on sensor [psig] | 362.6 psig |
| Max. sensor temperature [°C] | 130 °C |
| Max. sensor temperature [°F] | 266 °F |
| Max. test pressure [bar] Pe | 25 bar |
| Max. test pressure [psig] | 362.6 psig |
| Max. Working Pressure [bar] | 16 bar |
| Max. Working Pressure [psig] | 232 psig |
| Media | Neutral media |
| Medium temperature range [°C] [max] | 130 °C |
| Medium temperature range [°C] [min] | -25 °C |
| Medium temperature range [°F] [max] | 266 °F |
| Medium temperature range [°F] [min] | -13 °F |
| Opening configuration | Opens on rising sensor temp. |
| Orifice size [mm] | 20 mm |
| Orifice size fraction [in] | 4/5 in |
| Packing format | Multi pack |
| Product accessories | Generic accessories Water valves accessories |
| Product group | Water regulating valves |
| Product Name Description | Thermo. operated water valve |
| Quantity per packing format | 10 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| SCIP dossier no. | d0092edb-0ce7-409a-9808-fda08274cc60 |
| Sensor size (Ø x L) [in] | 3/8 x 5 29/32 in |
| Sensor size (Ø x L) [mm] | 9.5 x 150 mm |
| Serviceable | Water valve spare parts |
| Temperature range [°C] [max] | 110 °C |
| Temperature range [°C] [min] | 10 °C |
| Temperature range [°F] [max] | 230 °F |
| Temperature range [°F] [min] | 50 °F |
| Type | AVTA 20 |
| Approval | EAC LLC CDC TYSK PED RoHS RoHS China |
| Body material | Brass |
| Cap. tube length fraction [in] | 90 9/16 in |
| Capillary tube gland Int/Ext | Internal |
| Capillary tube gland size [in] | 1/2 |
| Capillary tube gland standard | ISO 228-1 |
| Capillary tube gland type | G |
| Capillary tube length [mm] | 2300 mm |
| Charge type | Adsorption |
| Connection Internal/External | Internal |
| Connection size [in] | 3/4 |
| Connection standard | ISO 228-1 |
| Connection type | G |
| Cv value [gal/min] | 3.9 gal/min |
| Differential pressure [bar] [max] | 10 bar |
| Differential pressure [bar] [min] | 0 bar |
| Differential pressure [psi] [max] | 145 psi |
| Differential pressure [psi] [min] | 0 psi |
| EU RoHS compliance | Yes with exemptions |
| Flow direction indicator | Embossed 1-way arrow |
| In scope of WEEE and contain batteries | No |
| Kv value [m³/h] | 3.4 m³/h |
| Max. pressure on sensor [bar] | 25 bar |
| Max. pressure on sensor [psig] | 362.6 psig |
| Max. sensor temperature [°C] | 130 °C |
| Max. sensor temperature [°F] | 266 °F |
| Max. test pressure [bar] Pe | 25 bar |
| Max. test pressure [psig] | 362.6 psig |
| Max. Working Pressure [bar] | 16 bar |
| Max. Working Pressure [psig] | 232 psig |
| Media | Neutral media |
| Medium temperature range [°C] [max] | 130 °C |
| Medium temperature range [°C] [min] | -25 °C |
| Medium temperature range [°F] [max] | 266 °F |
| Medium temperature range [°F] [min] | -13 °F |
| Opening configuration | Opens on rising sensor temp. |
| Orifice size [mm] | 20 mm |
| Orifice size fraction [in] | 4/5 in |
| Packing format | Multi pack |
| Product accessories | Generic accessories Water valves accessories |
| Product group | Water regulating valves |
| Product Name Description | Thermo. operated water valve |
| Quantity per packing format | 10 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| SCIP dossier no. | d0092edb-0ce7-409a-9808-fda08274cc60 |
| Sensor size (Ø x L) [in] | 3/8 x 5 29/32 in |
| Sensor size (Ø x L) [mm] | 9.5 x 150 mm |
| Serviceable | Water valve spare parts |
| Temperature range [°C] [max] | 110 °C |
| Temperature range [°C] [min] | 10 °C |
| Temperature range [°F] [max] | 230 °F |
| Temperature range [°F] [min] | 50 °F |
| Type | AVTA 20 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| 003N3171 003N3171 EN_003N4183.pdf | 2 Mbytes |
 |
