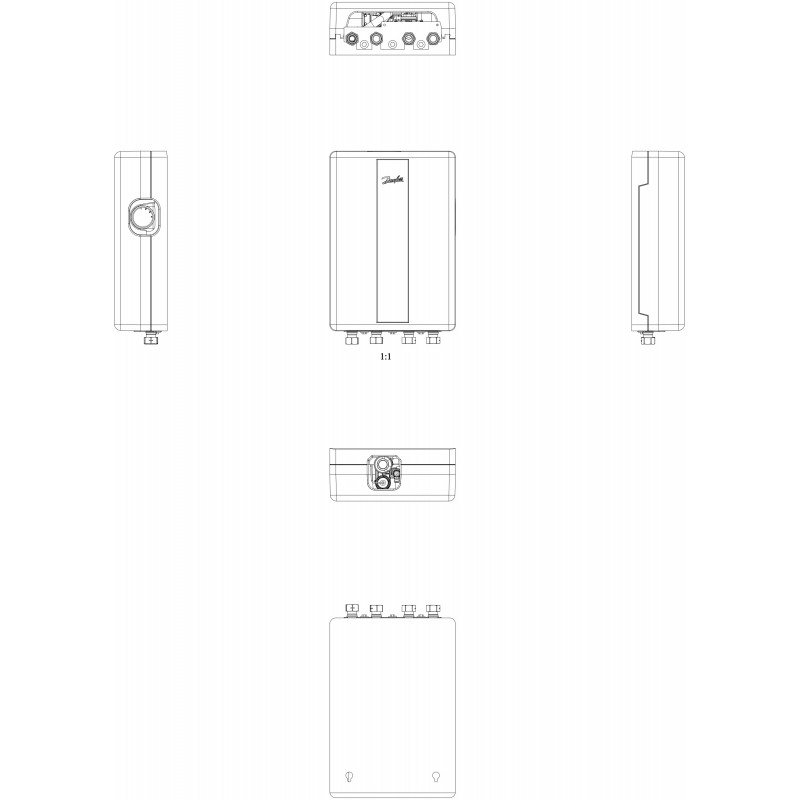

145G0352 DANFOSS HEATING EvoFlat TDV type 3 W EPP
Code: 145G0352
Manufacturer: DANFOSS HEATING
Description:
EvoFlat TDV type 3 W EPP
EvoFlat WSS, Bottom, 55 kW, Brazed copper, Type 3
Categories:
- DANFOSS HEATING
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS HEATING
- More Info
- Reviews
MORE INFO
EvoFlat TDV type 3 W EPP
Product details
| Gross weight | 9.7 Kilogram |
| Net weight | 8.5 Kilogram |
| EAN | 5702424638672 |
| Type | EvoFlat WSS |
| Product group | Small Stations |
| Gross weight | 9.7 Kilogram |
| Net weight | 8.5 Kilogram |
| EAN | 5702424638672 |
| Type | EvoFlat WSS |
| Product group | Small Stations |
| Application type | Instantaneous DHW |
| Connection direction | Bottom |
| Contains batteries | No |
| Cover material | EPP Foam |
| Depth with cover [mm] | 130 mm |
| Description | EvoFlat TDV type 3 W EPP |
| DH connection size | 3/4" |
| DH connection type | Thread |
| DH pipe size | Ø18 |
| DHW capacity [kW] [Max] | 55 kW |
| DHW capacity [kW] [Min] | 38 kW |
| DHW Control type | Flow/thermostatic |
| DHW controller name | TPC-M |
| Differential pressure controller | Integrated |
| HEX DHW brazed/gasketed material | Brazed copper |
| HEX heating brazed/gasketed material | Copper |
| Pressure nominal primary [bar] | 10 bar |
| Pressure nominal secondary [bar] | 10 bar |
| Station size type | Type 3 |
| Supply temperature construction [˚C] | 95 °C |
| Application type | Instantaneous DHW |
| Connection direction | Bottom |
| Contains batteries | No |
| Cover material | EPP Foam |
| Depth with cover [mm] | 130 mm |
| Description | EvoFlat TDV type 3 W EPP |
| DH connection size | 3/4" |
| DH connection type | Thread |
| DH pipe size | Ø18 |
| DHW capacity [kW] [Max] | 55 kW |
| DHW capacity [kW] [Min] | 38 kW |
| DHW Control type | Flow/thermostatic |
| DHW controller name | TPC-M |
| Differential pressure controller | Integrated |
| HEX DHW brazed/gasketed material | Brazed copper |
| HEX heating brazed/gasketed material | Copper |
| Pressure nominal primary [bar] | 10 bar |
| Pressure nominal secondary [bar] | 10 bar |
| Station size type | Type 3 |
| Supply temperature construction [˚C] | 95 °C |
DATASHEET - PDF
