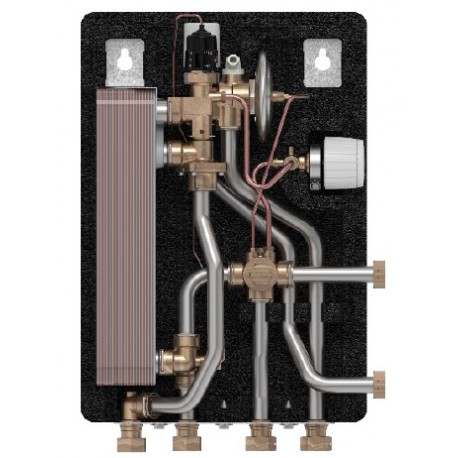

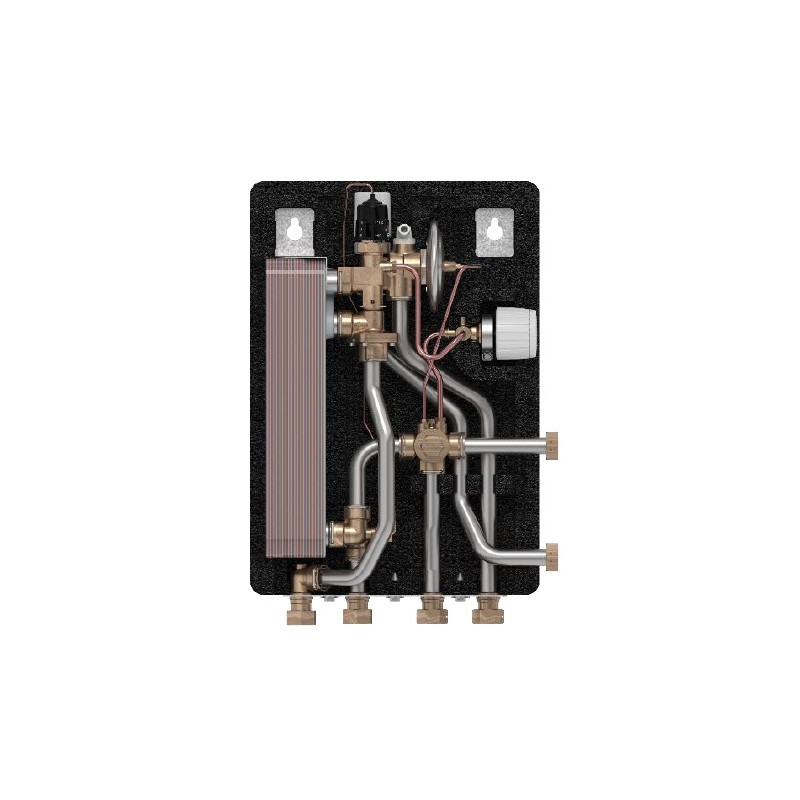

145B4175 DANFOSS HEATING EvoFlat TDV type 1 F side EPP
145B4175
DANFOSS HEATING
EvoFlat TDV type 1 F side EPP
EvoFlat TDV, Other, 43 kW, Brazed copper, Type 1
Home > DANFOSS HEATING
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS HEATING
Best sellers
▲More info
▲EvoFlat TDV 1, Radiator heating, DHW HEX copper type 1, Summer bypass, Side connection, with EPP cover
Product details
| Gross weight | 8.07 Kilogram |
| Net weight | 6.87 Kilogram |
| Volume | 78.736 Liter |
| EAN | 5702424657062 |
| Type | EvoFlat TDV |
| Product group | Small Stations |
| Gross weight | 8.07 Kilogram |
| Net weight | 6.87 Kilogram |
| Volume | 78.736 Liter |
| EAN | 5702424657062 |
| Type | EvoFlat TDV |
| Product group | Small Stations |
| Air vent | Yes |
| Application type | Direct Heating & Instantaneous DHW |
| CE evaluated | Out of scope |
| China RoHS compliance | Out of scope |
| Connection direction | Other |
| Cover material | EPP |
| DCW static pressure [bar] [Min] | 2 bar |
| Depth with cover [mm] | 130 mm |
| Description | EvoFlat TDV 1, Radiator heating, DHW HEX copper type 1, Summer bypass, Side connection, with EPP cover |
| DH connection size | 3/4" |
| DH connection type | Thread |
| DH pipe size | Ø18 |
| DHW capacity [kW] [Max] | 43 kW |
| DHW connection size | 3/4" |
| DHW connection type | G int. Thread |
| DHW Control type | Flow/thermostatic |
| DHW controller name | TPC-M |
| DHW pipe size | Ø18 |
| Differential pressure controller | Integrated |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(c) |
| HE connection size | 3/4" |
| HE connection type | G int. Thread |
| HE pipe size | Ø18 |
| Heating capacity [kW] [Max] | 15 kW |
| Heating control type | Differential pressure |
| Heating system type | Radiator heating |
| Height with cover [mm] | 443 mm |
| Height without cover [mm] | 443 mm |
| HEX DHW brazed/gasketed material | Brazed copper |
| In scope of WEEE | No |
| Piping | Stainless steel |
| Pressure nominal primary [bar] | 10 bar |
| Pressure nominal secondary [bar] | 10 bar |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Station size type | Type 1 |
| Strainer | Primary |
| Summer bypass | Yes |
| Supply temperature construction [˚C] | 95 °C |
| UL evaluated | Out of scope |
| Width with cover [mm] | 310 mm |
| Width without cover [mm] | 310 mm |
| Air vent | Yes |
| Application type | Direct Heating & Instantaneous DHW |
| CE evaluated | Out of scope |
| China RoHS compliance | Out of scope |
| Connection direction | Other |
| Cover material | EPP |
| DCW static pressure [bar] [Min] | 2 bar |
| Depth with cover [mm] | 130 mm |
| Description | EvoFlat TDV 1, Radiator heating, DHW HEX copper type 1, Summer bypass, Side connection, with EPP cover |
| DH connection size | 3/4" |
| DH connection type | Thread |
| DH pipe size | Ø18 |
| DHW capacity [kW] [Max] | 43 kW |
| DHW connection size | 3/4" |
| DHW connection type | G int. Thread |
| DHW Control type | Flow/thermostatic |
| DHW controller name | TPC-M |
| DHW pipe size | Ø18 |
| Differential pressure controller | Integrated |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(c) |
| HE connection size | 3/4" |
| HE connection type | G int. Thread |
| HE pipe size | Ø18 |
| Heating capacity [kW] [Max] | 15 kW |
| Heating control type | Differential pressure |
| Heating system type | Radiator heating |
| Height with cover [mm] | 443 mm |
| Height without cover [mm] | 443 mm |
| HEX DHW brazed/gasketed material | Brazed copper |
| In scope of WEEE | No |
| Piping | Stainless steel |
| Pressure nominal primary [bar] | 10 bar |
| Pressure nominal secondary [bar] | 10 bar |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Station size type | Type 1 |
| Strainer | Primary |
| Summer bypass | Yes |
| Supply temperature construction [˚C] | 95 °C |
| UL evaluated | Out of scope |
| Width with cover [mm] | 310 mm |
| Width without cover [mm] | 310 mm |
