DANFOSS HEATING145B4170 DANFOSS HEATING EvoFlat TDV type 2 F front EPP

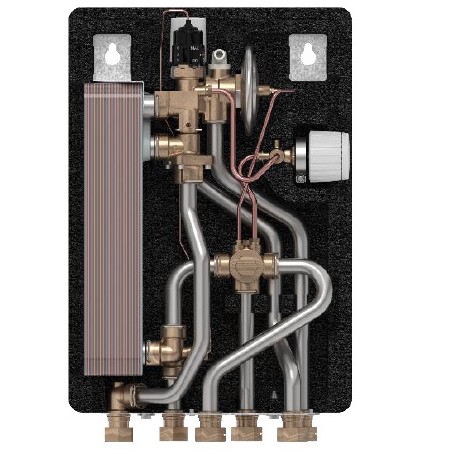

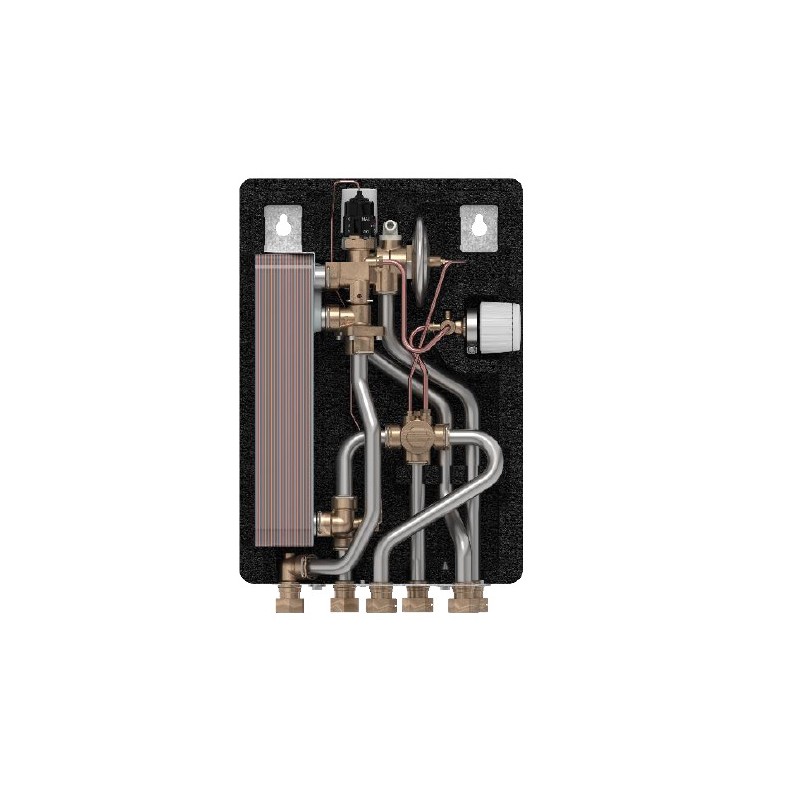

DANFOSS HEATING 145B4170 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

145B4170 DANFOSS HEATING EvoFlat TDV type 2 F front EPP

Code: 145B4170

Manufacturer: DANFOSS HEATING

Description:

EvoFlat TDV type 2 F front EPP
EvoFlat TDV, Bottom, 49 kW, Brazed copper, Type 2

Categories:

  • DANFOSS HEATING

Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS HEATING

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 1.484,83 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 10 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

EvoFlat TDV 2, Radiator heating, DHW HEX copper type 2, Summer bypass, Front connection, with EPP cover

Product details

Gross weight8.96 Kilogram
Net weight7.76 Kilogram
EAN5702424657017
TypeEvoFlat TDV
Product groupSmall Stations
Gross weight8.96 Kilogram
Net weight7.76 Kilogram
EAN5702424657017
TypeEvoFlat TDV
Product groupSmall Stations

Air ventYes
Application typeDirect Heating & Instantaneous DHW
CE evaluatedOut of scope
China RoHS complianceOut of scope
Connection directionBottom
Cover materialEPP
DCW static pressure [bar] [Min]2 bar
Depth with cover [mm]130 mm
DescriptionEvoFlat TDV 2, Radiator heating, DHW HEX copper type 2, Summer bypass, Front connection, with EPP cover
DH connection size3/4"
DH connection typeG int. Thread
DH pipe sizeØ18
DHW capacity [kW] [Max]49 kW
DHW connection size3/4"
DHW connection typeG int. Thread
DHW Control typeFlow/thermostatic
DHW controller nameTPC-M
DHW pipe sizeØ18
Differential pressure controllerIntegrated
EU RoHS complianceYes with exemptions
EU RoHS exemption clause6(c)
HE connection size3/4"
HE connection typeG int. Thread
HE pipe sizeØ18
Heating capacity [kW] [Max]15 kW
Heating control typeDifferential pressure
Heating system typeRadiator heating
Height with cover [mm]443 mm
Height without cover [mm]443 mm
HEX DHW brazed/gasketed materialBrazed copper
In scope of WEEENo
PipingStainless steel
Pressure nominal primary [bar]10 bar
Pressure nominal secondary [bar]10 bar
REACH Candidate List substancesLead (CAS no. 7439-92-1)
Station size typeType 2
StrainerPrimary
Summer bypassYes
Supply temperature construction [˚C]95 °C
UL evaluatedOut of scope
Width with cover [mm]310 mm
Width without cover [mm]310 mm
Air ventYes
Application typeDirect Heating & Instantaneous DHW
CE evaluatedOut of scope
China RoHS complianceOut of scope
Connection directionBottom
Cover materialEPP
DCW static pressure [bar] [Min]2 bar
Depth with cover [mm]130 mm
DescriptionEvoFlat TDV 2, Radiator heating, DHW HEX copper type 2, Summer bypass, Front connection, with EPP cover
DH connection size3/4"
DH connection typeG int. Thread
DH pipe sizeØ18
DHW capacity [kW] [Max]49 kW
DHW connection size3/4"
DHW connection typeG int. Thread
DHW Control typeFlow/thermostatic
DHW controller nameTPC-M
DHW pipe sizeØ18
Differential pressure controllerIntegrated
EU RoHS complianceYes with exemptions
EU RoHS exemption clause6(c)
HE connection size3/4"
HE connection typeG int. Thread
HE pipe sizeØ18
Heating capacity [kW] [Max]15 kW
Heating control typeDifferential pressure
Heating system typeRadiator heating
Height with cover [mm]443 mm
Height without cover [mm]443 mm
HEX DHW brazed/gasketed materialBrazed copper
In scope of WEEENo
PipingStainless steel
Pressure nominal primary [bar]10 bar
Pressure nominal secondary [bar]10 bar
REACH Candidate List substancesLead (CAS no. 7439-92-1)
Station size typeType 2
StrainerPrimary
Summer bypassYes
Supply temperature construction [˚C]95 °C
UL evaluatedOut of scope
Width with cover [mm]310 mm
Width without cover [mm]310 mm
