DANFOSS HEATING140F1140 DANFOSS HEATING DEVIreg Smart Polar White
DANFOSS HEATING 140F1140 140F1140 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

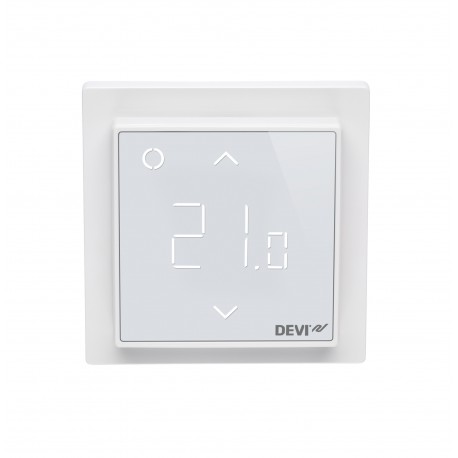

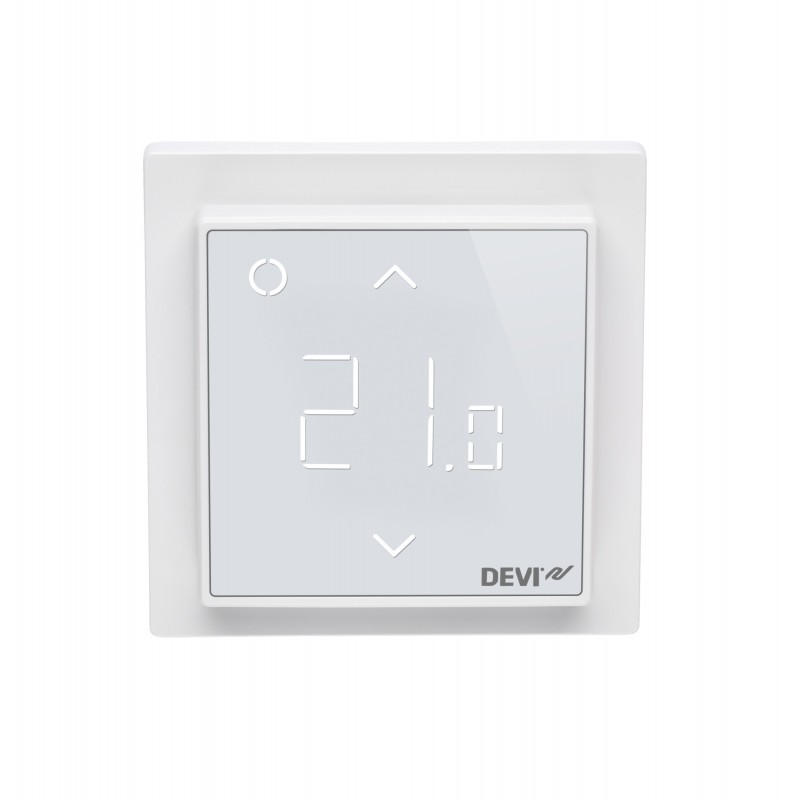

140F1140 DANFOSS HEATING DEVIreg Smart Polar White

Reference: 140F1140

Manufacturer: DANFOSS HEATING

Description:

DEVIreg Smart Polar White
Thermostats, DEVIreg™ Smart polar white, Sensor type: Room + Floor, 16 A

Categories:

  • DANFOSS HEATING

Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS HEATING

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

MORE INFO

Temperature - floor [°C]: 5 - 45, Temperature - room [°C]: 5 - 35, Display type: Touch screen, Application: Floor heating

Product details

Gross weight0.263 Kilogram
Net weight0.26 Kilogram
Volume0.998 Liter
EAN5703466239629
TypeDEVIreg™ Smart
Product groupThermostats
Gross weight0.263 Kilogram
Net weight0.26 Kilogram
Volume0.998 Liter
EAN5703466239629
TypeDEVIreg™ Smart
Product groupThermostats

1 Primary battery SUM weight Kg0
1 Primary battery weight Kg0
Ambient temperature [°C] [max]30 °C
Ambient temperature [°C] [min]0 °C
ApplicationFloor heating
ApprovalCE
Ball pressure test temperature [°C]75 °C
Battery qty1
Battery type or NameCoin battery - (Manganese Silicon) lithium rechargeable battery by Seiko (MS414GE)
CE evaluatedYes
Certification companyCE
EAC
Intertek Semko
China RoHS complianceOut of scope
ColourWhite RAL 9016
Contains batteriesYes
Depth [mm]44 mm
DescriptionDEVIreg™ Smart polar white
DIN mountingNo
Display (Yes/No)Yes
Display typeTouch screen
EEE category5 small equipment (any external dimension < 50 cm)
Element IP Class21
EU RoHS complianceYes
Frost protection [°C]5 °C
Height [mm]85 mm
Hysteresis (+/-)0.2
In scope of WEEEYes
Inductive loadcos φ= 0.3 max 1A
Package depth [mm]110 mm
Package height [mm]84 mm
Package width [mm]108 mm
Pollution degree2
Product descriptionDEVIreg™ Smart polar white
REACH Candidate List substancesNo
Regulation typePWM
Relay switch1-pole
Resistive load max [A]16 A
Sensor definition point [Ohm/°C]15kΩ / 25°C
Sensor typeRoom + Floor
Software classA
Standby power consumption [W] [Max]0.4 W
Storage temperature [°C] [Max]65 °C
Storage temperature [°C] [Min]-20 °C
Supply voltage [V] AC230 V
Supply voltage [V] AC [max]240 V
Supply voltage [V] AC [min]220 V
Temperature - floor [°C] [Max]45 °C
Temperature - floor [°C] [Min]5 °C
Temperature - room [°C] [Max]35 °C
Temperature - room [°C] [Min]5 °C
Temperature limiter [°C] [Max]45 °C
Temperature limiter [°C] [Min]5 °C
Temperature max. limiter [°C] [Max]35 °C
Temperature max. limiter [°C] [Min]20 °C
Temperature min. limiter [°C] [Max]35 °C
Temperature min. limiter [°C] [Min]10 °C
Terminal cable size max [mm²]2 x 2.5
UL evaluatedOut of scope
UNSPSC CODE41112209
Warranty [Year]5
Warranty type5-year product warranty
Weight per battery0 g
Width [mm]85 mm
1 Primary battery SUM weight Kg0
1 Primary battery weight Kg0
Ambient temperature [°C] [max]30 °C
Ambient temperature [°C] [min]0 °C
ApplicationFloor heating
ApprovalCE
Ball pressure test temperature [°C]75 °C
Battery qty1
Battery type or NameCoin battery - (Manganese Silicon) lithium rechargeable battery by Seiko (MS414GE)
CE evaluatedYes
Certification companyCE
EAC
Intertek Semko
China RoHS complianceOut of scope
ColourWhite RAL 9016
Contains batteriesYes
Depth [mm]44 mm
DescriptionDEVIreg™ Smart polar white
DIN mountingNo
Display (Yes/No)Yes
Display typeTouch screen
EEE category5 small equipment (any external dimension < 50 cm)
Element IP Class21
EU RoHS complianceYes
Frost protection [°C]5 °C
Height [mm]85 mm
Hysteresis (+/-)0.2
In scope of WEEEYes
Inductive loadcos φ= 0.3 max 1A
Package depth [mm]110 mm
Package height [mm]84 mm
Package width [mm]108 mm
Pollution degree2
Product descriptionDEVIreg™ Smart polar white
REACH Candidate List substancesNo
Regulation typePWM
Relay switch1-pole
Resistive load max [A]16 A
Sensor definition point [Ohm/°C]15kΩ / 25°C
Sensor typeRoom + Floor
Software classA
Standby power consumption [W] [Max]0.4 W
Storage temperature [°C] [Max]65 °C
Storage temperature [°C] [Min]-20 °C
Supply voltage [V] AC230 V
Supply voltage [V] AC [max]240 V
Supply voltage [V] AC [min]220 V
Temperature - floor [°C] [Max]45 °C
Temperature - floor [°C] [Min]5 °C
Temperature - room [°C] [Max]35 °C
Temperature - room [°C] [Min]5 °C
Temperature limiter [°C] [Max]45 °C
Temperature limiter [°C] [Min]5 °C
Temperature max. limiter [°C] [Max]35 °C
Temperature max. limiter [°C] [Min]20 °C
Temperature min. limiter [°C] [Max]35 °C
Temperature min. limiter [°C] [Min]10 °C
Terminal cable size max [mm²]2 x 2.5
UL evaluatedOut of scope
UNSPSC CODE41112209
Warranty [Year]5
Warranty type5-year product warranty
Weight per battery0 g
Width [mm]85 mm

DATASHEET - PDF

Title
Size
Type
140F1140 140F1140 EN_140F1140.pdf
179 Kbytes
PDF CATALOGUE DANFOSS HEATING EN
11 Mbytes
