DANFOSS HEATING140F1085 DANFOSS HEATING DEVIreg 850 IV Latin with PSU

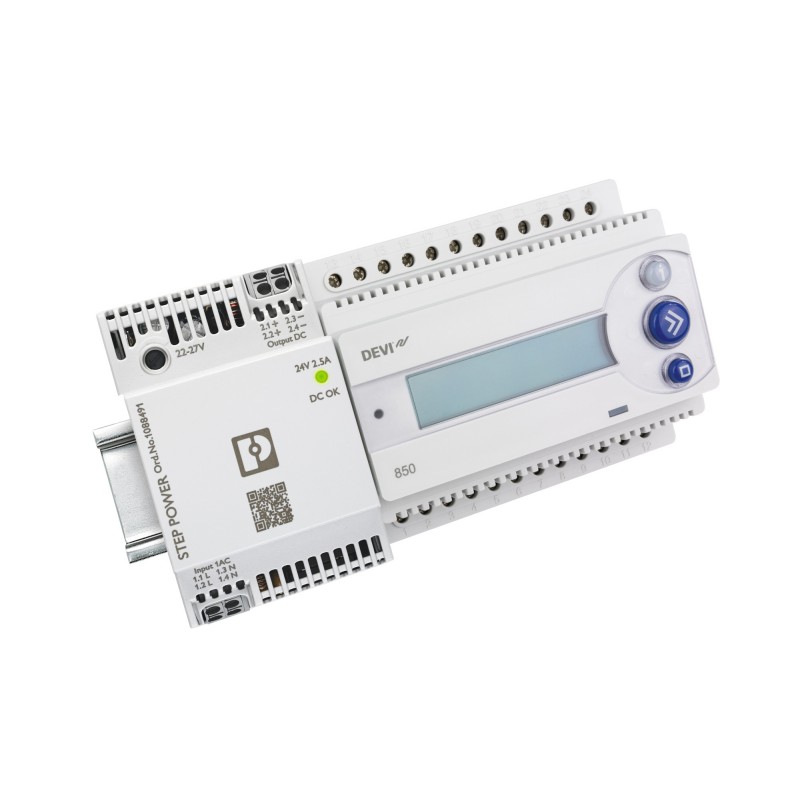

DANFOSS HEATING 140F1085 140F1085 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

140F1085 DANFOSS HEATING DEVIreg 850 IV Latin with PSU

Reference: 140F1085

Manufacturer: DANFOSS HEATING

Description:

DEVIreg 850 IV Latin with PSU
Thermostats, DEVIreg™ 850, Sensor type: w/o sensor, 15 A

Categories:

  • DANFOSS HEATING

Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS HEATING

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 185,53 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 10 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

Display type: 2x16-character illuminated display, Application: Asphalt ice and snow melting; Roof frost protection; Ground ice and snow melting

Product details

Gross weight0.828 Kilogram
Net weight0.82 Kilogram
Volume4.677 Liter
EAN5703466209264
TypeDEVIreg™ 850
Product groupThermostats
Gross weight0.828 Kilogram
Net weight0.82 Kilogram
Volume4.677 Liter
EAN5703466209264
TypeDEVIreg™ 850
Product groupThermostats

2-pole switchNo
Ambient temperature [°C] [max]40 °C
Ambient temperature [°C] [min]-10 °C
ApplicationAsphalt ice and snow melting
Roof frost protection
Ground ice and snow melting
ApprovalCE
Battery backupNo
CE evaluatedYes
Certification companyIntertek Semko
China RoHS complianceOut of scope
ColourWhite RAL 9010
Compatible frame systemNo
Contains batteriesNo
Depth [mm]53 mm
DescriptionDEVIreg™ 850 IV Latin with PSU
DIN mountingYes
Display (Yes/No)Yes
Display type2x16-character illuminated display
EEE category5 small equipment (any external dimension < 50 cm)
Element IP Class20
EU RoHS complianceYes with exemptions
EU RoHS exemption clause6(c)
Height [mm]86 mm
In scope of WEEEYes
Indicator typeLED
Inductive loadcos φ= 0.3 max 1A
Package depth [mm]280 mm
Package height [mm]72 mm
Package width [mm]232 mm
Product descriptionDEVIreg™ 850
Relay switch1-pole
Resistive load max [A]15 A
SCIP dossier no.7a73589d-5564-4385-abca-03fd7de34e2a
SCIP dossier product name"Temperature controller for and and snow melting systems"
Sensor failure monitoringYes
Sensor typew/o sensor
Standby power consumption [W] [Max]3 W
Storage temperature [°C] [Max]65 °C
Storage temperature [°C] [Min]-20 °C
Supply voltage [V] AC230 V
Supply voltage [V] AC [max]240 V
Supply voltage [V] AC [min]220 V
UL evaluatedOut of scope
UNSPSC CODE41112209
Warranty [Year]2
Warranty type2-year product warranty
Width [mm]23.5 mm
2-pole switchNo
Ambient temperature [°C] [max]40 °C
Ambient temperature [°C] [min]-10 °C
ApplicationAsphalt ice and snow melting
Roof frost protection
Ground ice and snow melting
ApprovalCE
Battery backupNo
CE evaluatedYes
Certification companyIntertek Semko
China RoHS complianceOut of scope
ColourWhite RAL 9010
Compatible frame systemNo
Contains batteriesNo
Depth [mm]53 mm
DescriptionDEVIreg™ 850 IV Latin with PSU
DIN mountingYes
Display (Yes/No)Yes
Display type2x16-character illuminated display
EEE category5 small equipment (any external dimension < 50 cm)
Element IP Class20
EU RoHS complianceYes with exemptions
EU RoHS exemption clause6(c)
Height [mm]86 mm
In scope of WEEEYes
Indicator typeLED
Inductive loadcos φ= 0.3 max 1A
Package depth [mm]280 mm
Package height [mm]72 mm
Package width [mm]232 mm
Product descriptionDEVIreg™ 850
Relay switch1-pole
Resistive load max [A]15 A
SCIP dossier no.7a73589d-5564-4385-abca-03fd7de34e2a
SCIP dossier product name"Temperature controller for and and snow melting systems"
Sensor failure monitoringYes
Sensor typew/o sensor
Standby power consumption [W] [Max]3 W
Storage temperature [°C] [Max]65 °C
Storage temperature [°C] [Min]-20 °C
Supply voltage [V] AC230 V
Supply voltage [V] AC [max]240 V
Supply voltage [V] AC [min]220 V
UL evaluatedOut of scope
UNSPSC CODE41112209
Warranty [Year]2
Warranty type2-year product warranty
Width [mm]23.5 mm

DATASHEET - PDF

Title
Size
Type
140F1085 140F1085 EN_140F1085.pdf
295 Kbytes
PDF CATALOGUE DANFOSS HEATING EN
11 Mbytes
