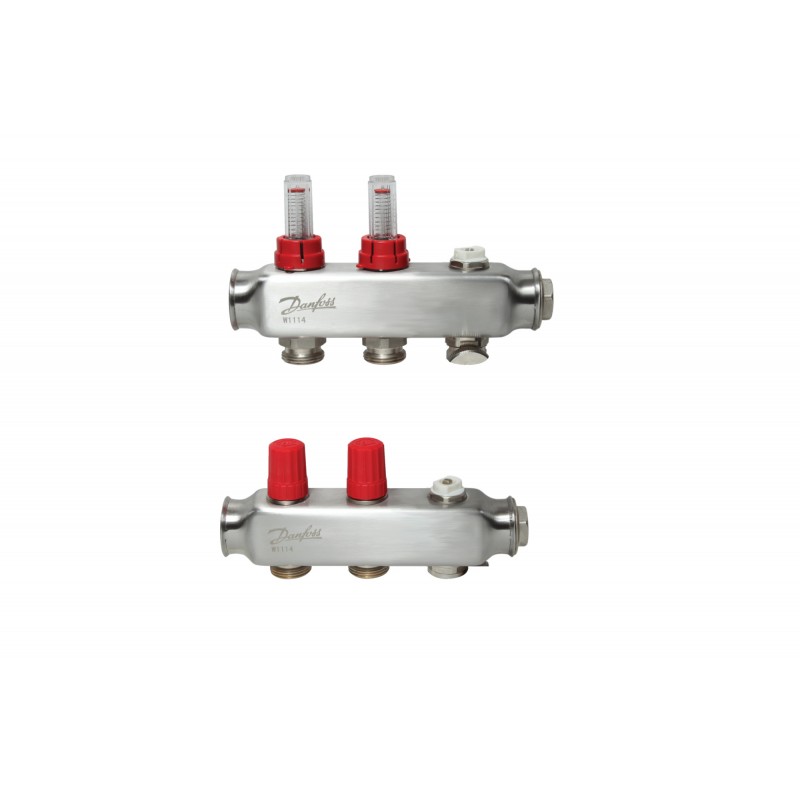

088U0752 DANFOSS HEATING SSM-2F, manifold set with flowmeters
Code: 088U0752
Manufacturer: DANFOSS HEATING
Description:
SSM-2F, manifold set with flowmeters
Manifold SSM-F, Stainless steel, Number of heating manifold connections [loops] [Max]: 2, 6 bar
Categories:
- DANFOSS HEATING
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS HEATING
- More Info
- Reviews
MORE INFO
SSM manifold 2+2 with flowmeter
Product details
| Gross weight | 1.85 Kilogram |
| Net weight | 1.828 Kilogram |
| Volume | 6.489 Liter |
| EAN | 5702425114830 |
| Type | Manifold SSM-F |
| Product group | Manifold & Manifold Kits |
| Gross weight | 1.85 Kilogram |
| Net weight | 1.828 Kilogram |
| Volume | 6.489 Liter |
| EAN | 5702425114830 |
| Type | Manifold SSM-F |
| Product group | Manifold & Manifold Kits |
| Bleed valve | Manual |
| China RoHS compliance | Out of scope |
| Description | SSM manifold 2+2 with flowmeter |
| Differential pressure [bar] [max] | 0.6 bar |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(c) |
| Flow temperature [°C] [Max] | 60 °C |
| Flowmeter | Yes |
| Material | Stainless steel |
| Number of heating manifold connections [loops] [Max] | 2 |
| Presetting | yes |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| SCIP dossier no. | 767ea979-0974-40f2-ab01-a21fd0747106 |
| SCIP dossier product name | SSM manifold set with flowmeters |
| Test pressure [bar] | 10 bar |
| UNSPSC CODE | 40141720 |
| Valve connection | Danfoss RA |
| Working pressure [bar] [Max] | 6 bar |
| Bleed valve | Manual |
| China RoHS compliance | Out of scope |
| Description | SSM manifold 2+2 with flowmeter |
| Differential pressure [bar] [max] | 0.6 bar |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(c) |
| Flow temperature [°C] [Max] | 60 °C |
| Flowmeter | Yes |
| Material | Stainless steel |
| Number of heating manifold connections [loops] [Max] | 2 |
| Presetting | yes |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| SCIP dossier no. | 767ea979-0974-40f2-ab01-a21fd0747106 |
| SCIP dossier product name | SSM manifold set with flowmeters |
| Test pressure [bar] | 10 bar |
| UNSPSC CODE | 40141720 |
| Valve connection | Danfoss RA |
| Working pressure [bar] [Max] | 6 bar |
