DANFOSS HEATING088L1602 DANFOSS HEATING ECfoil Mirror 0,708x0,524m 230V 70W

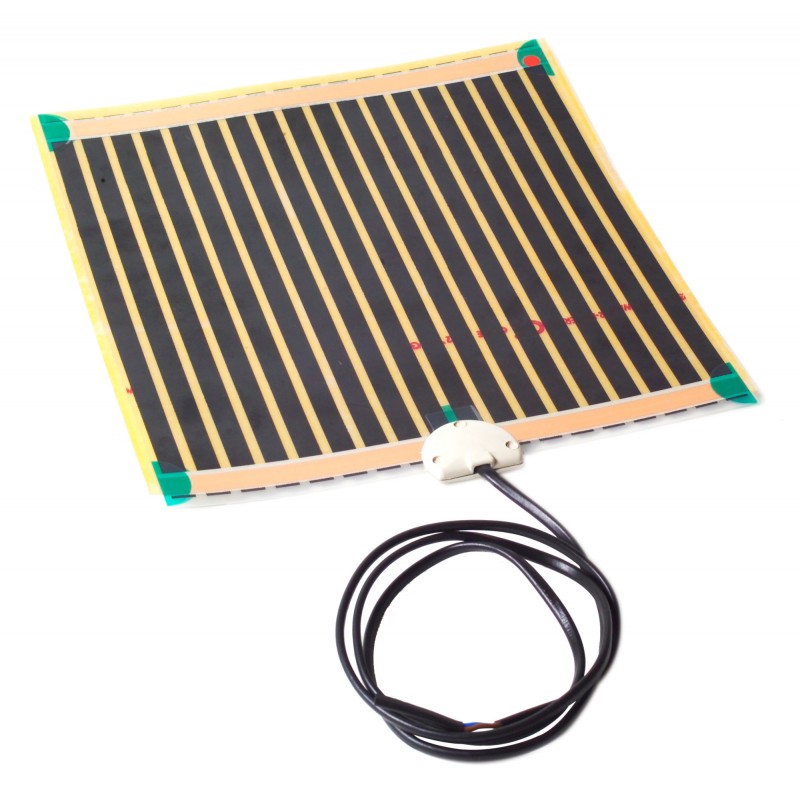

DANFOSS HEATING 088L1602 088L1602 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

088L1602 DANFOSS HEATING ECfoil Mirror 0,708x0,524m 230V 70W

Reference: 088L1602

Manufacturer: DANFOSS HEATING

Description:

ECfoil Mirror 0,708x0,524m 230V 70W
Danfoss, Mirror foils, 0.71 m x 0.5 m, Supply voltage [V] AC: 230, 70 W

Categories:

  • DANFOSS HEATING

Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS HEATING

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 141,22 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 10 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

Application: Other heating

Product details

Gross weight0.754 Kilogram
Net weight0.711 Kilogram
Volume5.031 Liter
EAN5703466180877
TypeMirror foils
Product groupOther Heating Products
Gross weight0.754 Kilogram
Net weight0.711 Kilogram
Volume5.031 Liter
EAN5703466180877
TypeMirror foils
Product groupOther Heating Products

ApplicationOther heating
ApprovalCE
BrandDanfoss
Cable resistance [Ohm]755 Ohm
CE evaluatedYes
Certification companyCE
China RoHS complianceOut of scope
Cold leadYes
Cold lead conductor quantity2
Cold lead length [m]1 m
Cold lead quantity1
Cold lead size [mm²]0.5 mm²
Conductor insulationMirror foil
Contains batteriesNo
Coverage area [m²]0.37 m²
Cut to lengthNo
DescriptionECfoil mirror 70W 708x524mm
Element IP Class44
EU RoHS complianceYes
Heating output [W]70 W
Heating principleSerial resistive
Installation temperature [°C] [Min]5 °C
Mat length [m]0.71 m
Mat output [W/m²]200 W/m²
Mat width [m]0.5 m
Operating temperature [°C] [max]80 °C
Outer sheathPolyethylene
Package depth [mm]720 mm
Package height [mm]10 mm
Package width [mm]534 mm
Product descriptionDanfoss Mirror foil
Supply voltage [V] AC230 V
Thickness [mm]0.8 mm
UL evaluatedOut of scope
UNSPSC CODE40101840
UV ProtectedNo
Warranty [Year]2
Warranty type2-year product warranty
ApplicationOther heating
ApprovalCE
BrandDanfoss
Cable resistance [Ohm]755 Ohm
CE evaluatedYes
Certification companyCE
China RoHS complianceOut of scope
Cold leadYes
Cold lead conductor quantity2
Cold lead length [m]1 m
Cold lead quantity1
Cold lead size [mm²]0.5 mm²
Conductor insulationMirror foil
Contains batteriesNo
Coverage area [m²]0.37 m²
Cut to lengthNo
DescriptionECfoil mirror 70W 708x524mm
Element IP Class44
EU RoHS complianceYes
Heating output [W]70 W
Heating principleSerial resistive
Installation temperature [°C] [Min]5 °C
Mat length [m]0.71 m
Mat output [W/m²]200 W/m²
Mat width [m]0.5 m
Operating temperature [°C] [max]80 °C
Outer sheathPolyethylene
Package depth [mm]720 mm
Package height [mm]10 mm
Package width [mm]534 mm
Product descriptionDanfoss Mirror foil
Supply voltage [V] AC230 V
Thickness [mm]0.8 mm
UL evaluatedOut of scope
UNSPSC CODE40101840
UV ProtectedNo
Warranty [Year]2
Warranty type2-year product warranty
