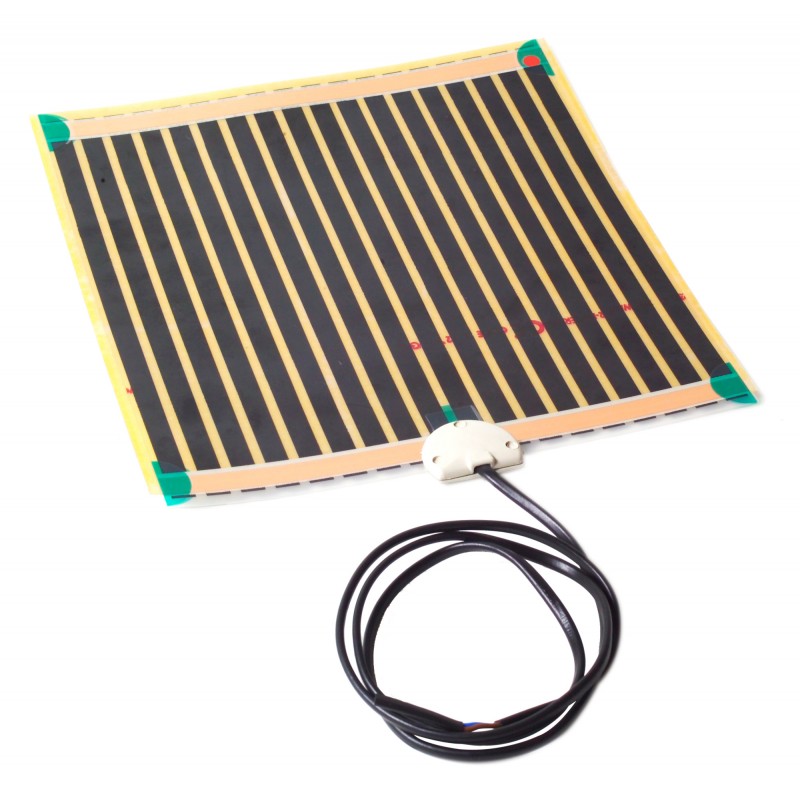

088L1601 DANFOSS HEATING ECfoil Mirror 0,410x0,524m 230V 40W
088L1601
DANFOSS HEATING
ECfoil Mirror 0,410x0,524m 230V 40W
Danfoss, Mirror foils, 0.41 m x 0.5 m, Supply voltage [V] AC: 230, 40 W
Home > DANFOSS HEATING
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS HEATING
Best sellers
▲More info
▲Application: Other heating
Product details
| Gross weight | 0.525 Kilogram |
| Net weight | 0.453 Kilogram |
| Volume | 2.951 Liter |
| EAN | 5703466180860 |
| Type | Mirror foils |
| Product group | Other Heating Products |
| Gross weight | 0.525 Kilogram |
| Net weight | 0.453 Kilogram |
| Volume | 2.951 Liter |
| EAN | 5703466180860 |
| Type | Mirror foils |
| Product group | Other Heating Products |
| Application | Other heating |
| Approval | CE |
| Brand | Danfoss |
| Cable resistance [Ohm] | 1322 Ohm |
| CE evaluated | Yes |
| Certification company | CE |
| China RoHS compliance | Yes |
| Cold lead | Yes |
| Cold lead conductor quantity | 2 |
| Cold lead length [m] | 1 m |
| Cold lead quantity | 1 |
| Cold lead size [mm²] | 0.5 mm² |
| Conductor insulation | Mirror foil |
| Contains batteries | No |
| Coverage area [m²] | 0.22 m² |
| Cut to length | No |
| Description | ECfoil mirror 40W 410x524mm |
| Element IP Class | 44 |
| EU RoHS compliance | Yes |
| Heating output [W] | 40 W |
| Heating principle | Serial resistive |
| Installation temperature [°C] [Min] | 5 °C |
| Length [m] | 0.41 m |
| Mat length [m] | 0.41 m |
| Mat output [W/m²] | 200 W/m² |
| Mat width [m] | 0.5 m |
| Operating temperature [°C] [max] | 80 °C |
| Outer sheath | Polyethylene |
| Package depth [mm] | 534 mm |
| Package height [mm] | 10 mm |
| Package width [mm] | 420 mm |
| Product description | Danfoss Mirror foil |
| Supply voltage [V] AC | 230 V |
| Thickness [mm] | 0.8 mm |
| UL evaluated | Out of scope |
| UV Protected | No |
| Warranty [Year] | 2 |
| Warranty type | 2-year product warranty |
| Application | Other heating |
| Approval | CE |
| Brand | Danfoss |
| Cable resistance [Ohm] | 1322 Ohm |
| CE evaluated | Yes |
| Certification company | CE |
| China RoHS compliance | Yes |
| Cold lead | Yes |
| Cold lead conductor quantity | 2 |
| Cold lead length [m] | 1 m |
| Cold lead quantity | 1 |
| Cold lead size [mm²] | 0.5 mm² |
| Conductor insulation | Mirror foil |
| Contains batteries | No |
| Coverage area [m²] | 0.22 m² |
| Cut to length | No |
| Description | ECfoil mirror 40W 410x524mm |
| Element IP Class | 44 |
| EU RoHS compliance | Yes |
| Heating output [W] | 40 W |
| Heating principle | Serial resistive |
| Installation temperature [°C] [Min] | 5 °C |
| Length [m] | 0.41 m |
| Mat length [m] | 0.41 m |
| Mat output [W/m²] | 200 W/m² |
| Mat width [m] | 0.5 m |
| Operating temperature [°C] [max] | 80 °C |
| Outer sheath | Polyethylene |
| Package depth [mm] | 534 mm |
| Package height [mm] | 10 mm |
| Package width [mm] | 420 mm |
| Product description | Danfoss Mirror foil |
| Supply voltage [V] AC | 230 V |
| Thickness [mm] | 0.8 mm |
| UL evaluated | Out of scope |
| UV Protected | No |
| Warranty [Year] | 2 |
| Warranty type | 2-year product warranty |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE DANFOSS HEATING EN .pdf | 11 Mbytes |
|
| 088L1601 088L1601 ES_088L1601.pdf | 208 Kbytes |
|
