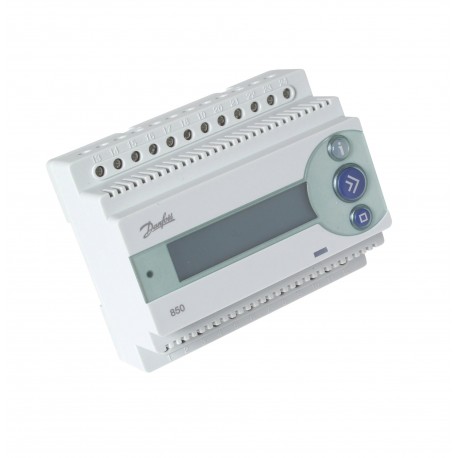

088L0449 DANFOSS HEATING ECtemp 850 IV Latin with PSU
088L0449
DANFOSS HEATING
ECtemp 850 IV Latin with PSU
Thermostats, ECtemp 850, Sensor type: w/o sensor, 15 A
Home > DANFOSS HEATING
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS HEATING
Best sellers
▲More info
▲Display type: 2x16-character illuminated display, Application: Asphalt ice and snow melting; Roof frost protection; Ground ice and snow melting
Product details
| Gross weight | 0.688 Kilogram |
| Net weight | 0.653 Kilogram |
| Volume | 4.508 Liter |
| EAN | 5703466130391 |
| Type | ECtemp 850 |
| Product group | Thermostats |
| Gross weight | 0.688 Kilogram |
| Net weight | 0.653 Kilogram |
| Volume | 4.508 Liter |
| EAN | 5703466130391 |
| Type | ECtemp 850 |
| Product group | Thermostats |
| 2-pole switch | No |
| Ambient temperature [°C] [max] | 40 °C |
| Ambient temperature [°C] [min] | -10 °C |
| Application | Asphalt ice and snow melting Ground ice and snow melting Roof frost protection |
| Approval | CE |
| Battery backup | No |
| CE evaluated | Yes |
| Certification company | Intertek Semko |
| China RoHS compliance | Yes |
| Colour | White RAL 9010 |
| Compatible frame system | No |
| Contains batteries | No |
| Depth [mm] | 53 mm |
| Description | ECtemp 850 IV Latin with PSU |
| DIN mounting | Yes |
| Display (Yes/No) | Yes |
| Display type | 2x16-character illuminated display |
| EEE category | 5 small equipment (any external dimension < 50 cm) |
| Element IP Class | 20 |
| EU RoHS compliance | Yes |
| Height [mm] | 86 mm |
| In scope of WEEE | Yes |
| Indicator type | LED |
| Inductive load | cos φ= 0.3 max 1A |
| Package depth [mm] | 280 mm |
| Package height [mm] | 72 mm |
| Package width [mm] | 232 mm |
| Relay switch | 1-pole |
| Resistive load max [A] | 15 A |
| SCIP dossier no. | 7a73589d-5564-4385-abca-03fd7de34e2a |
| SCIP dossier product name | "Temperature controller for and and snow melting systems" |
| Sensor failure monitoring | Yes |
| Sensor type | w/o sensor |
| Standby power consumption [W] [Max] | 3 W |
| Storage temperature [°C] [Max] | 65 °C |
| Storage temperature [°C] [Min] | -20 °C |
| Supply voltage [V] AC | 230 V |
| Supply voltage [V] AC [max] | 240 V |
| Supply voltage [V] AC [min] | 220 V |
| UL evaluated | Out of scope |
| UNSPSC CODE | 41112209 |
| Warranty [Year] | 2 |
| Warranty type | 2-year product warranty |
| Width [mm] | 23.5 mm |
| 2-pole switch | No |
| Ambient temperature [°C] [max] | 40 °C |
| Ambient temperature [°C] [min] | -10 °C |
| Application | Asphalt ice and snow melting Ground ice and snow melting Roof frost protection |
| Approval | CE |
| Battery backup | No |
| CE evaluated | Yes |
| Certification company | Intertek Semko |
| China RoHS compliance | Yes |
| Colour | White RAL 9010 |
| Compatible frame system | No |
| Contains batteries | No |
| Depth [mm] | 53 mm |
| Description | ECtemp 850 IV Latin with PSU |
| DIN mounting | Yes |
| Display (Yes/No) | Yes |
| Display type | 2x16-character illuminated display |
| EEE category | 5 small equipment (any external dimension < 50 cm) |
| Element IP Class | 20 |
| EU RoHS compliance | Yes |
| Height [mm] | 86 mm |
| In scope of WEEE | Yes |
| Indicator type | LED |
| Inductive load | cos φ= 0.3 max 1A |
| Package depth [mm] | 280 mm |
| Package height [mm] | 72 mm |
| Package width [mm] | 232 mm |
| Relay switch | 1-pole |
| Resistive load max [A] | 15 A |
| SCIP dossier no. | 7a73589d-5564-4385-abca-03fd7de34e2a |
| SCIP dossier product name | "Temperature controller for and and snow melting systems" |
| Sensor failure monitoring | Yes |
| Sensor type | w/o sensor |
| Standby power consumption [W] [Max] | 3 W |
| Storage temperature [°C] [Max] | 65 °C |
| Storage temperature [°C] [Min] | -20 °C |
| Supply voltage [V] AC | 230 V |
| Supply voltage [V] AC [max] | 240 V |
| Supply voltage [V] AC [min] | 220 V |
| UL evaluated | Out of scope |
| UNSPSC CODE | 41112209 |
| Warranty [Year] | 2 |
| Warranty type | 2-year product warranty |
| Width [mm] | 23.5 mm |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE DANFOSS HEATING EN .pdf | 11 Mbytes |
|
| 088L0449 ES_088L0459.pdf | 471 Kbytes |
|
